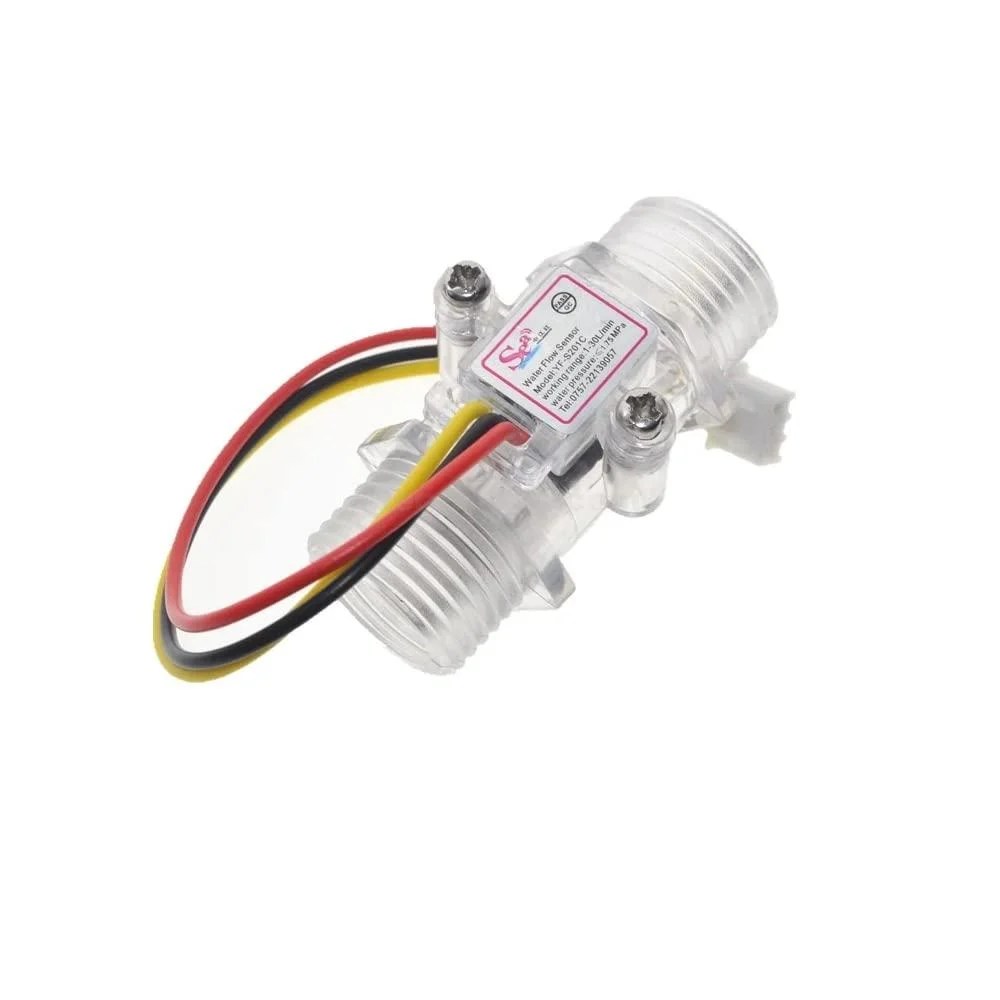

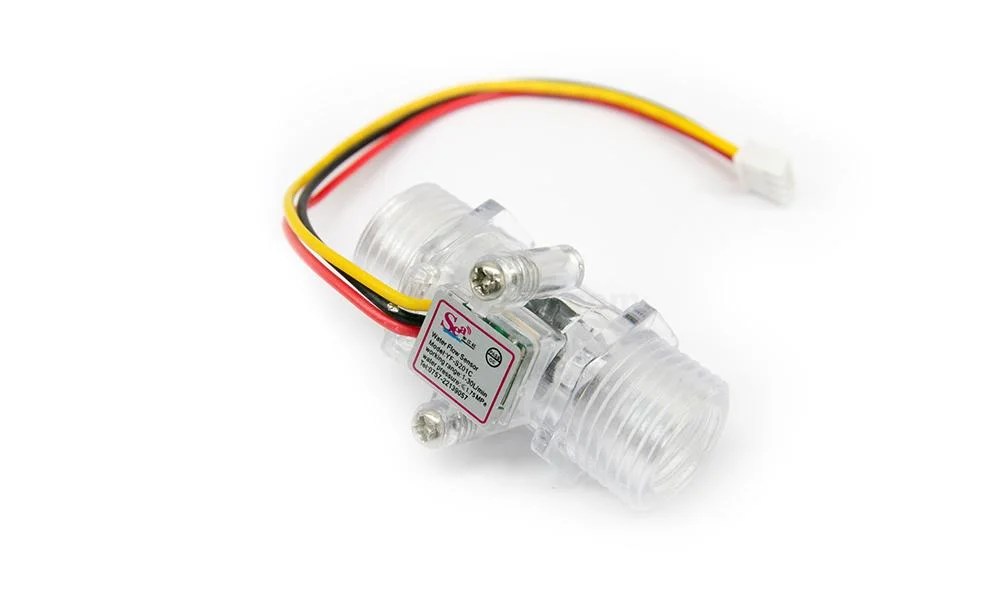

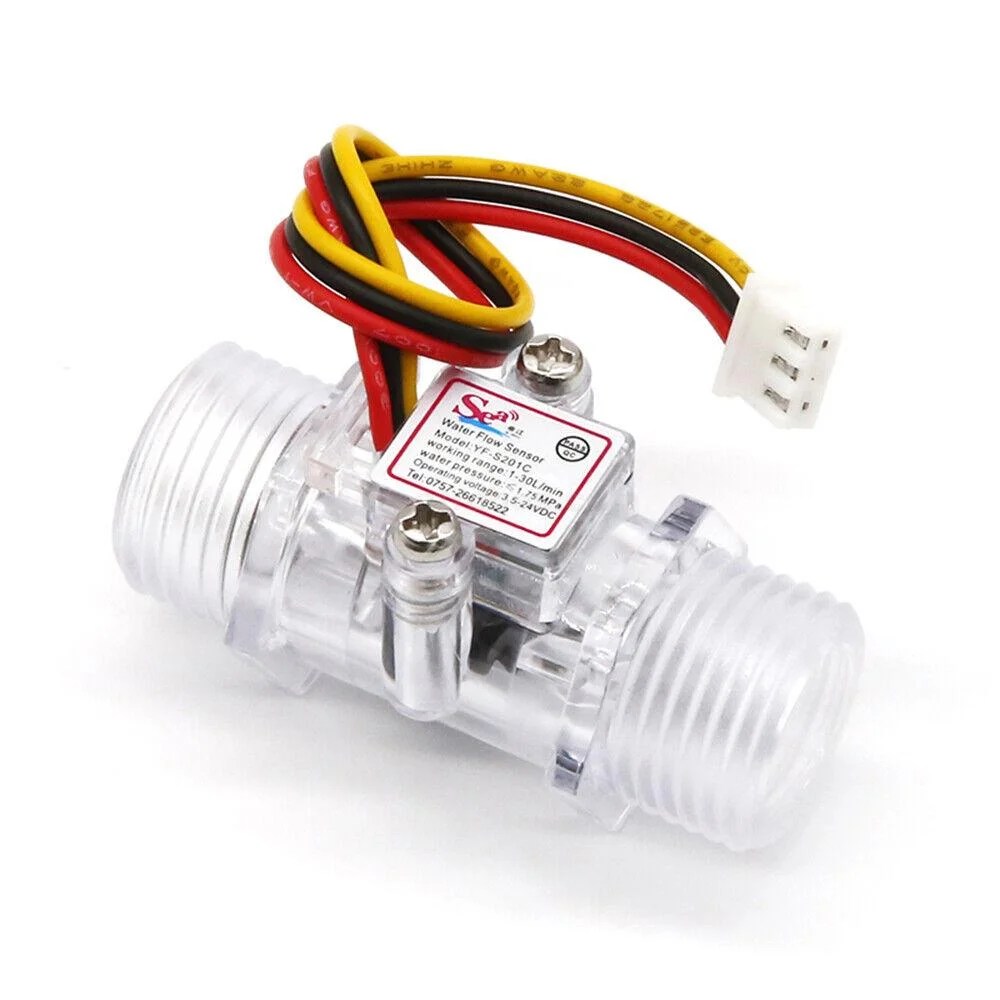

Water flow meter model YF-S201C, pipe size 1/2” supports flow rate range 1-30 L/min, suitable for a variety of applications. For example, it measures the flow of coolant in CNC machines or in laser cutters, etc. The function of a water flow sensor is to allow water to flow through the internal impeller to cause rotation. The hall effect sensor detects the rotation and sends a pulse signal. Come out every turn.
Product parameters:
Output signal: default output NPN pulse signal
Model: YF-S201C
Interface size: 4 points (G1/2)
Working voltage range: DC5~18V
Inner diameter/outer diameter: inner diameter water inlet 13.3mm water outlet 14.5mm/outer diameter 20.1mm
Thread length: 12.7mm
Material: transparent PC, black nylon
Water pressure resistance: < 1.75MPa
Output pulse high level:>DC 4.7V (input voltage DC 5V) output pulse low level <DC0.5V (input voltage DC5V)
Insulation resistance:> 100 MO
Flow range: [in 1~ 25LMIN]±3%
Airtightness: Close each hole, add 1.7Mpa water pressure test for 1 minute without leakage and deformation
Flow pulse characteristic (Hz)=[ 5.0* Q]±5% (Q-flow L/min )
Datasheet:
https://drive.google.com/file/d/1oc6ZXw3XYqaeTijzRDEt-vCFnqux0wKu/view?usp=sharing
Connection of Water Flow Meter Model YF-S201C:
It has 3 wires:
Ground
VCC – supply voltage from 5 V to 24 V
Signal-pulse output signal
