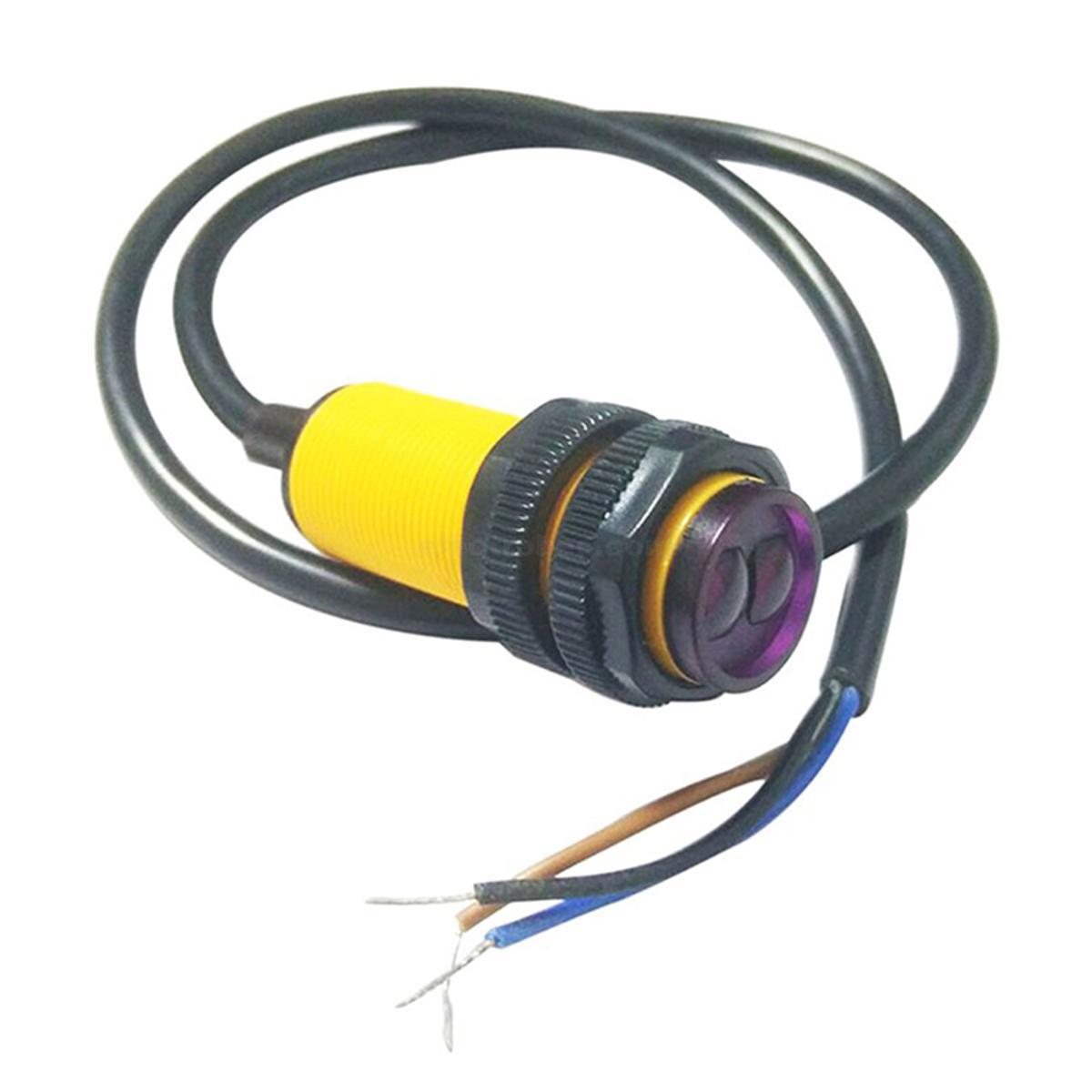

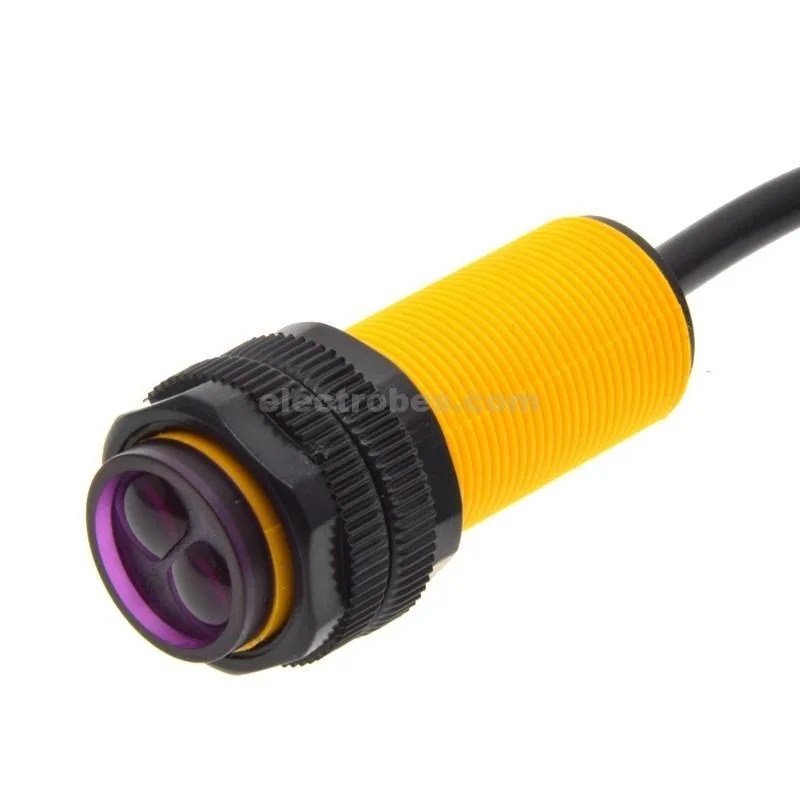

E18-D80NK is a set of transmitter and receiver in one of the photoelectric sensor. Detection distance can be adjusted according to requirements. The sensor has many advantages such as long distance detection, low visible light interference, cheap price, easy assembly, and easy to use. It can be widely used in robot obstacle avoidance, pipeline line piece and many other automation products.
Application:
Automatic production line of goods counting equipment
Multi-function reminder
Take the maze robot
Technical Parameters:
Output Current DC / SCR / Relay Output: 100mA / 5V power supply
Current consumption DC <25mA
Response time <2ms
Pointing angle: ≤ 15 °, the effective distance 3-80 CM adjustable
Detection of objects: transparent or opaque body
Working temperature: -25°C ~ +55°C
Standard detection object: the following incandescent 3000LX below 10000LX sunlight
Housing material: plastic
Electrical Characteristics:
Sensing range: 3-80cm
Sensing object: Translucency, opaque
Supply voltage: DC5V
Output operation: Normally open (O)
Output: DC three-wire system (NPN)

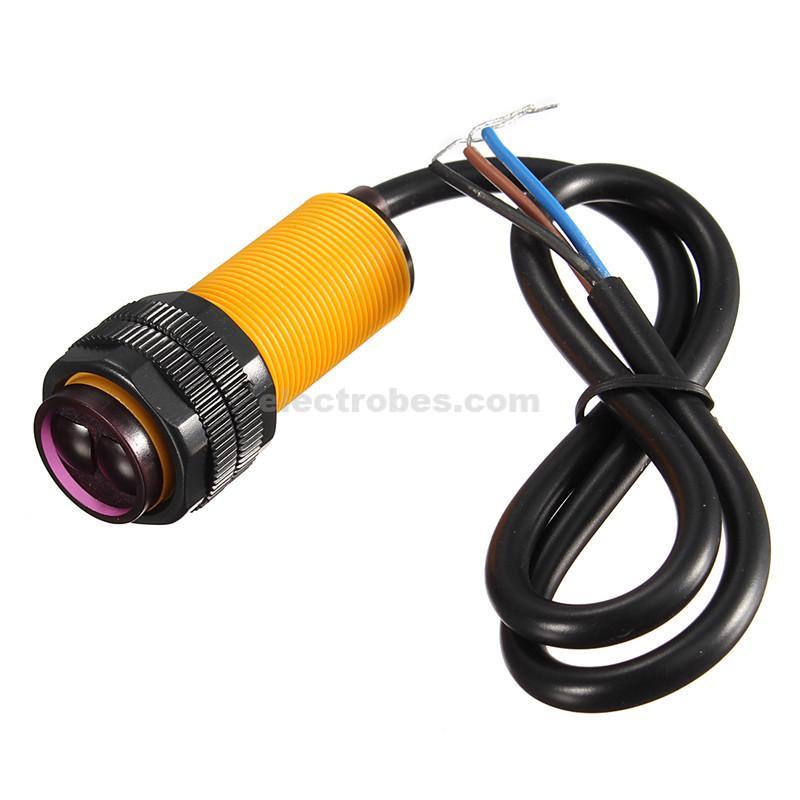

Pin Definitions:
Red -> positive
Black —-> signal
Blue -> negative
