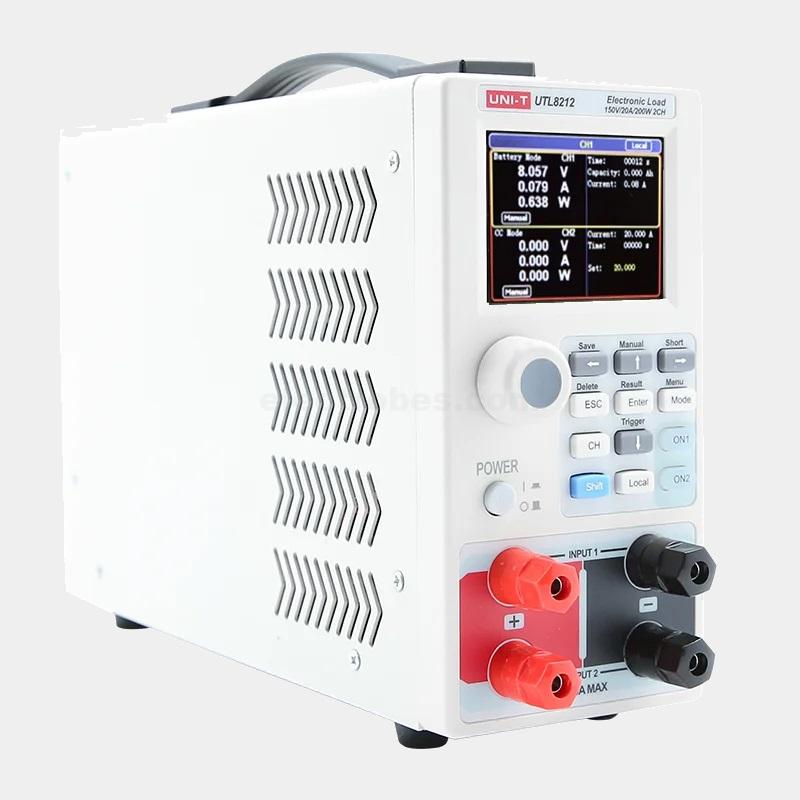

UNI-T UTL8212+ High-Precision Compact DC Electronic Load Tester Dual Channel 400W Power Supply Current Detector

UNI-T UTL8212+ High-Precision Compact DC Electronic Load Tester Dual Channel 20A 400W Power Supply Current Detector
The UTL8200 series electronic load is equipped with a 2.8-inch LCD display, which is convenient and simple to operate, stylish and generous, stable in operation, has a wide power measurement range, voltage and current measurement speeds up to 40kHz, and a test resolution of up to 1mV/1mA, with rich test functions and modes, and standard RS-232C communication interface, flexibly meet various on-site test conditions, and realize seamless connection with automated production lines and automatic test systems (ATS). With a wide range of power measurement, voltage and current measurement speed up to 40kHz, test resolution up to 1mV/1mA,the UTL8200 series is a cost-effective DC load with performance specifications that rival any instrument in its class.
Features:

4 basic modes: CC/CV/CR/CP
Test resolution can reach 1mV/1mA
Up to 40kHz voltage and current testing speed
Multi-mode battery discharging test
List mode supports autotest
Independent short-circuit test
Standard RS-232C interface and SCPI protocol are supported
Protections of over-voltage/under-voltage/over-current/over-power/over-temperature/anti-reverse connection
The 2.8-inch LCD is intuitive and easy to understand
UTL8212 supports dual-channel completely independent testing

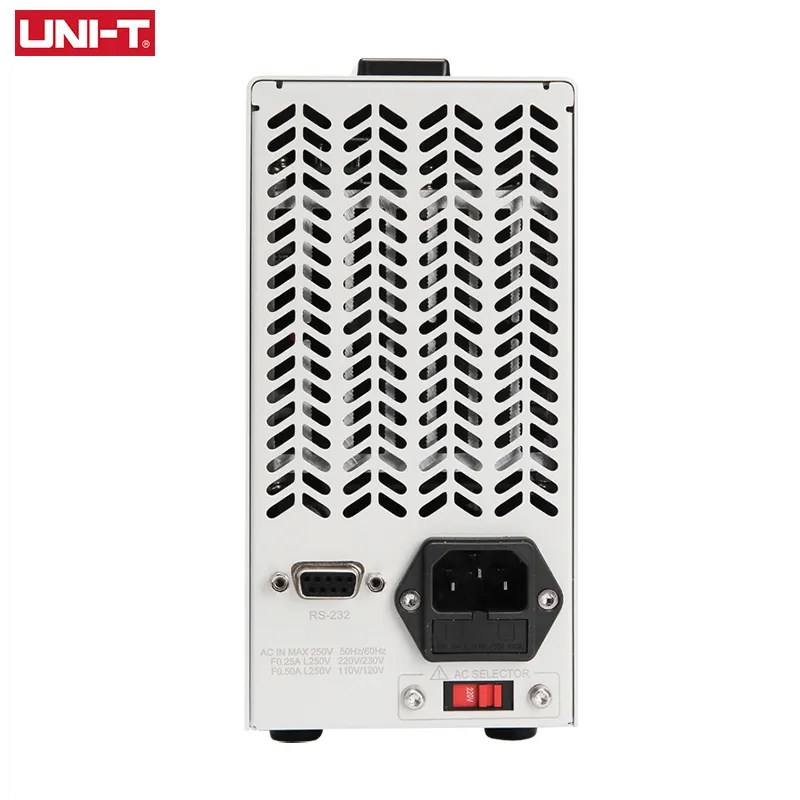

Standard RS232 communication interface and host computer software, which can realize remote control

Specification:

Model: UTL8212
Number of channels: Dual channel(UTL8212)
Input ratings Voltage:0~150V
Input ratings Current: 0~2A, 0~20A(UTL8212)
Input ratings Power: 2×200W(UTL8212)
Basic operation mode: CC/CV/CR/CP
CV mode Range: 0-150V(UTL8212)
CV mode Resolution: 1 mV, 10 mV
CV mode Accuracy: ±(0.05%+0.1%FS)
CC mode Range: 0~2A,0~20A(UTL8212)
CC mode Resolution: 1mA,10mA
CC mode Accuracy: ±(0.05%+0.05%FS)
CR mode Range: 0.05Ω~7.5KΩ
CR mode Resolution: 16bits
CR mode Accuracy: ±(0.1%+0.5%F3)
CP mode Range: 200W(UTL8212)
CP mode Resolution: 10mW
CP mode Accuracy: 0.1%+0.5%FS
Test function: Dynamic test, list mode, battery test
Multiple protections such as over Protective function voltage, low voltage, over current, overpower, overheat, anti-reverse
System settings: Chinese and English switching, key tone setting
Data storage: Memory storage 60 groups
Communication interface: RS232,SCPI protocol
Operating temperature: 0℃~40C
storage temperature: -10℃~60℃
Working humidity: 20%~80%(Non-condensing)
Storage humidity: 20%~80%(Non-condensing)
Working altitude: ≤2000m

Package includes:
1 x DC Electronic Load Tester
1 x Power cable
