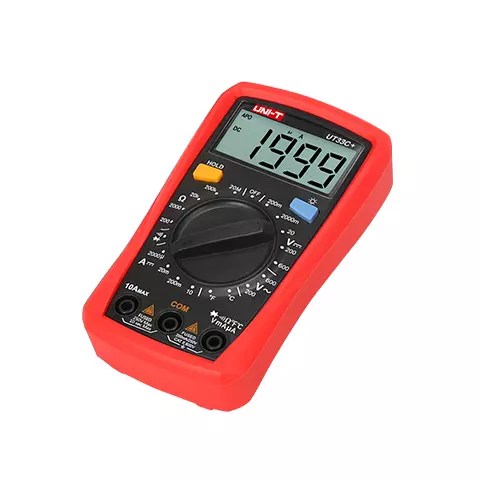

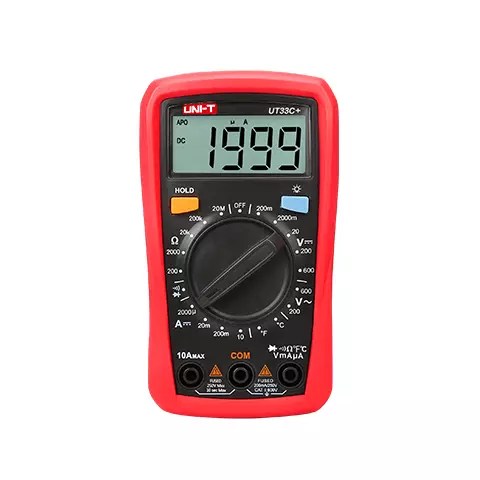

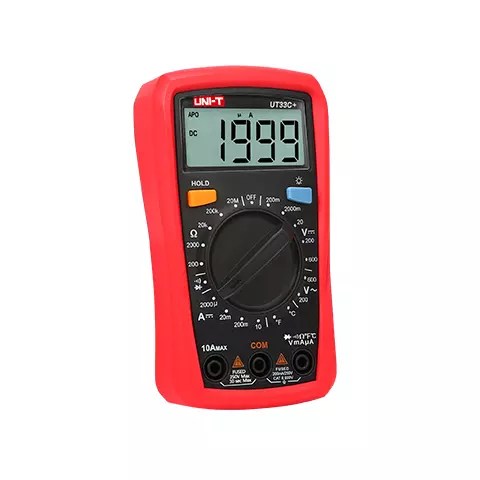

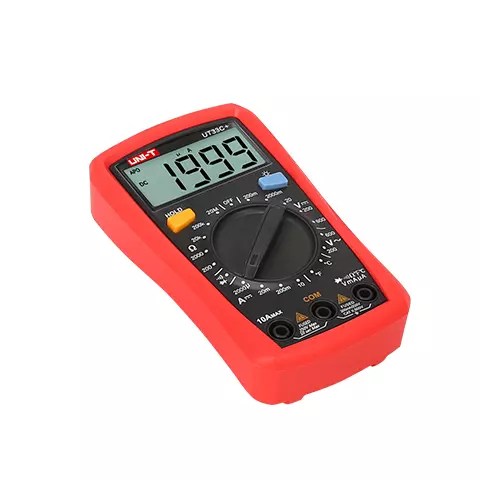

UNI-T UT33C+ Palm Size Digital Multimeter DMM

UNI-T UT33C+ Palm Size Digital Multimeter DMM
UNI-T UT33C series is palm size handheld portable digital multimeter DMM that measures DC/AC Voltage, DC Current, Temperature and Resistance with accuracy. It has an unique Data Hold function, not available in other palm size meters. Low cost and convenient for everyday test.

Special Functions Of UT 33C PLUS Digital Multimeter:

Diode
Continuity Buzzer
Data Hold
Display Backlight
Low Battery Display
Input Impedance for DC
Voltage Measurement: Around 10MW
Max. Display: 1999


Features of UNI-T UT33C+ DMM:

Functions:

AC/DC voltage and DC current
resistance
temperature (ºC and ºF)
diode test
continuity test (with buzzer)

Manual range selection
Data Hold function
Test probe holder
Backlit LCD
Auto power off
Auto backlight off


Technical Specifications of UT 33C

Function
Range
Accuracy

DC voltage
200 mV/2 V/20 V/200 V/600 V
±(0.5%＋2)

AC voltage
200 V/600 V
±(1.2%+3)

DC current
2000 μA/20 mA/200 mA/10 A
±(1%+2)

Resistance
200 Ω/2 kΩ/20 kΩ/200 kΩ/20 MΩ
±(0.8%+2)

Temperature
-40℃~1000℃
±(1%+4)

-40℉~1832℉
±(1.5%+5)

General Specifications

Display
LCD, 2000 count

Power
1.5V battery (R03) × 2 pcs.

Drop test
2 m

Dimensions
134 mm × 77 mm × 47 mm

Weight
206 g (with batteries)



User Manual
  Download UNI-T UT33C+ user manual

Package Contents

1 x Pocket Digital Multimeter UNI-T UT33C+
2 x Test Leads
1 x K-type Thermocouple
1 x Protective Case
1 x User Manual
