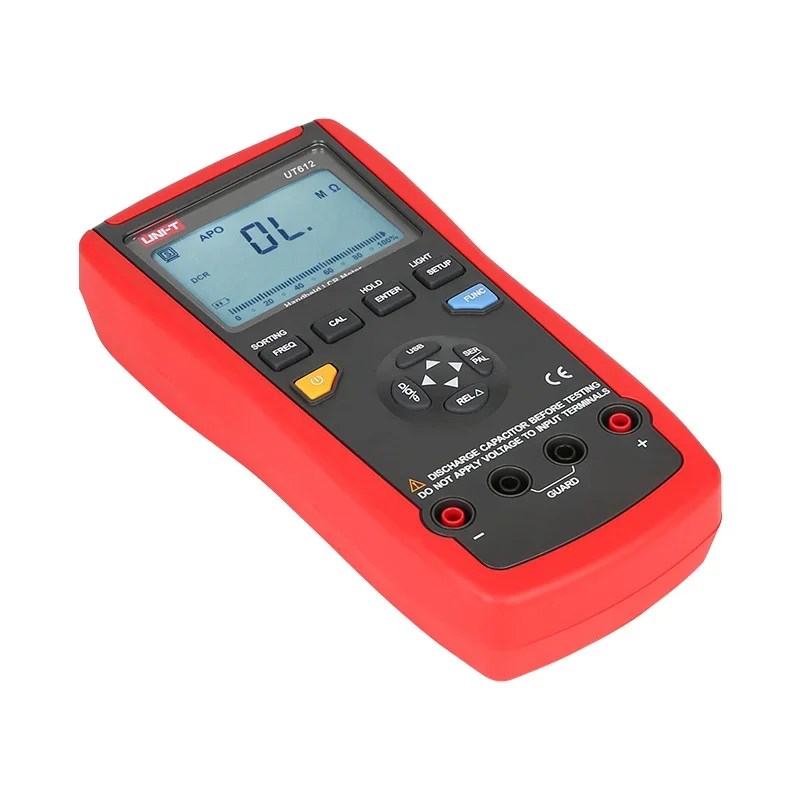

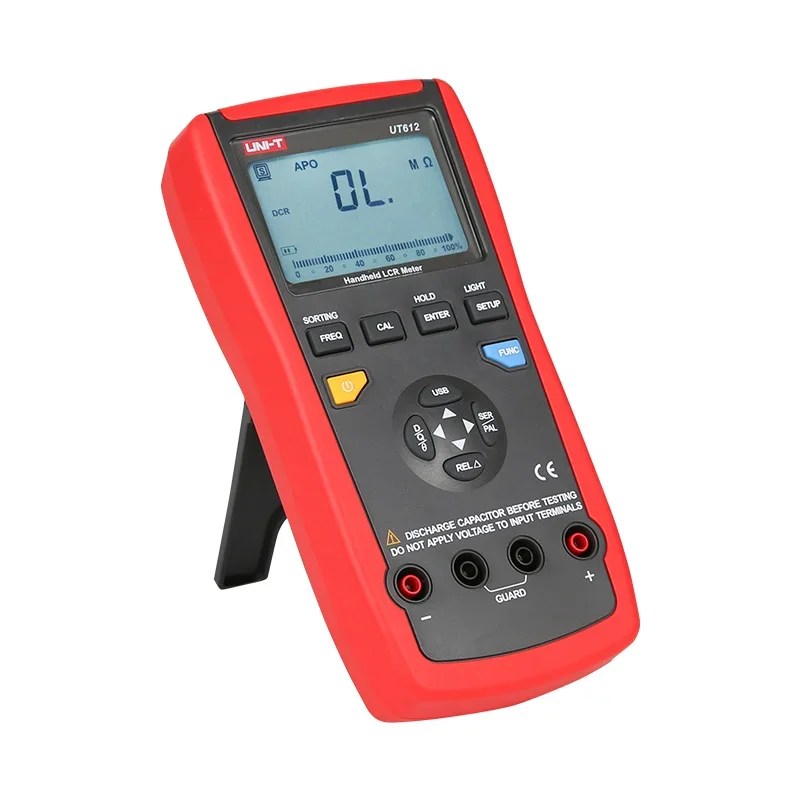

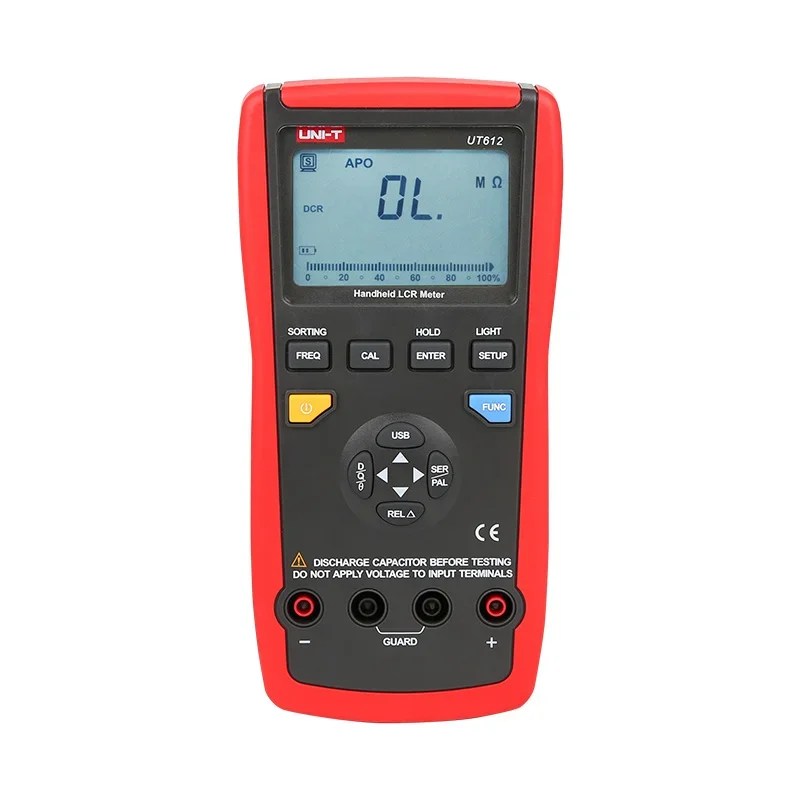

UNI-T UT612 LCR Meter DMM Multimeter Resistance, Capacitance, Inductance Meter

UNI-T UT612 LCR Meter DMM Digital Multimeter Resistance, Capacitance, Inductance Meter
Description:
The UNI-T UT612 LCR Meter is a high-precision handheld instrument designed to measure inductance (L), capacitance (C), resistance (R), and related parameters with excellent accuracy and reliability.
Built for engineers, technicians, and electronics professionals, the UT612 supports multi-frequency testing, series/parallel measurement modes, and advanced parameter analysis such as ESR, dissipation factor, and phase angle.
Its 20,000-count display, USB data logging capability, and wide measurement range make it an ideal solution for production lines, electronic maintenance, component testing, and laboratory applications.
Key Features:
 High-Precision LCR Measurement

Accurately measures inductance, capacitance, and resistance
Suitable for component testing and circuit diagnostics

 Multi-Parameter Analysis

Measures advanced parameters including:

ESR (Equivalent Series Resistance)
D (Dissipation factor)
Q (Quality factor)
θ (Phase angle)

 Multi-Frequency Testing

5 selectable frequencies (100Hz–100kHz)
Enables accurate testing under different conditions

 Series & Parallel Measurement Modes

Flexible testing for different component types
Automatically adapts to circuit configuration

 USB Data Logging & PC Interface

Stores up to 60,000 measurement records
Allows real-time monitoring and data analysis on PC

  Large 20,000 Count Display

High-resolution LCD with analog bar graph
Displays multiple parameters simultaneously

 Smart Functions

Auto LCR identification
Auto range selection
Relative measurement mode
Data hold function

 Calibration & Comparison Tools

Built-in calibration for improved accuracy
Comparator function for component sorting

 User-Friendly Design

Backlit display for low-light use
Auto power-off and low battery indication
Portable and lightweight design

Specifications:

Specification
Details

Model
UNI-T UT612

Display Count
20,000 (main) / 2,000 (D/Q)

Inductance Range
20µH – 2000H ±(0.5%+5)

Capacitance Range
200pF – 20mF ±(0.5%+5)

Resistance Range
20Ω – 200MΩ ±(0.3%+5)

Test Frequencies
100Hz / 120Hz / 1kHz / 10kHz / 100kHz

Test Voltage
0.6 Vrms

Measurement Parameters
L, C, R, DCR, Q, D, θ, ESR

Measurement Mode
Series / Parallel

Output Impedance
120Ω

Power Supply
9V Battery or USB

Display Size
40mm × 63mm

Dimensions
96 × 193 × 47 mm

Weight
Approx. 374g

Data Logging
Up to 60,000 records via USB
