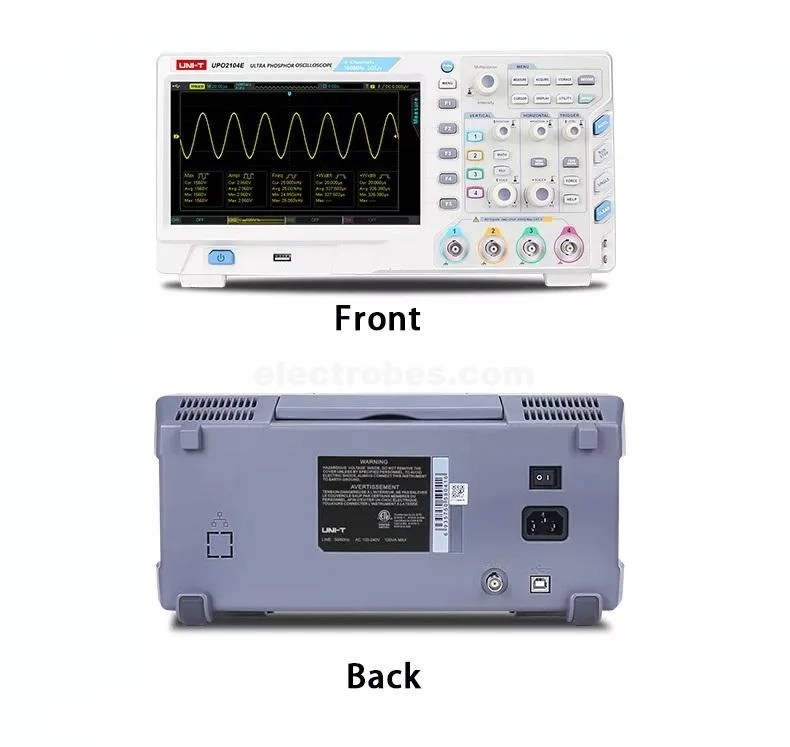

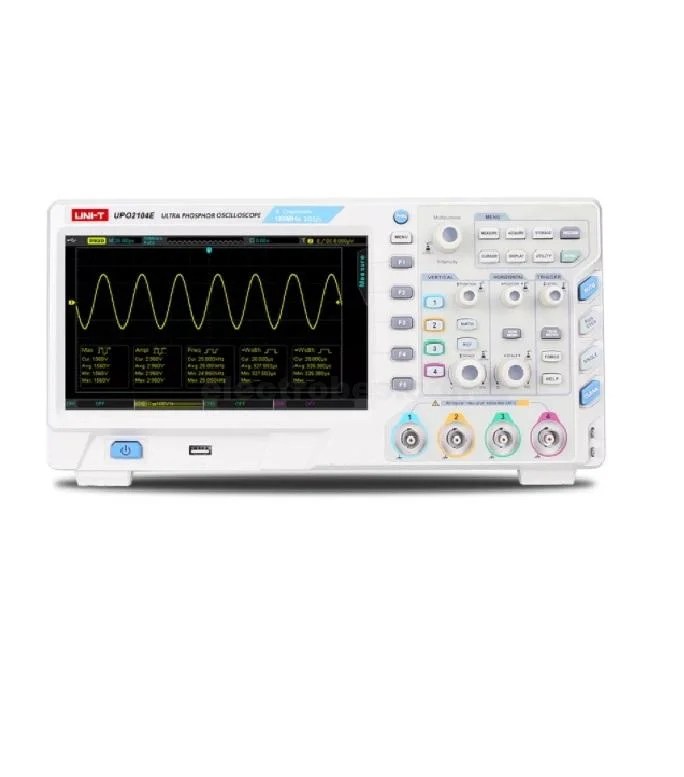

UNI-T UPO2104E Ultra Phosphor Digital Oscilloscopes 4 channel 100MHz 8inch LCD 1GS/s
Description:
The UPO2000E Series offers unprecedented value in customer applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities.
The Series is available in 70MHz and 100MHz bandwidth and 2 or 4 analog channels.
It adopts UNI-T UPO visualization technology, has a maximum sample rate of 1GSa/s and a standard memory depth of 56Mpts.
The UNI-T UPO2104E is a 4-channel oscilloscope for high performance and is a direct successor to the UPO2104CS. Compared to its predecessor, a number of specifications have been changed, for example the 2104E has a memory depth of 56 Mpts and the waveform capture rate has been increased to 80,000 wfms/s. What makes this scope really unique is that it can use a separate time base per channel. Furthermore, the scope has a large number of functions and the trigger options have been drastically expanded.

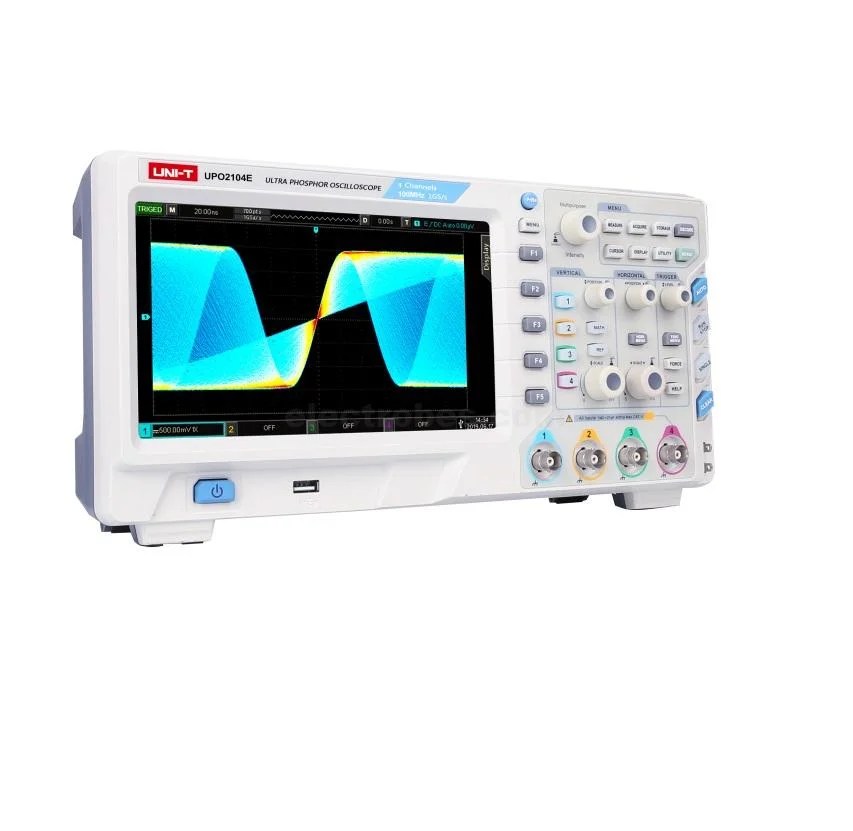

The UPO-2104E also comes with a USB interface for storing signals and measurement results. It’s large 8″ LCD screen and low noise floor displays all signals in highly detailed view. The oscilloscope also has a 256-level intensity grading display, which is a nice feature for oscilloscopes in this price range. By means of this technique, multiple signals are placed on top of each other to show the most common signals with more intensity. In addition, the oscilloscope also offers color temperature indication to show more clearly how often values occur in a signal.
Accessories
The UNI-T UPO2104E oscilloscope includes:
4 Probes
Power cord
USB Cable
Downloads
UNI-T UPO2000E user manual
(3.22 MB)
Download
UNI-T UPO2000E datasheet
(13.2 MB)
Download
