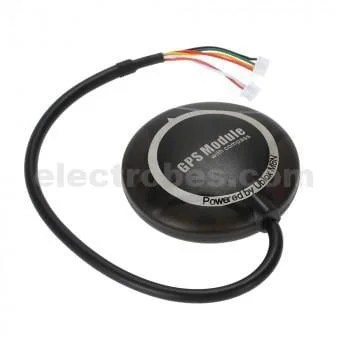

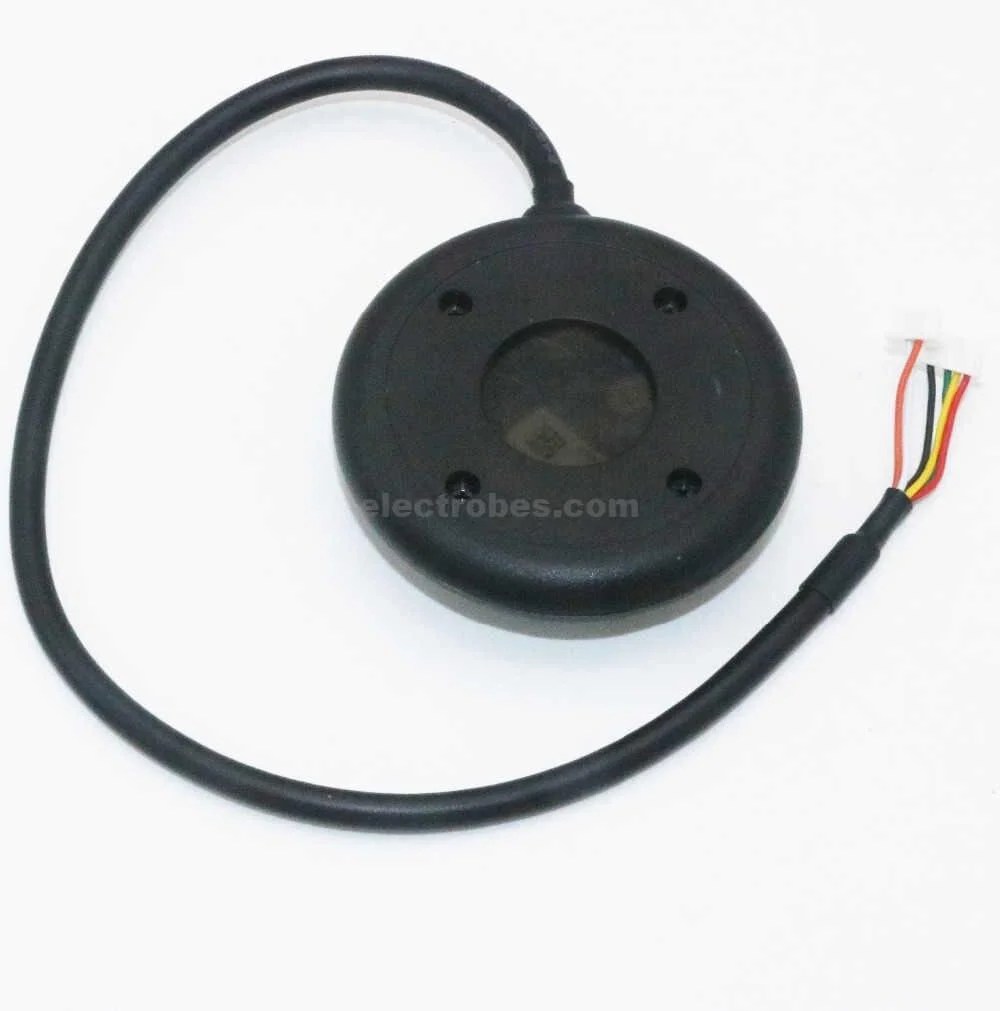

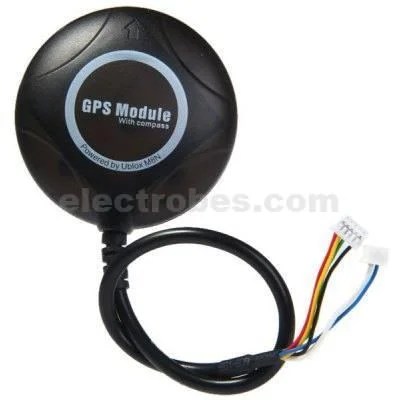

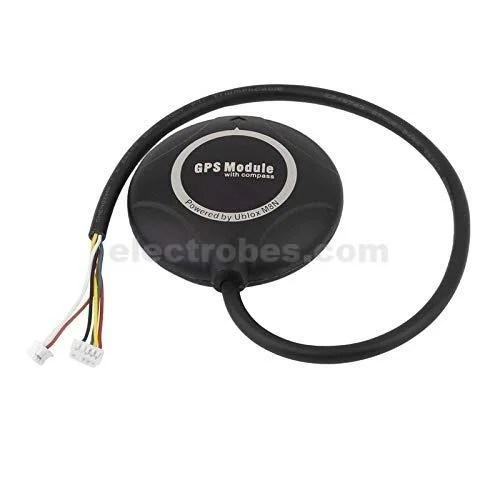

UBLOX NEO-M8N High Precision GPS Built-in Compass for APM Pixhawk

UBLOX NEO-M8N High Precision GPS Built-in Compass for APM Pixhawk
The NEO-M8N provides the best performance and easiest RF integration of all the NEO-M8 configurations. The NEO form factor allows easy migration from previous NEO generations. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments. NEO-M8 combines a high level of robustness and integration capability with flexible connectivity options. The future-proof NEO-M8N includes an internal Flash that allows simple firmware upgrades for supporting additional GNSS systems.

Ublox NEO-M8N GPS Module for APM APM2.52 APM Flight Controller with Case to protect the GPS preventing electromagnetic interference. A new generation Ublox GPS NEO-M8N GPS Module, with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy. Support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol, and mode or more. The NEO-M8N and ceramic antenna make this a very accurate receiver, fast locks & lots of satellites, and the stand is very sturdy to protect the GPS preventing electromagnetic interference.

Features

GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (NEO-M8N)
Onboard Compass
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO (NEO-M8N/Q),
Crystal (NEO-M8M)
RTC crystal Built-In
Noise figure On-chip LNA (NEO-M8M). Extra LNA for
lowest noise figure (NEO-M8N/Q)
Anti-jamming Active CW detection and removal. Extra
onboard SAW bandpass filter (NEO-M8N/Q)
Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
Supported antennas Active and passive
Odometer Travelled distance
Data-logger For position, velocity, and time (NEO-M8N)
