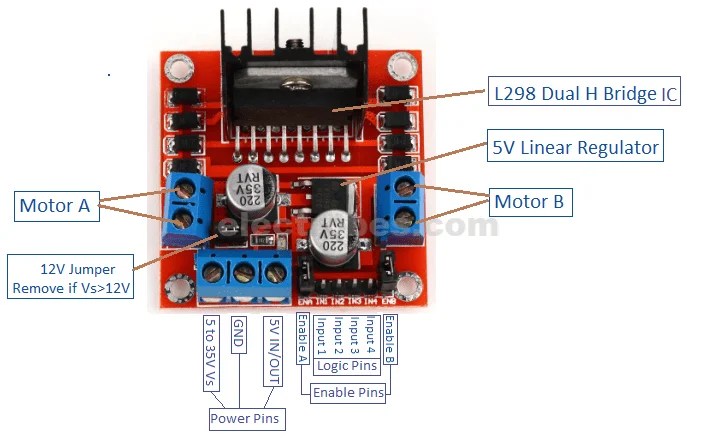

L298N H-Bridge Motor Driver Module - Image 2

L298N H-Bridge Motor Driver Module - Image 3

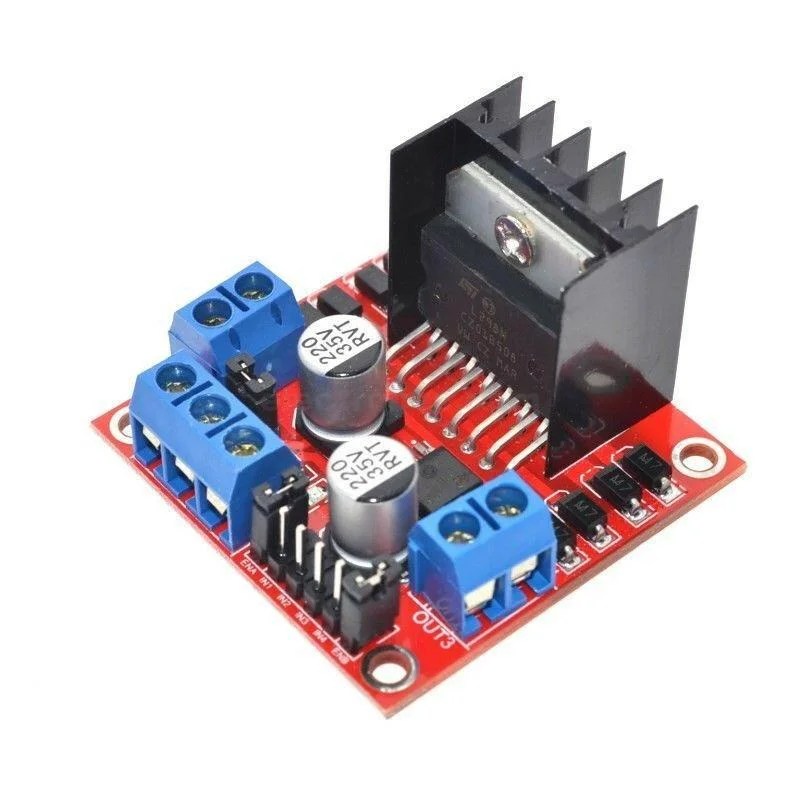

L298N H-Bridge Motor Driver Module - Image 4

L298N H-Bridge Motor Driver Module

₨480.00

The L298 motor driver module features:

Finned Aluminum Heatsink for the L298 IC
Clamping Rectifiers
Filter Capacitors for logic-power and moto-power busses
Onboard 5-Volt DC Regulator (A jumper selects between external 5-Volt power or the onboard 5-volt regulator.)
Screw Terminal connections for ground, motor power, 5-volt power, and motor outputs
0.1 inch-pitch header pins for logic inputs
Jumpers to tie the enable inputs to ground (if desired)
Switches up to 2 amps per channel

SKU: 0753 Categories: Modules and Breakout Boards, Robotics & Machines, Stepper Motors & Drivers

Description
Reviews (0)

L298N H-Bridge Motor Driver Module
This L298N Based Motor Driver Module is a high power motor driver perfect for driving DC Motors and Stepper Motors. H Bridge Driver Module uses the popular L298 motor driver IC and has the onboard 5V regulator which it can supply to an external circuit. It can control up to 4 DC motors, or 2 DC motors with directional and speed control.
This Stepper Motor Driver is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC and Stepper motors for micro mouse, line-following robots, robot arms, etc. An H-Bridge is a circuit that can drive a current in either polarity and be controlled by Pulse Width Modulation (PWM). Pulse Width Modulation is a means of controlling the duration of an electronic pulse.
Specifications:

Double H Bridge Drive Chip: L298N
Logical Voltage: 5V

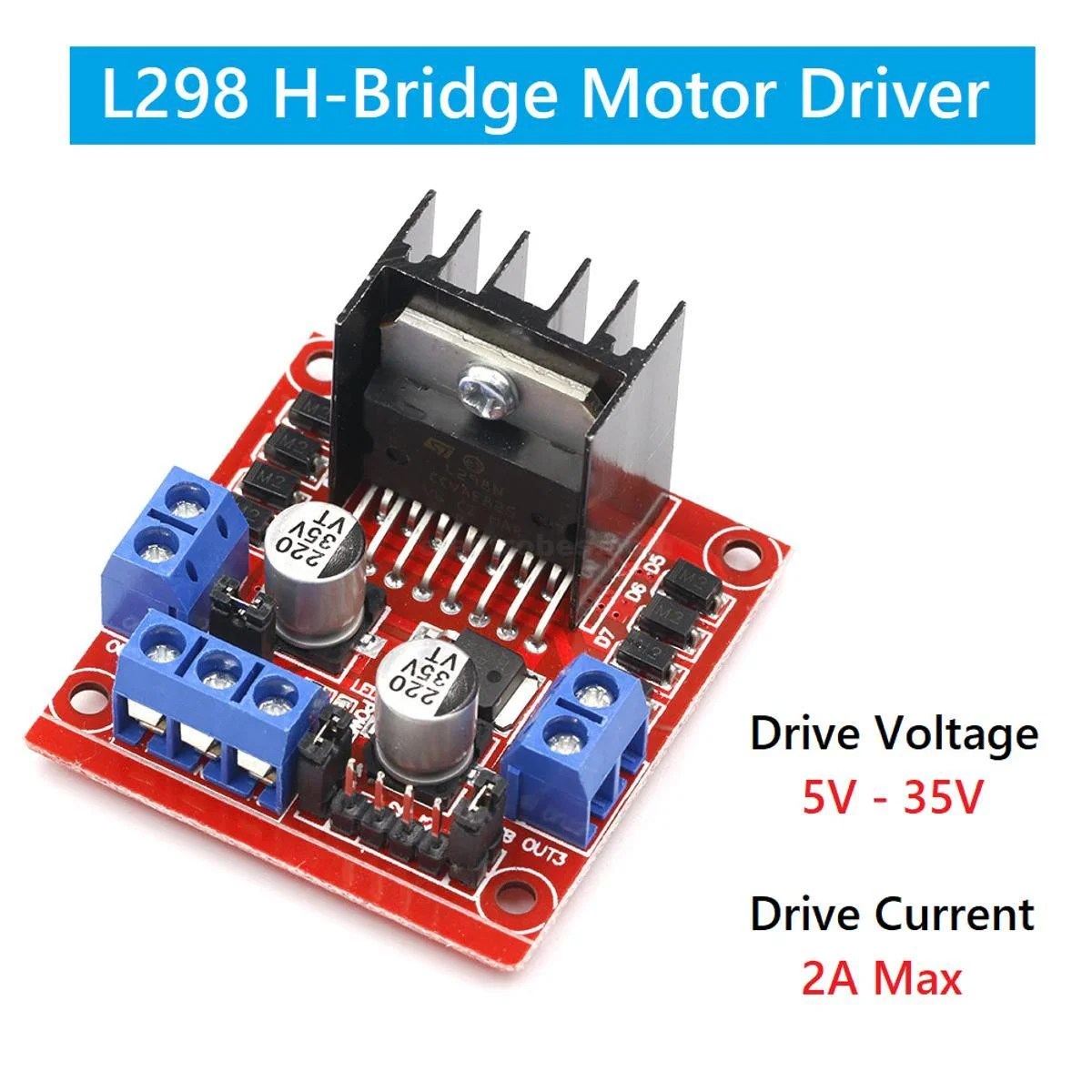

Drive Voltage: 5V-35V
Logical Current: 0-36mA
Drive current: 2A (MAX single bridge)
Max Power: 25W

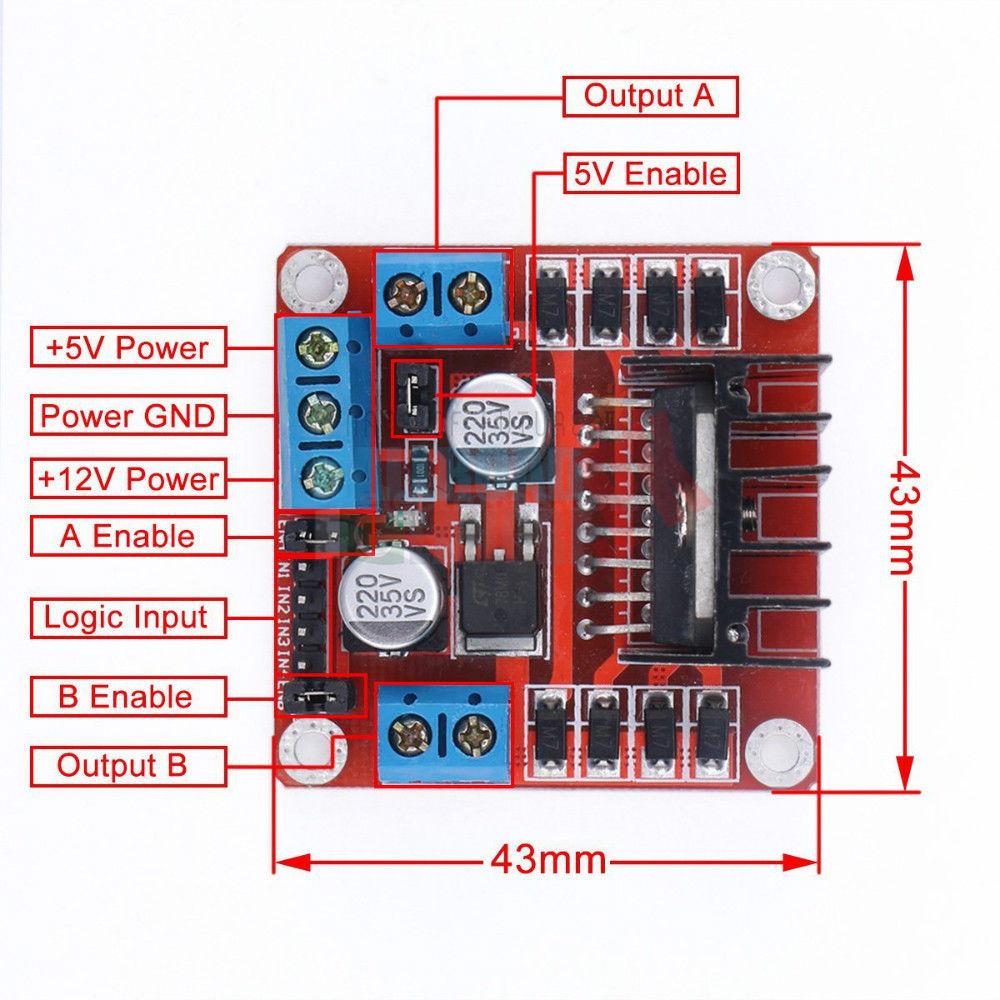

Dimensions: 43 x 43 x 26mm
Weight: 26g
