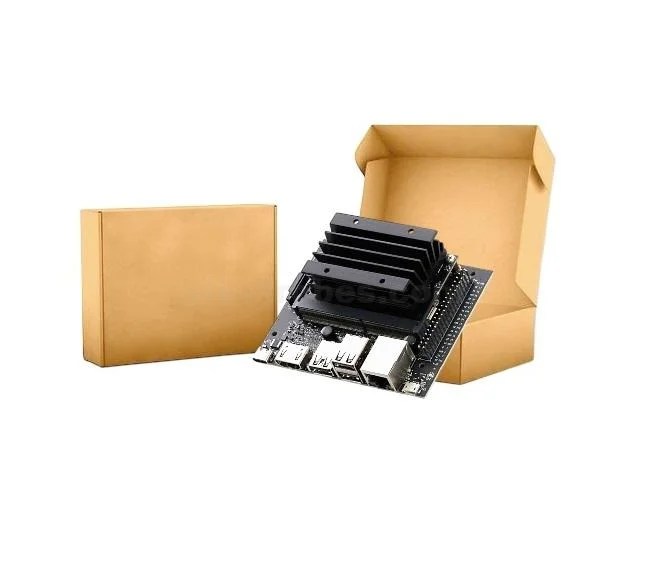

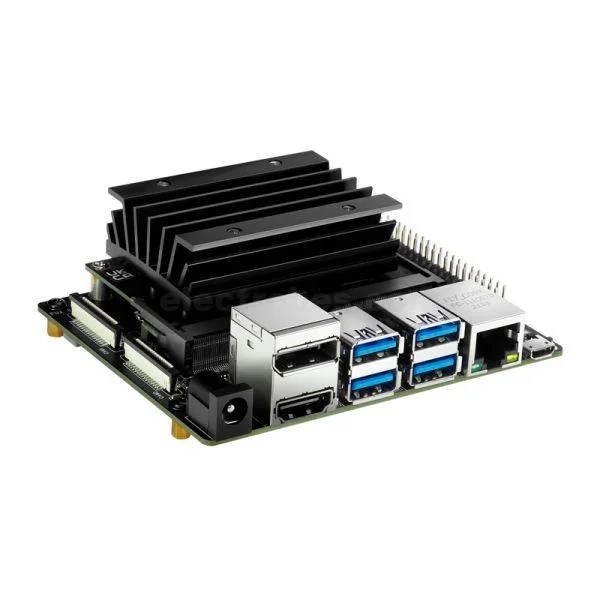

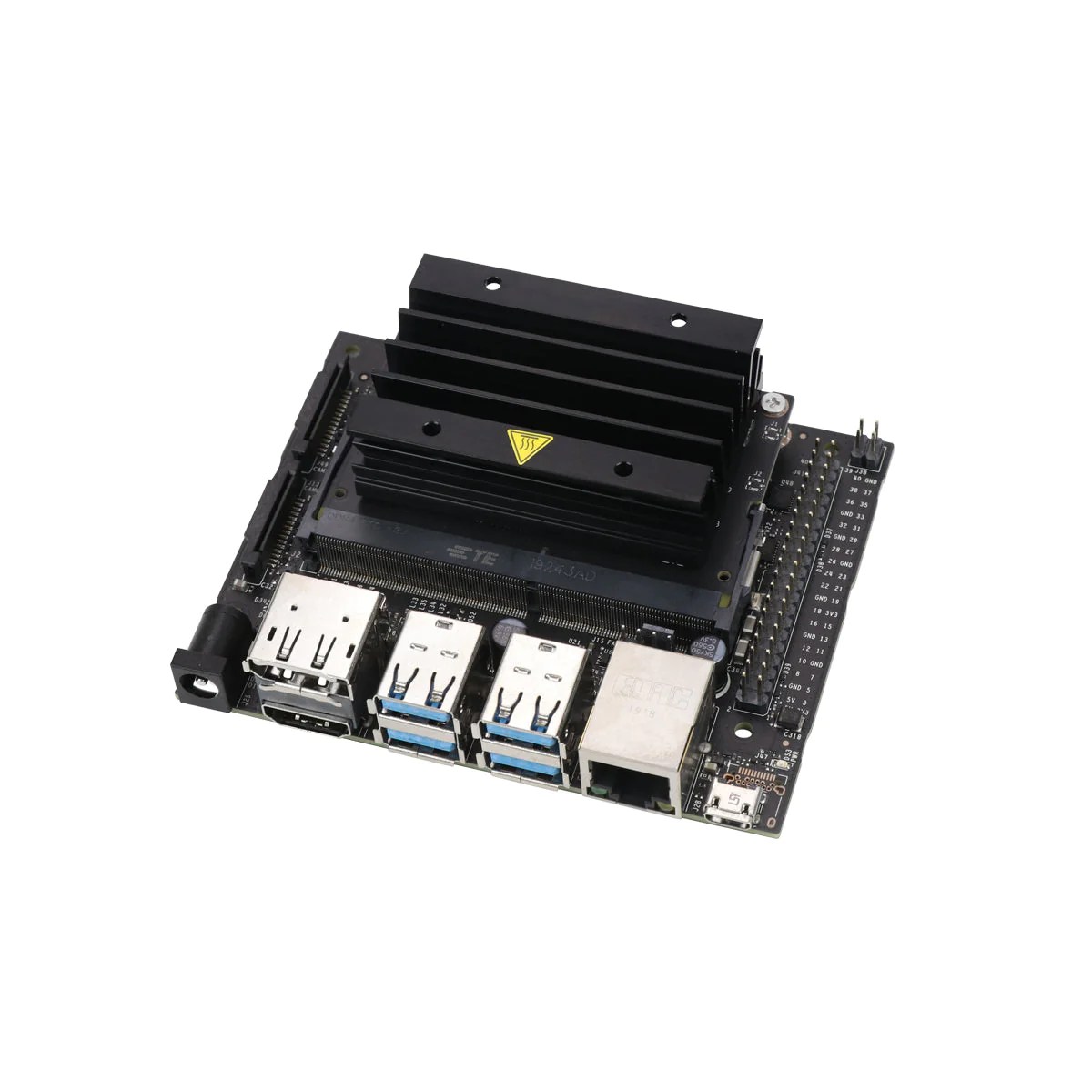

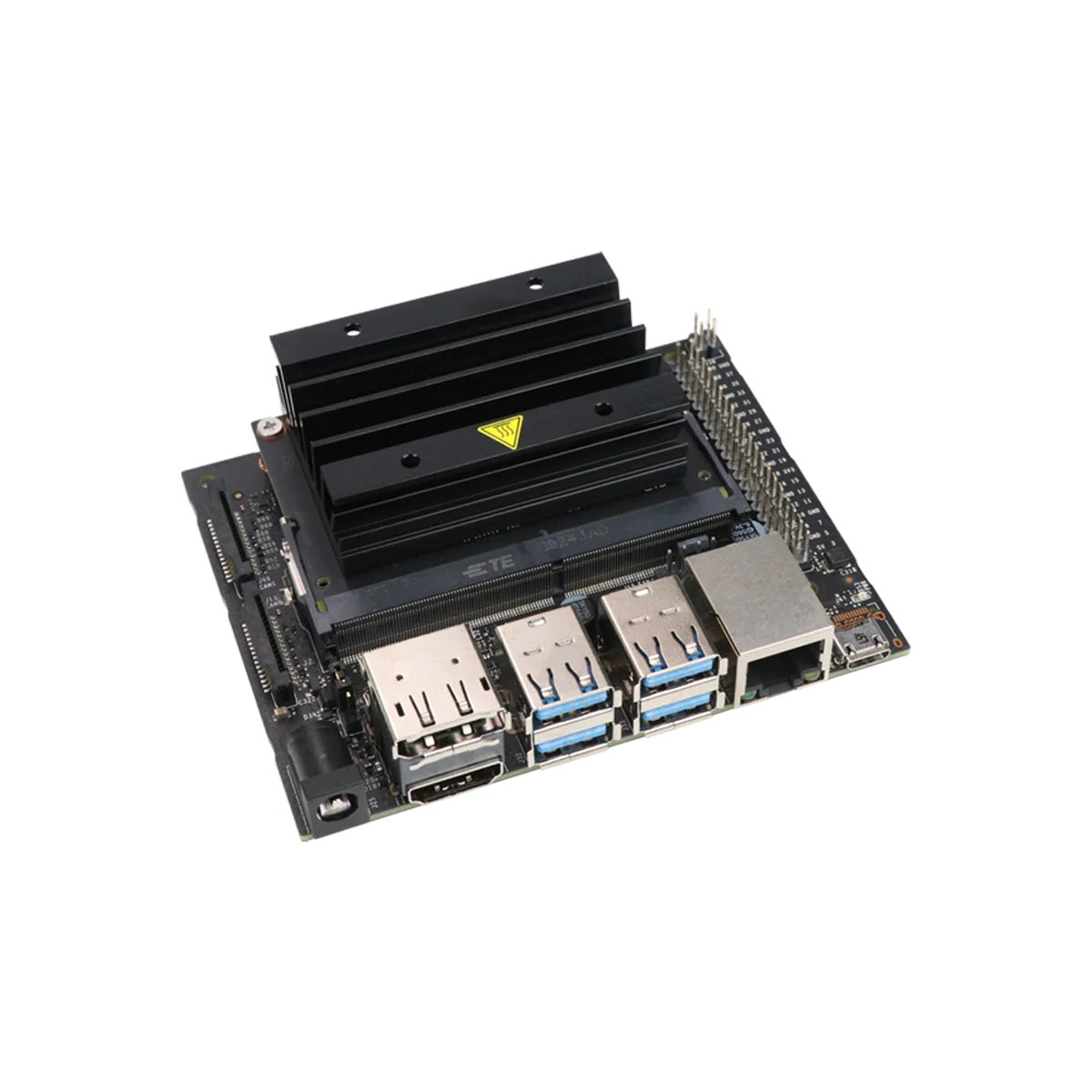

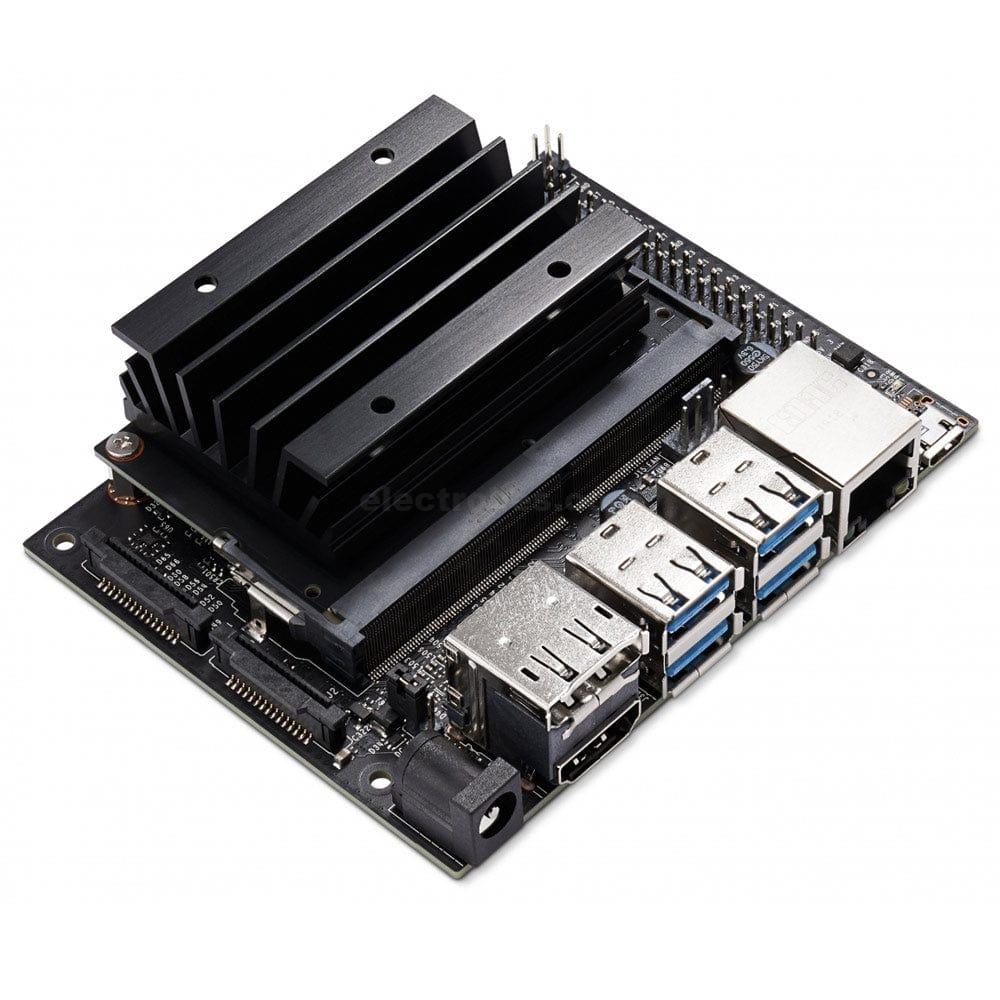

NVIDIA JETSON NANO B01 Board Developer Kit based on JETSON NANO 16GB EMMC 4 GB 64-bit LPDDR4 Module
The NVIDIA® Jetson Nano™ Developer Kit delivers the compute performance to run modern AI workloads at an unprecedented size, power, and cost. Developers, learners, and makers can now run AI frameworks and models for applications like image classification, object detection, segmentation, and speech processing.
The developer kit can be powered by micro-USB and comes with extensive I/Os, ranging from GPIO to CSI. This makes it simple for developers to connect a diverse set of new sensors to enable a variety of AI applications. It’s incredibly power-efficient, consuming as little as 5 watts.
Jetson Nano is also supported by NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. The software is even available using an easy-to-flash SD card image, making it fast and easy to get started.
The same JetPack SDK is used across the entire NVIDIA Jetson™ family of products and is fully compatible with NVIDIA’s world-leading AI platform for training and deploying AI software. This proven software stack reduces complexity and overall effort for developers.
Key Features:
Jetson Nano Module
128-core NVIDIA Maxwell™ GPU
Quad-core ARM® A57 CPU
4 GB 64-bit LPDDR4
10/100/1000BASE-T Ethernet
Power Options
Micro-USB 5V 2A
DC power adapter 5V 4A
I/O
USB 3.0 Type A
USB 2.0 Micro-B
HDMI/DisplayPort
M.2 Key E
Gigabit Ethernet
GPIOs, I2C, I2S, SPI, UART
MIPI-CSI camera connector
Fan connector
PoE connector
Kit Contents
NVIDIA Jetson Nano module and carrier board
Quick Start Guide and Support Guide
Specifications
GPU: 128-core Maxwell
CPU:Quad-core ARM A57 @ 1.43 GHz
Memory: 4 GB 64-bit LPDDR4 25.6 GB/s
Storage: microSD (not included)
Video Encoder: 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
Video Decoder: 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30|(H.264/H.265)
Camera: 2x MIPI CSI-2 DPHY lanes
Connectivity: Gigabit Ethernet, M.2 Key E
Display: HDMI 2.0 and eDP 1.4
USB: 4x USB 3.0, USB 2.0 Micro-B
Others: GPIO, I2C, I2S, SPI, UART

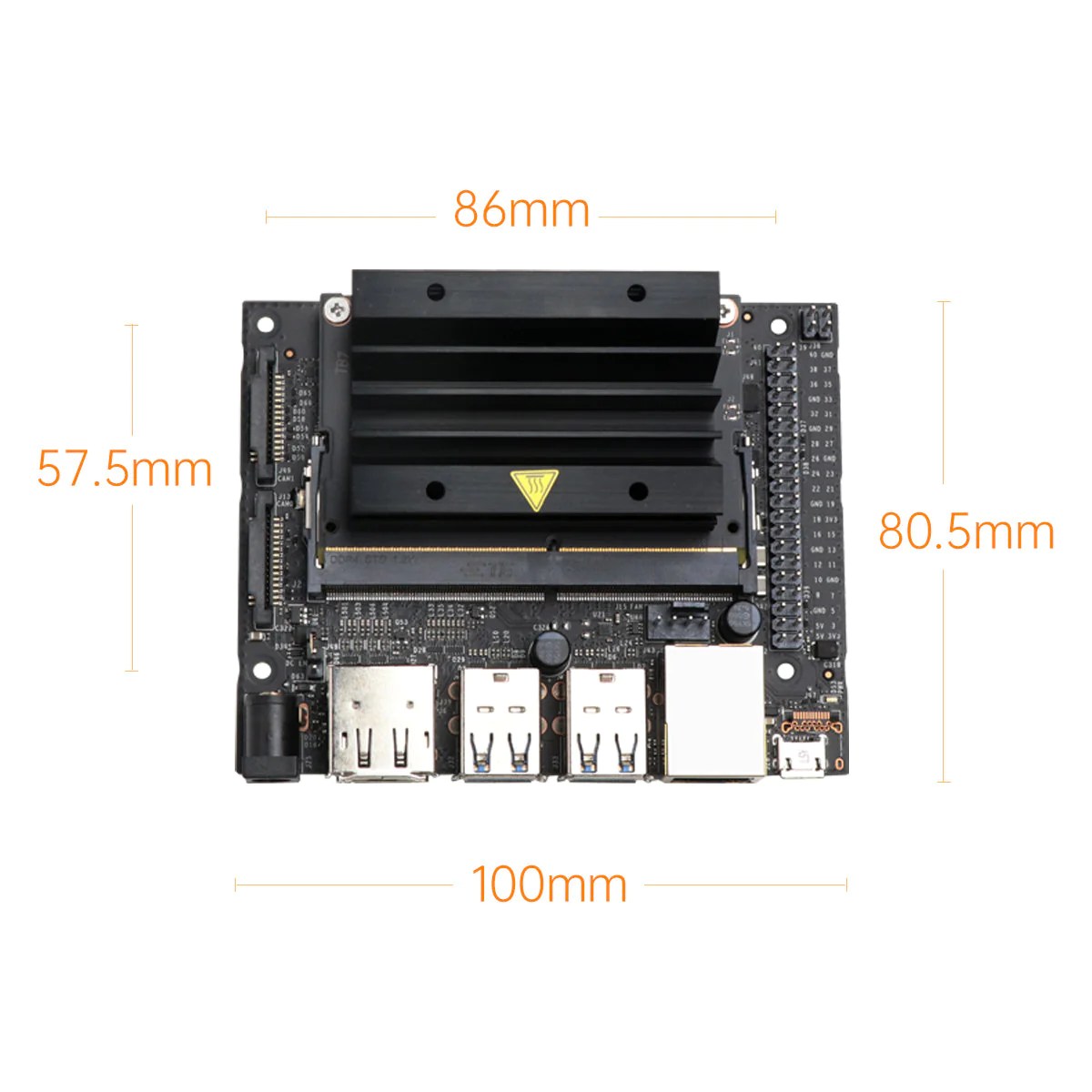

Mechanical: 100 mm x 80 mm x 29 mm
Version Change Information for B01 from A02
The B01 revision carrier is compatible with the production specification Jetson Nano module. The A02 revision carrier is not.
Removed Button Header [J40] Position
Removed Serial Port Header [J44] Position
Adjusted the Position of Power Select Jumper [J48]
Adjusted the Position of Camera Connector [J13]
Added Camera Connector [J49] location
Factory JetPack Upgrade from 4.2 SDK to 4.3 SDK
Package Include:
1x NVIDIA Jetson Nano Developer Kit-B01
