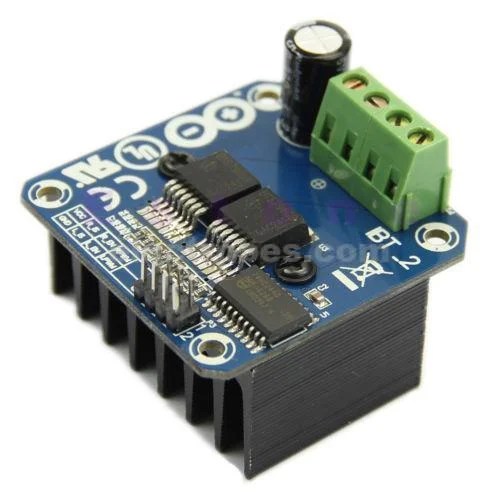

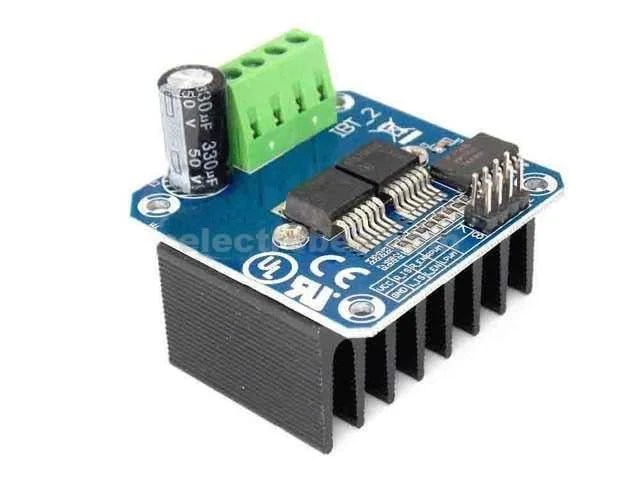

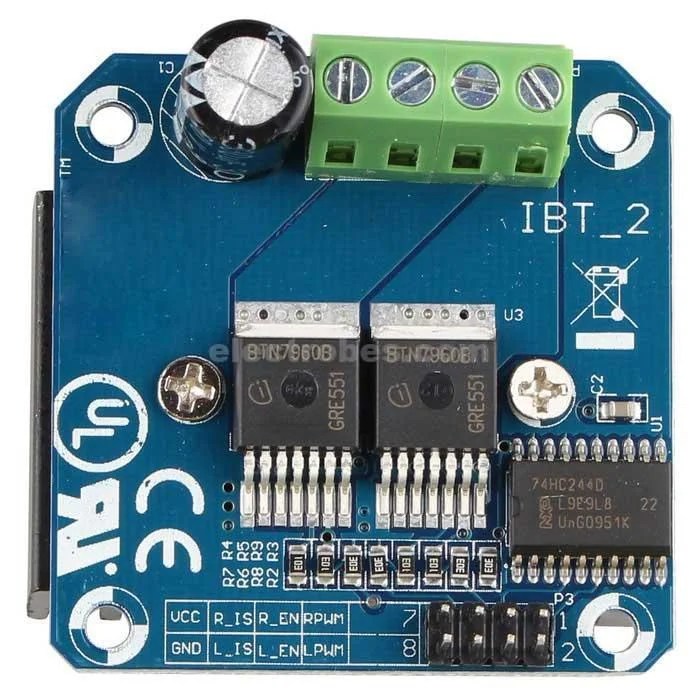

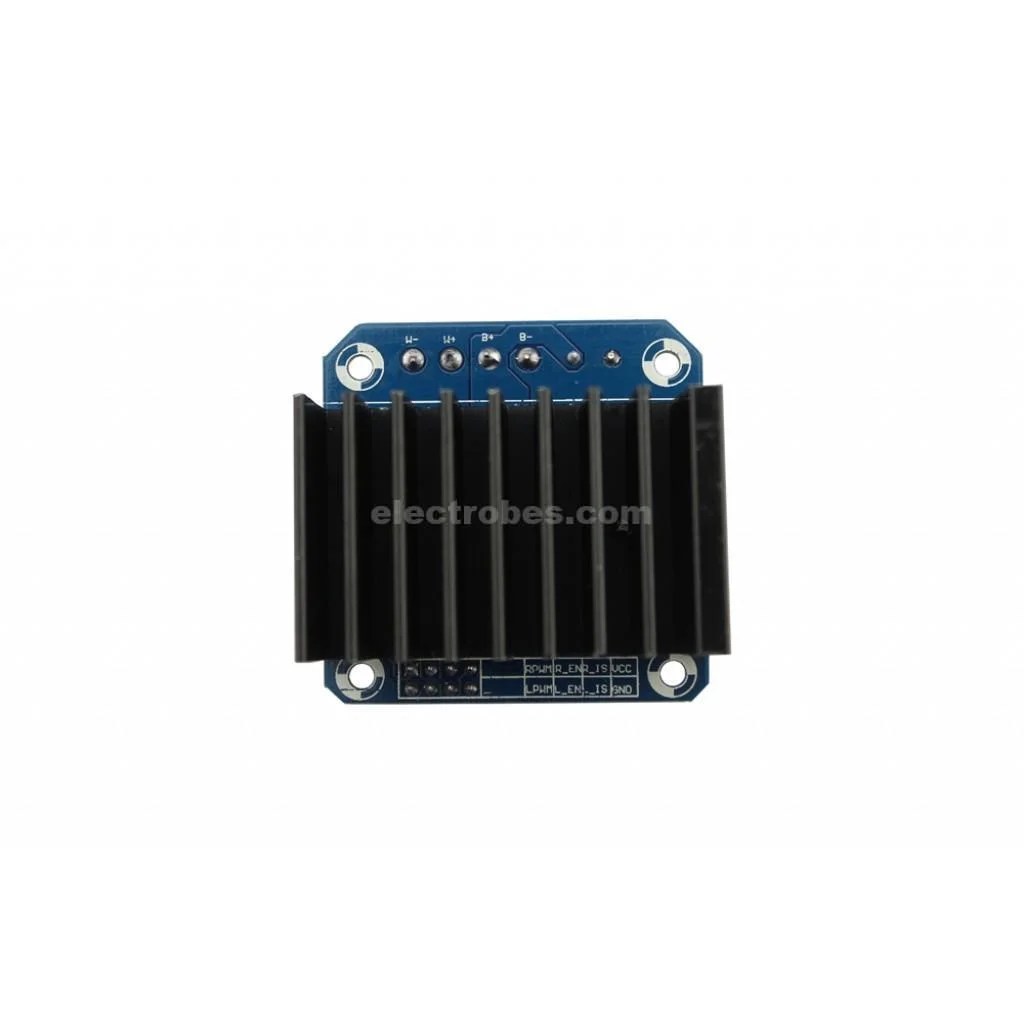

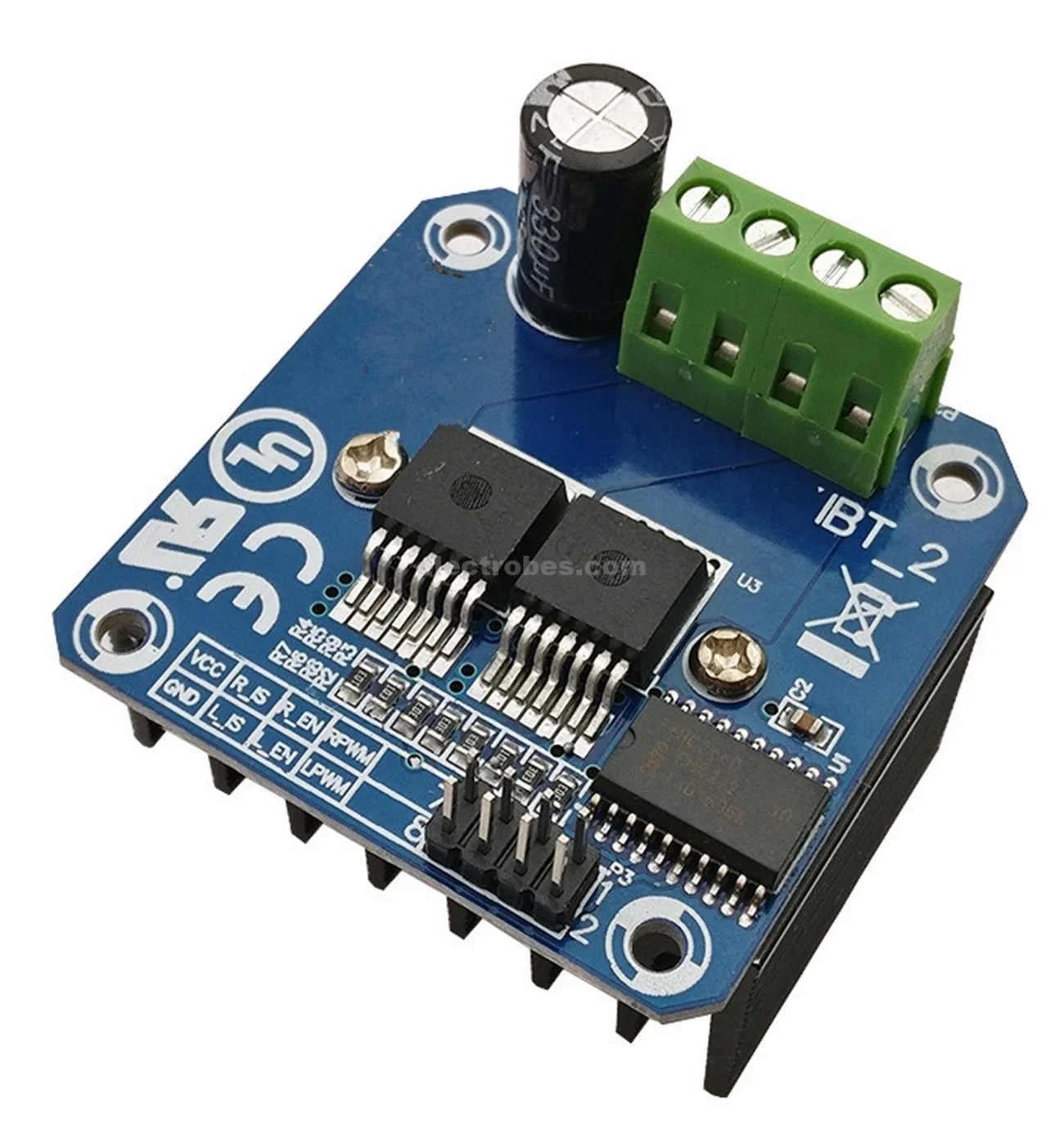

IBT-2 43A H-bridge Double BTS7960 High Power Motor Driver Module

IBT-2 43A H-bridge Double BTS7960 High power Motor Driver Module
The drive uses an H-bridge driver module that composed by Infineon power drive chip BTS7960, with overheating and over-current protection. Double BTS7960 H-bridge driver circuit, with strong drive and braking effect, use 74HC244 chip effectively isolate the microcontroller and the motor drive! High Current up to 43A!
APPLICATIONS:

Current diagnostic
Slope adjustment
Dead Time generation
Over-temperature, over-voltage, under-voltage, over-current protection
Short circuit protection

PACKAGE LIST:
1 x BTS7960 IBT-2 43A motor driver module

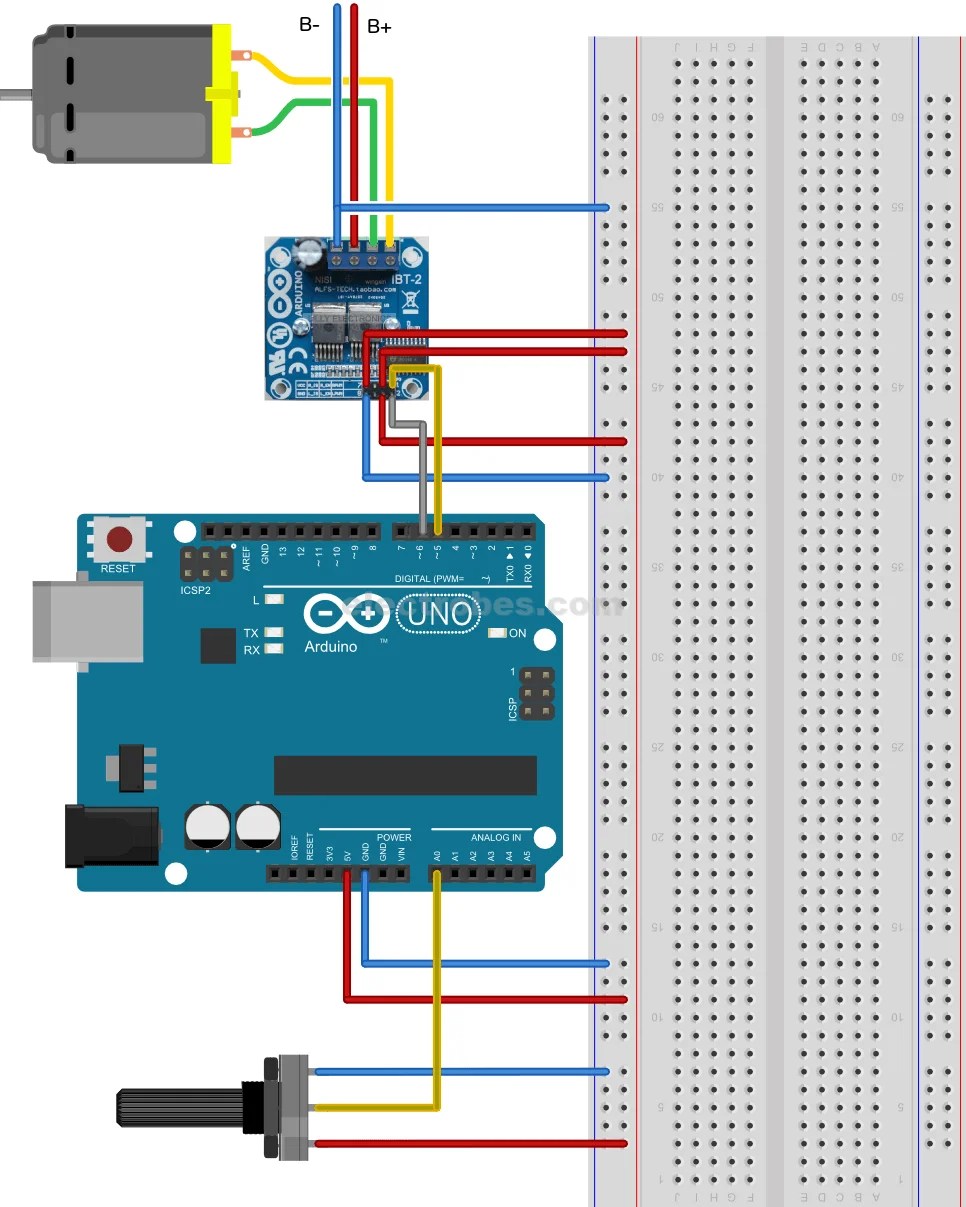

How to connect with Arduino
Arduino tutorial for IBT-2 43A H-Bridge motor driver
