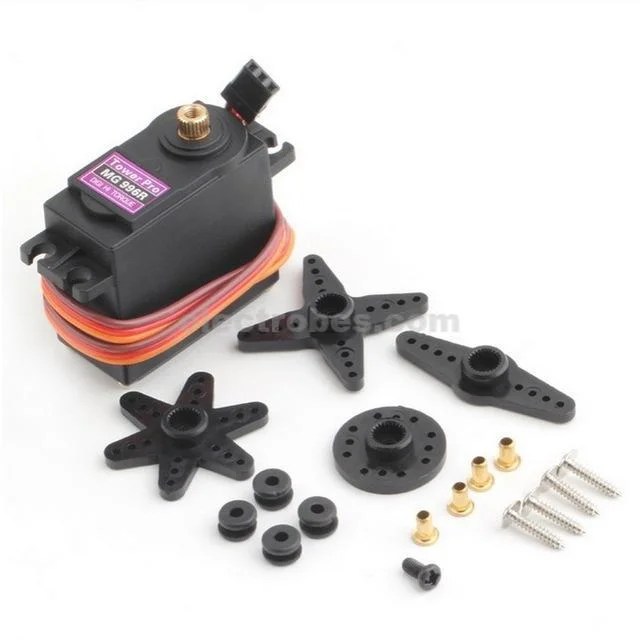

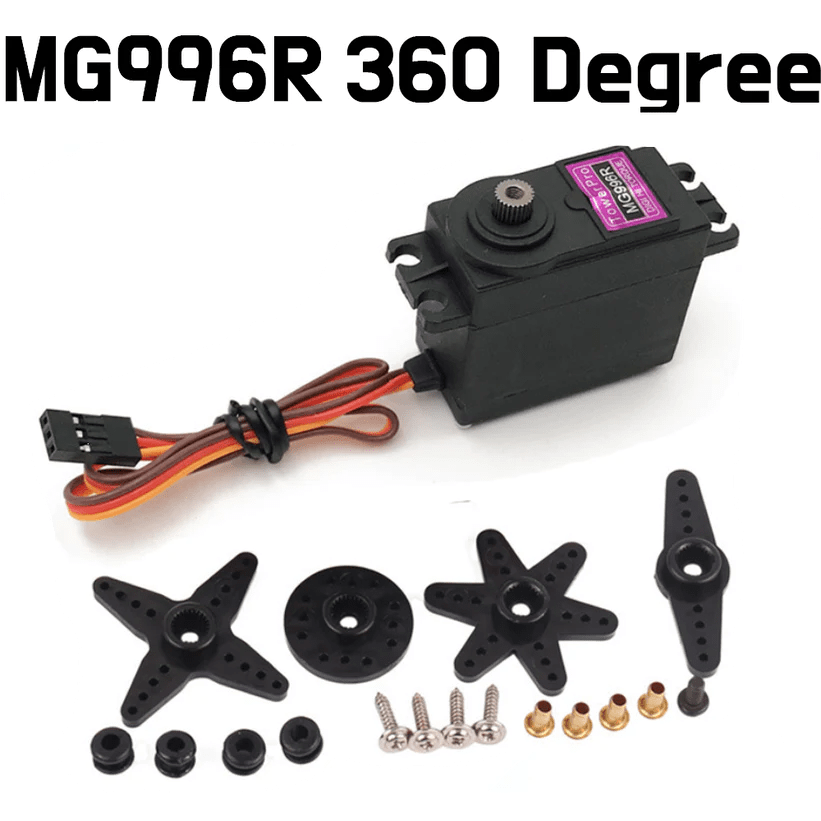

MG996R Metal Gear Tower Pro Servo Motor 360 Degree

MG996R Metal Gear Tower Pro Servo Motor 360 Degree
The MG996R is a metal gear Tower Pro servo motor that has a high torque with high accuracy. Like other RC servos the motor rotates from 0 to 360 degree based on the duty cycle of the PWM wave supplied to its signal pin.
They work great with our Raspberry Pi . They’re also great for the Arduino motor shields – or simply by wiring up an Arduino with the Servo library. You can use any servo code, hardware or library to control these servos, so it’s great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places.
Description:

Weight: 55g
Dimension : 40.7 × 19.7 × 42.9 mm (LxWxH)
Operating temperature: -30 ~ + 60 °
Deadband setting: 4 microseconds
Rotation angle: 360°
Torque: 4.8V: 130.5 oz-in (9.40 kg-cm), 6.0V: 152.8 oz-in (11.00 kg-cm)
Speed: 4.8V: 0.20 sec/60°, 6.0V: 0.16 sec/60°
Servo type: analog servo
Operation Voltage : 4.8 – 7.2Volts
Gear Type: All Metal Gears
Stable and shockproof double ball bearing design
Control System: Analog

Wire Configuration:

Wire Number
Wire Colour
Description

1
Brown
Ground wire connected to the ground of system

2
Red
Powers the motor typically +5V is used

3
Orange
PWM signal is given in through this wire to drive the motor
