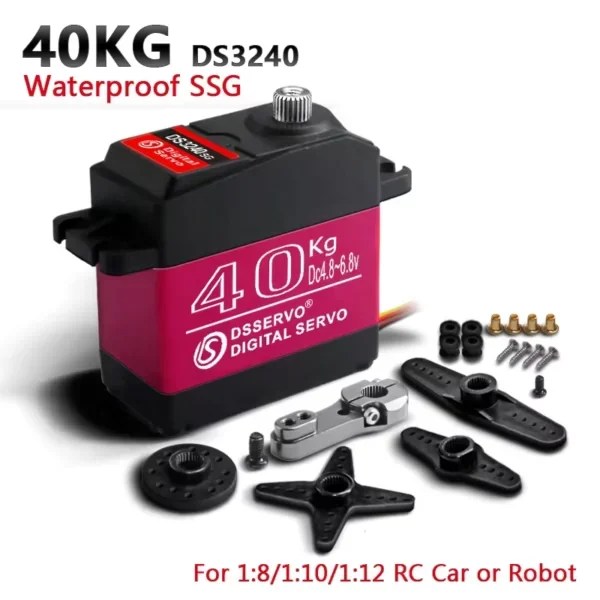

DS3240 Waterproof Digital Servo 6V 40KG High Torque Metal Gear DSServo 25T for 1/8 1/10 Scale RC Crawler Car
DSServo DS3240SSG Pro Servo Motor is High precision potentiometer and High-resolution digital chip, with stable performance, strong anti-interference ability, fast response, high precision, and control is more delicate and smooth operation.
High Torque 40KG Stainless Steel Gear Digital Servo is a high-speed stainless steel gear, accuracy and service life has been greatly increased Accuracy and linearity have been greatly improved. Accurate movement can satisfy the needs of making robots.
Specifications:
Control Angle: 180 degree
Stall Torque (at 5V): 36 kg/cm
Stall Torque (at 6.8V): 45 kg/cm
Dead band: 3μs
Speed : 0.20 sec/60°(5V) / 0.17 sec/60°(6.8V)
Operating Voltage: 4.8 ~ 6.8V
Working frequency: 1520μs / 334hz
Pulse width range: 500～2500µsec
Rotating direction: Counterclockwise (when 500～2500 µsec)
Neutral position: 1500µsec
Running degree: 0° (when 500 μ sec)
Running degree: 180° (when 2500 μ sec)
Packing List:
1x 40kg digital servo
1x 25T metal servo arm
1x accessory bag
