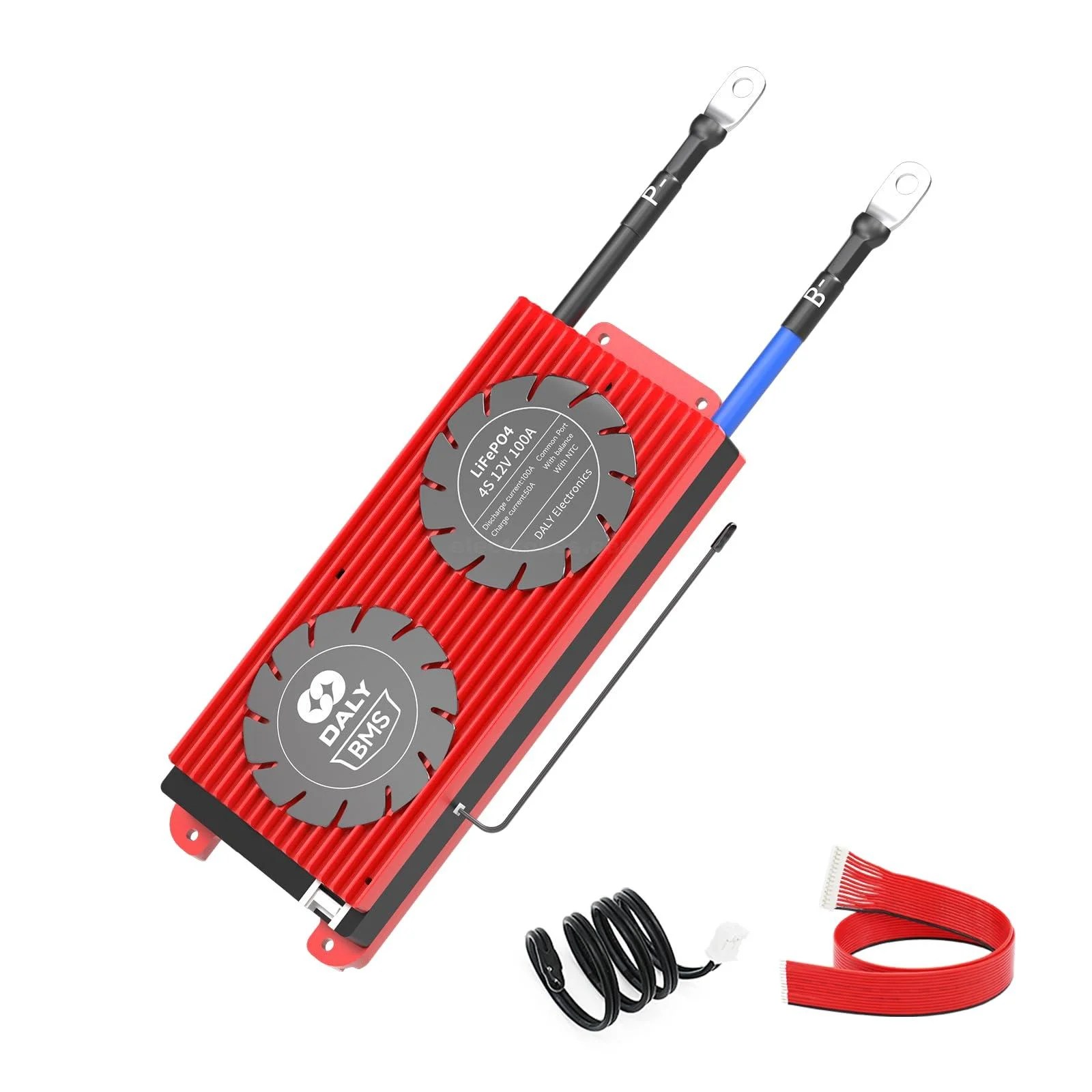

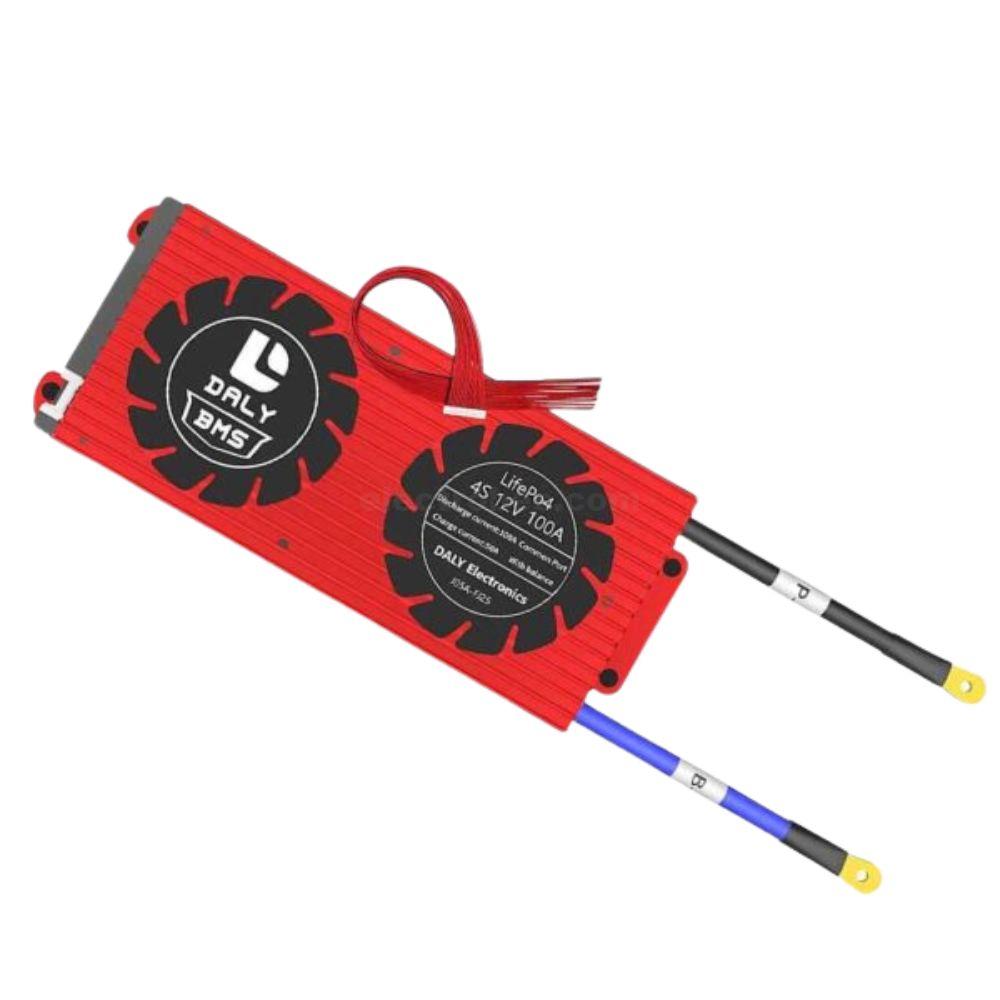

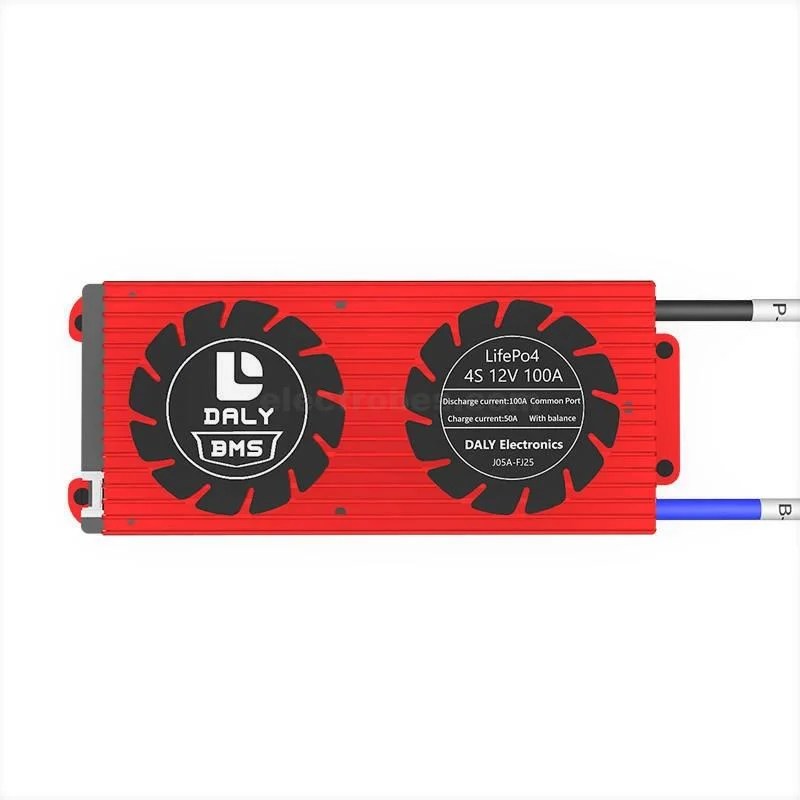

DALY BMS 4S 12V LifePO4 PCB Protection Board with Balance Wire and Temperature Sensor for 4 3.2V Cells 12V LiFePO4 Lithium Battery Pack
Introduction about this BMS:
This is a 4S fixed configuration basically it cannot be used for any other battery pack configurations. Because it is only a lithium iron phosphate battery management system only. As a result that they cannot be used for Li-Ion, Li-Metal or LTO batteries. It is strictly for LiFePo4 battery packs only.
Over charge and over discharge protection:
The LiFePo4 battery pack will stop charge after the single cell voltage reaches 3.7V and stop discharge when its voltage reaches 2.5V.
Temperature Protection:
In high temperatures the BMS ranges from 70℃ discharging battery protection.
Meanwhile in low temperatures the BMS ranges up to -20℃ battery protection.
Short circuit protection:
When there is a defect or damage to the circuit at same time the BMS will shut down the whole Battery.
Certifications Approved:
ISO/ FCC/ RoHS/ PSE and CE APPROVED
Applications:
Solar and RV, Electric bikes and Skateboard including camping boats and Power tools, Lawn moving and household energy storage systems etc.
What you will get:
4S LiFePo4 100A rated voltage with 12V BMS
Balanced wire sense cable (5 Wire sense cable with connector)
Instruction Manual
Conclusion:
Most important that it is only a waterproof BMS available in lithium industry.
This BMS is also for all kinds of lithium-ion cells including 18650 ,21700, 36500 cylindrical cells and prismatic cells.
Package Includes:
1 x 4S 12V 100A LifePo4 BMS
1 x Connecting Cable
