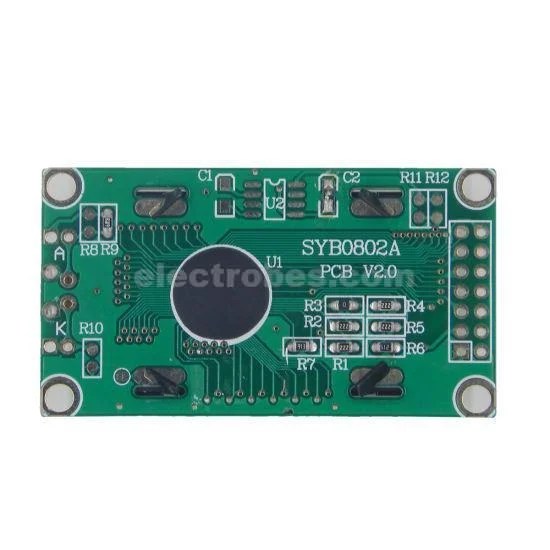

WH0802A1 is an 8 character by 2 lines 8×2 character LCD display. This 8×2 LCD module is available in various LCD panel colors including gray, yellow/green and blue LCD options. 0802 LCD module is built in with ST7066 controller (or equivalent). WH0802A1 model has different interfaces available, it’s default 6800 4/8-bit parallel 6800 interface, also it’s optional SPI and I2C by using RW1063 IC.
Pin Configuration:
PIN NO.
SYMBOL
DESCRIPTION
1
VSS
Ground
2
VDD
Power supply for logic
3
VO
Contrast Adjustment
4
RS
Data/ Instruction select signal
5
R/W
Read/Write select signal
6
E
Enable signal
7
DB0
Data bus line
8
DB1
Data bus line
9
DB2
Data bus line
10
DB3
Data bus line
11
DB4
Data bus line
12
DB5
Data bus line
13
DB6
Data bus line
14
DB7
Data bus line
15
A
Power supply for B/L +
16
K
Power supply for B/L –
