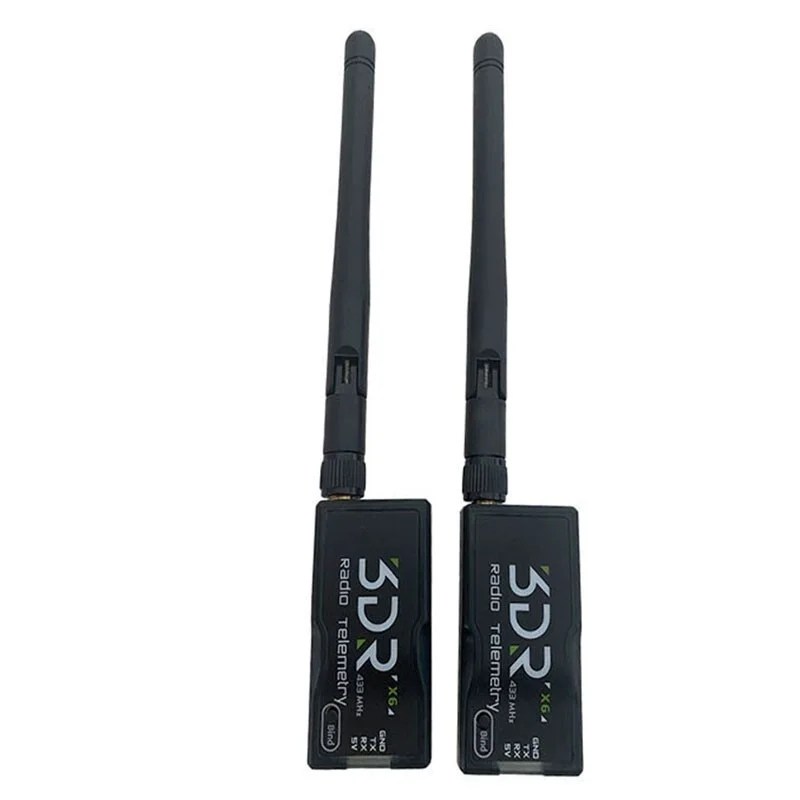

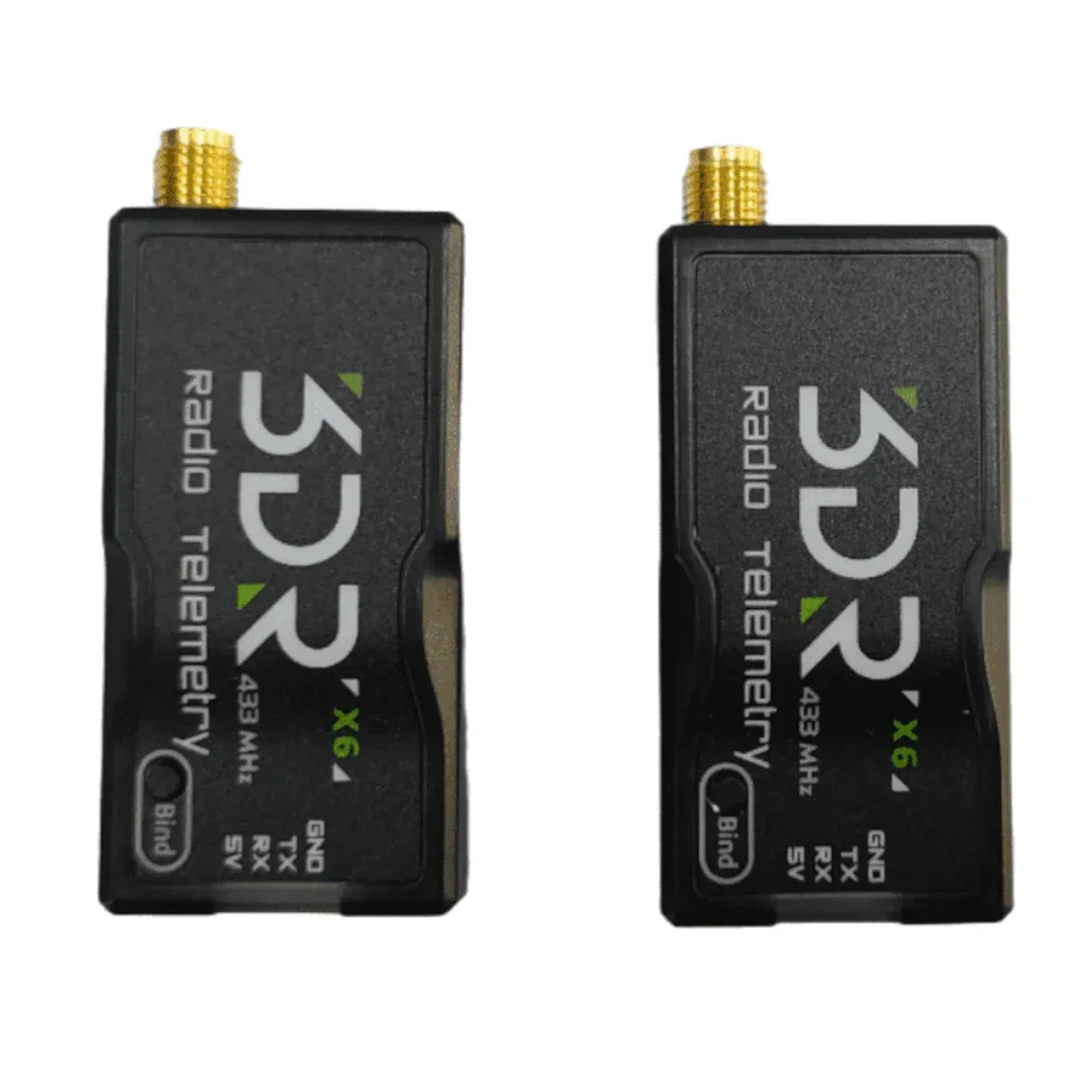

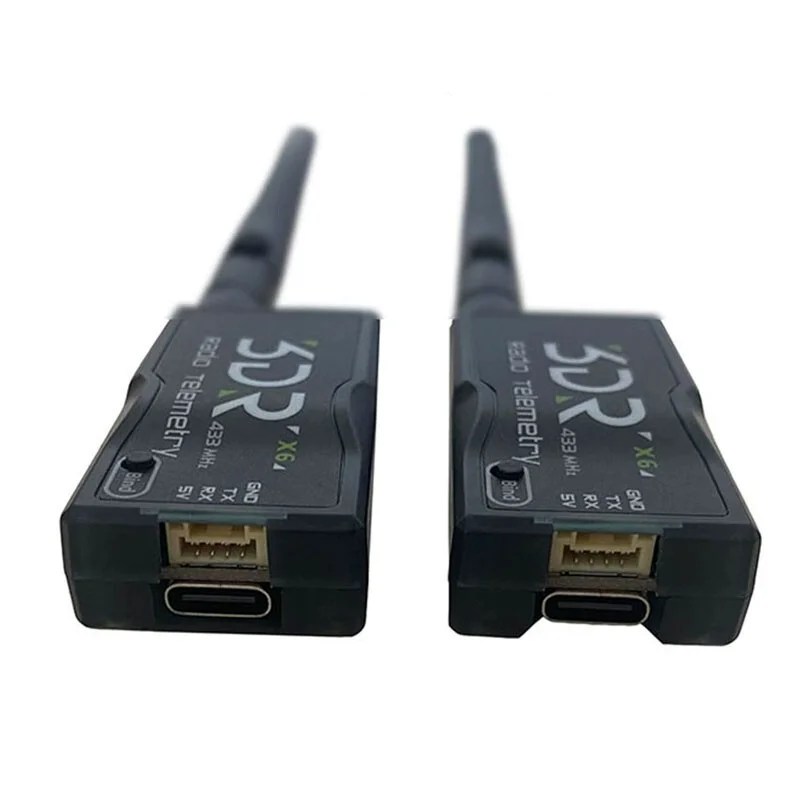

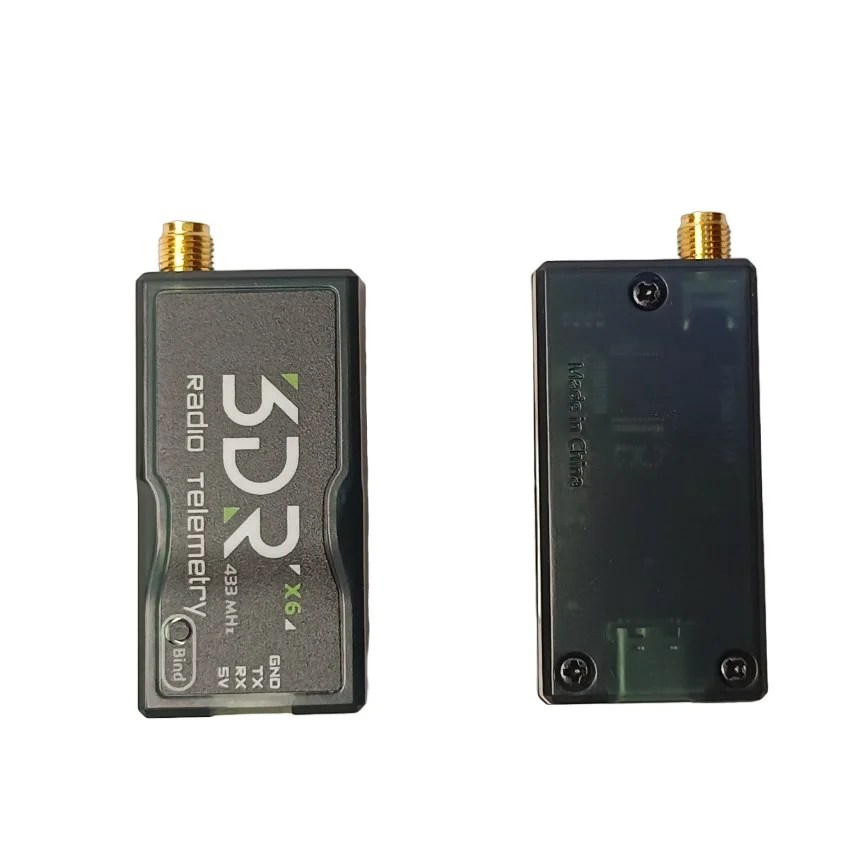

3DR X6 Radio Telemetry 500MW 433MHz for FPV Drone Quadcopter
Product Description:
The 3DR X7 Radio Telemetry 500mW 433MHz is a reliable long-range wireless communication module designed for real-time telemetry transmission between UAVs, drones, robots, and ground control stations. Operating on the 433MHz frequency band, this telemetry system provides stable and low-latency communication for monitoring and controlling autonomous systems.
With a 500mW transmission power, the module offers extended communication range and strong anti-interference performance, making it suitable for outdoor and industrial environments. It is widely compatible with Pixhawk, APM, ArduPilot, Mission Planner, and MAVLink-supported flight controllers.
The plug-and-play design allows easy setup for telemetry data transfer, flight monitoring, GPS tracking, parameter tuning, and mission planning applications.
 Specifications:
Model: 3DR X6 Radio Telemetry
Frequency: 433MHz
Transmission Power: 500mW
Communication Type: Bidirectional serial telemetry
Interface: UART / TTL
Protocol Support: MAVLink compatible
Data Rate: Adjustable air data rate
Communication Range: Several kilometers (environment dependent)
Operating Voltage: 5V DC
Antenna Type: External SMA antenna
USB Interface: USB to serial adapter for ground station
Compatibility: Pixhawk, APM, Mission Planner, ArduPilot
Operating Temperature: -10°C to +70°C
 Key Features:
 Long-Range Telemetry CommunicationEnables wireless monitoring and control of UAVs and robotics systems.
 500mW High Transmission PowerProvides stable long-distance communication with improved signal strength.
 Real-Time Data TransmissionSupports live telemetry, GPS data, battery status, and flight parameters.
 Flight Controller CompatibleWorks with Pixhawk, APM, ArduPilot, and MAVLink systems.
 Strong Anti-Interference PerformanceReliable communication in outdoor and industrial environments.
 Plug & Play OperationEasy installation with USB and UART interfaces.
 Adjustable Communication SpeedFlexible data rate settings for different applications.
 Compact & Lightweight DesignSuitable for drones, autonomous vehicles, and robotics projects.
Power Supply Requirements:
– Operating voltage: 3.7V~6V DC
– Transmit current: 100mA at 30dBm
– Received current: 25mA

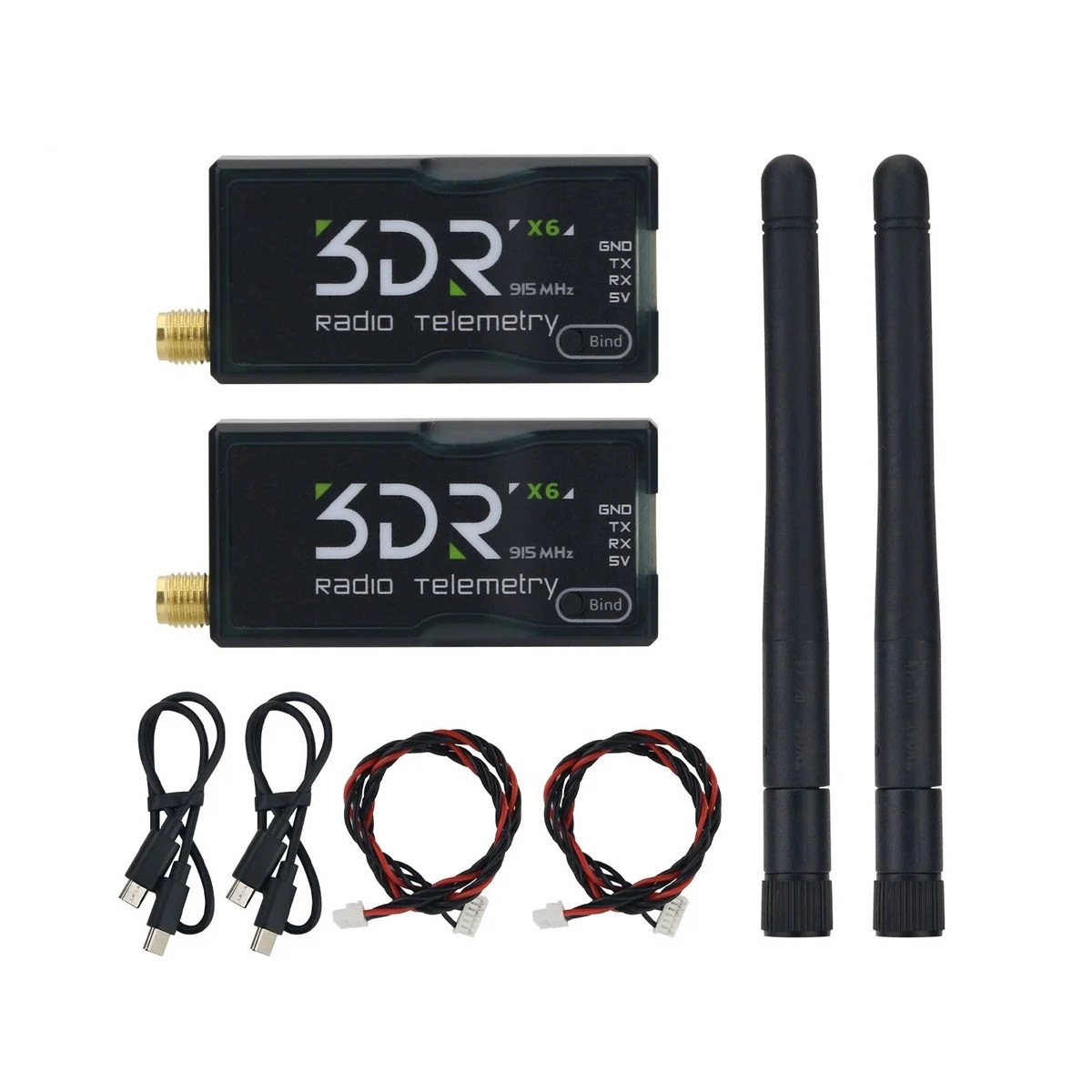

Package Included:
– 2 x Telemetry Radio Modules
– 2 x Antennas
