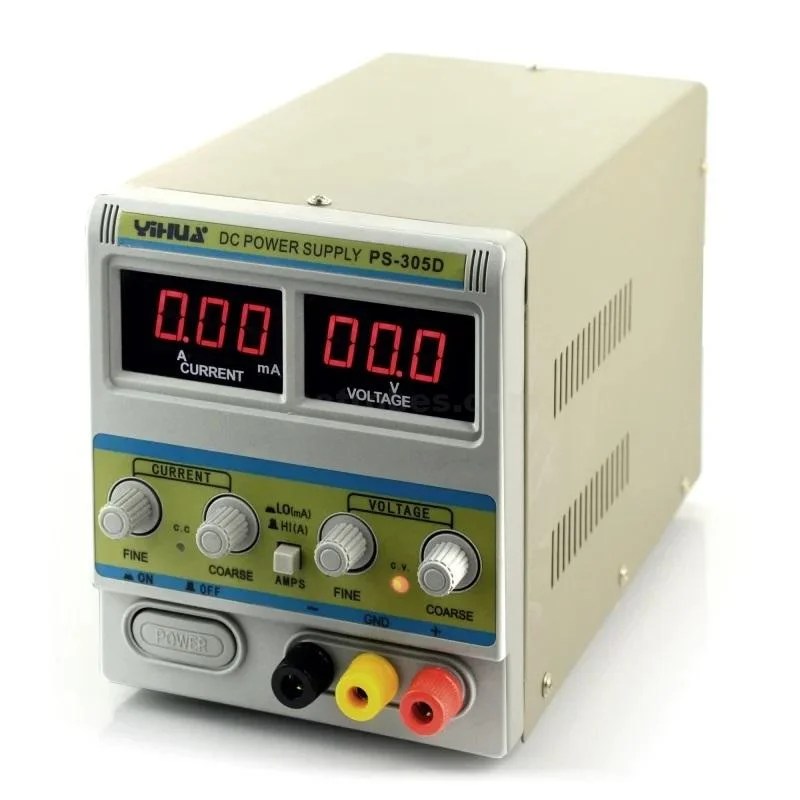

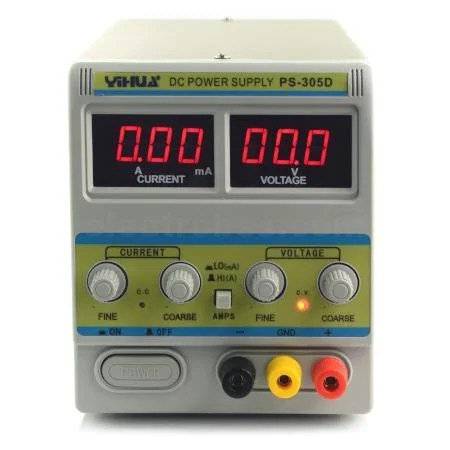

YIHUA YH-305D DC Power Supply Precision Lab Variable 30V 5A Adjustable Regulated Supply
YIHUA DC Power Supply YH305D is special needs the design for the handset and each kind of correspondence instrumentation equipment service. This YH305D dc voltage power supply uses the most advanced short circuit protection self-recovery electric circuit. YH 305D high voltage dc power supply, the high-speed overflow protection starts, and belt intelligence acousto-optics warning. After the short circuit protection self-recovery treats the unsporting in one second the self-recovery output.
Features Of YH305D Digital LED DC Power Supply Precision Variable Adjustable 30V 5A:
This model has a compact design with all-metal construction.
Featuring a Dual LED three digital tube display with a highly accurate LED digital readout.
Maximum output is 30V at 5A.
High stabilized output voltage.
Current mA / A conversion display.
Short circuit protection.
Overloading and current protection.
CE Approved.
220-240V/AC With UK Plug.
Application:
Products Related to Auto
Products Related to Electron
Products Related to Computer
Research Institutions
Educational Institutions can use it like a research equipment.
Characteristics:
High quality and reliability
Clear digital LED displays
Operation in voltage (CV) or current (CC) stabilization mode
Protection against short circuit and overload
Built-in fan
Thermal fan switch
Ability to work with a current limitation of 990mA (indications with an accuracy of 1mA) and 5A (indications with an accuracy of 10mA)
Technical parameters
Supply voltage 220V AC ± 10%, 50 / 60Hz
Working environment -10 ÷ 40 ° C, RH <90%
Storage environment -10 ÷ 40 ° C, RH <80%
Voltage stabilization
The output voltage is adjustable from 0 to 30V in a linear manner
Voltage stabilization factor 0.01% + 2mV
Load stabilization factor 0.01% + 2mV
Recovery time 100μs
Ripple and noise 0.5m Arms (effective value)
Current stabilization
The output current is adjustable from 0-5A in a linear way
Current stabilization factor 0.1% + 3mA
Load stabilization factor 0.2% + 3mA
Ripple and noise 2m Arms (effective value)
Package Includes:
1 x YH305D DC Power Supply
1 x Power Cable
1 x User Manual
1 x DC Cable Output Probe
