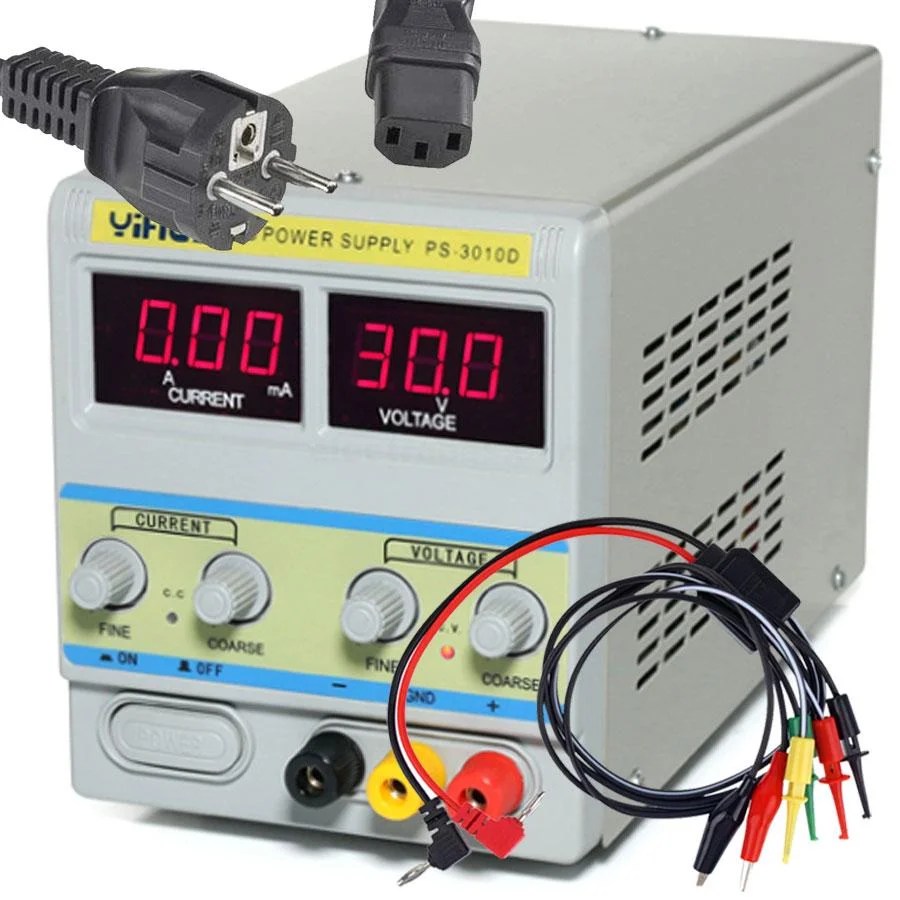

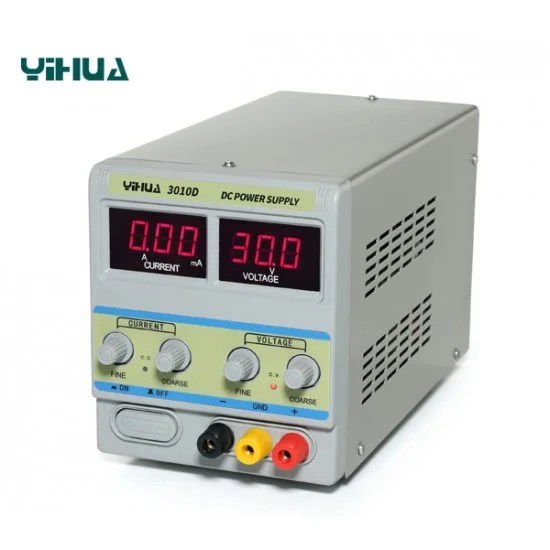

YIHUA YH-3010D DC Power Supply Precision Lab Variable 30V 10A Adjustable Regulated Supply
This YH-3010D or YH3010D variable voltage DC power supply unit now features a Dual LED display with highly accurate LED digital readout. This high voltage dc power supply which has maximum output 30V at 10A. This dc voltage supply has high stabilized output voltage. This best lab power supply short circuit protection. Overloading and current protection.
Features Of YIHUA YH3010D Variable Power Supply:
Output constant current adjustable
Output constant voltage adjustable
LED voltage and current display
Constant voltage and current operation in individual
Over-current protection
Current and voltage regulation are smooth and not gears regulation
Compact Design
All-Metal Construction
Dual LED Display
High Stabilized Output Voltage
Short Circuit Protection
Over Loading and Current Protection
Weight: 6.8kg
Specifications Of YH-3010D Digital Variable DC Power Supply:
Supply power: AC 220-240V, 50Hz/60Hz.
Working Temperature: -10°C ~ 40 °C
Relative Humidity: ‹ 90%
Storage Conditions: -10°C ~ 40 °C
Relative Humidity: ‹ 80%
Voltage Stability: ≤0.01% +2mV
Load Stability: ≤ 0.01% +2mV
Recovery Time: ≤100µS
Ripple Noise: ≤1 MVRMS(RMS)
Temperature Coefficient: ≤ 200PPM/°C
Power Stability: 0.1% + 3mA
Load Stability: 0.2% + 3mA
Ripple Noise: ≤2mAr
Application:
Products Related to Auto
Products Related to Electron
Products Related to Computer
Research Institutions
Educational Institutions can use it like a research equipment.
Characteristics:
High quality and reliability
Clear digital LED displays
Operation in voltage (CV) or current (CC) stabilization mode
Protection against short circuit and overload

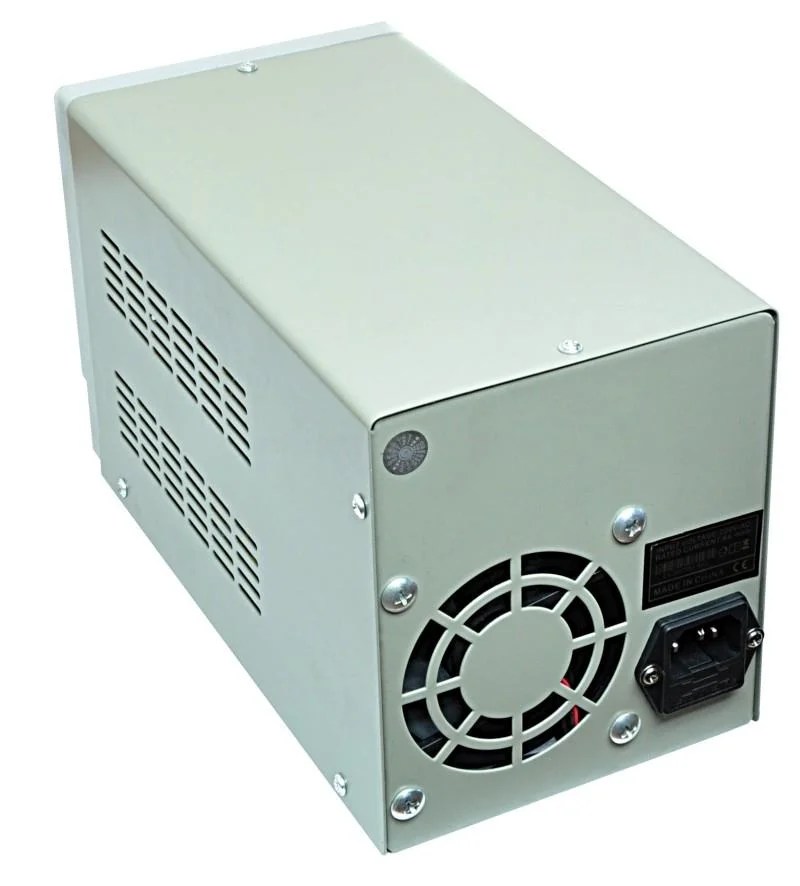

Built-in fan
Thermal fan switch
Ability to work with a current limitation of 990mA (indications with an accuracy of 1mA) and 5A (indications with an accuracy of 10mA)
Technical parameters
Supply voltage 220V AC ± 10%, 50 / 60Hz
Working environment -10 ÷ 40 ° C, RH <90%
Storage environment -10 ÷ 40 ° C, RH <80%
Voltage stabilization
The output voltage is adjustable from 0 to 30V in a linear manner
Voltage stabilization factor 0.01% + 2mV
Load stabilization factor 0.01% + 2mV
Recovery time 100μs
Ripple and noise 0.5m Arms (effective value)
Current stabilization
The output current is adjustable from 0-5A in a linear way
Current stabilization factor 0.1% + 3mA
Load stabilization factor 0.2% + 3mA
Ripple and noise 2m Arms (effective value)
Package Includes:
1 x YH3010D DC Power Supply
1 x Power Cable
1 x User Manual
1 x DC Cable Output Probe
