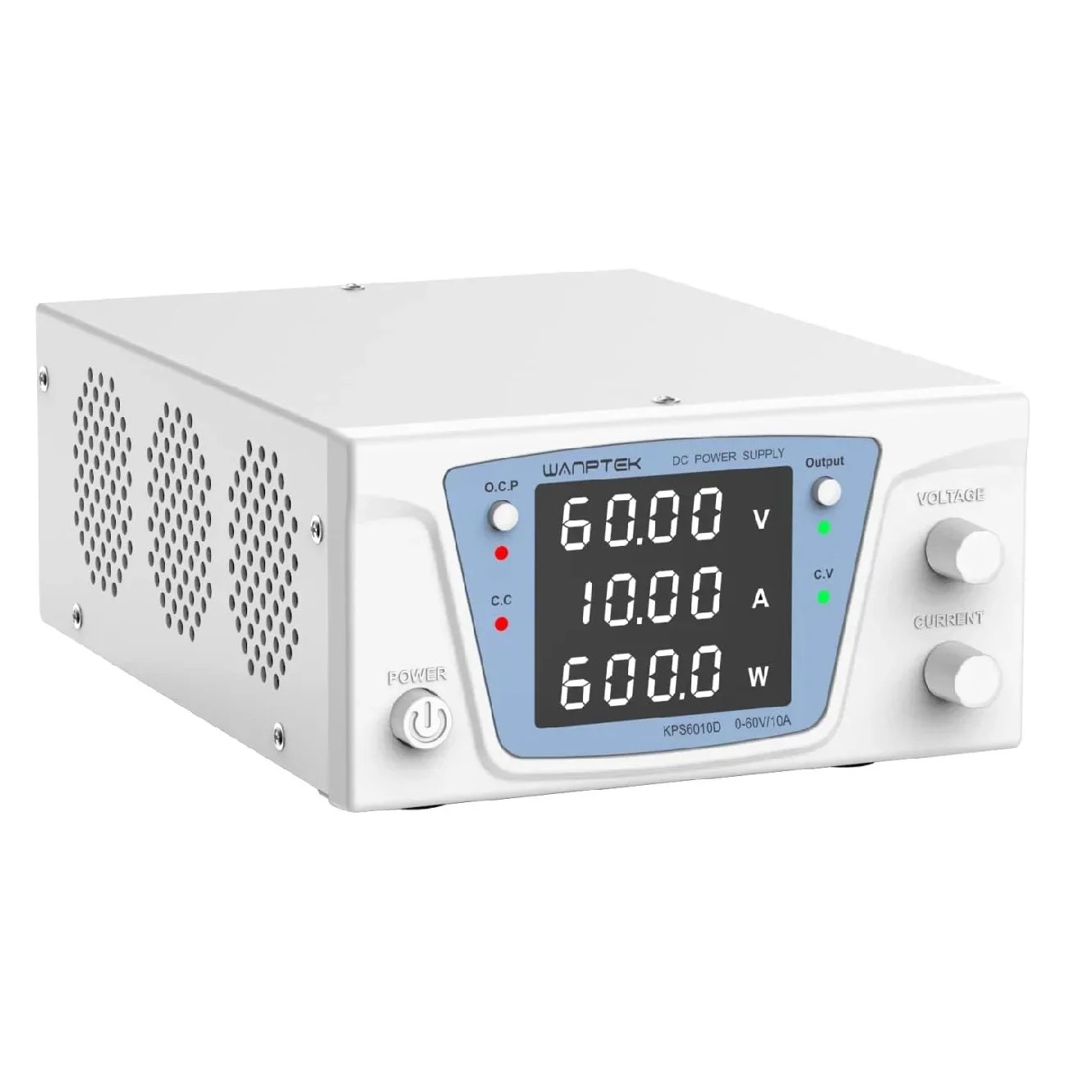

Wanptek KPS-6010D 60V 10A Direct Current Regulated Laboratory Power Supply
The Wanptek KPS-6010D (often written as KPS6010D) is a high-power, 600W adjustable switching DC bench power supply designed for laboratories, electronics repair, product aging tests, and R&D applications. It provides a continuously variable output of 0–60V and 0–10A.
Key Specifications:
Output Power: 600W maximum.
Voltage Range: 0 to 60 Volts DC.
Current Range: 0 to 10 Amperes.
Display: Clear, 4-digit digital tube display (0.56-inch) showing voltage and current simultaneously.

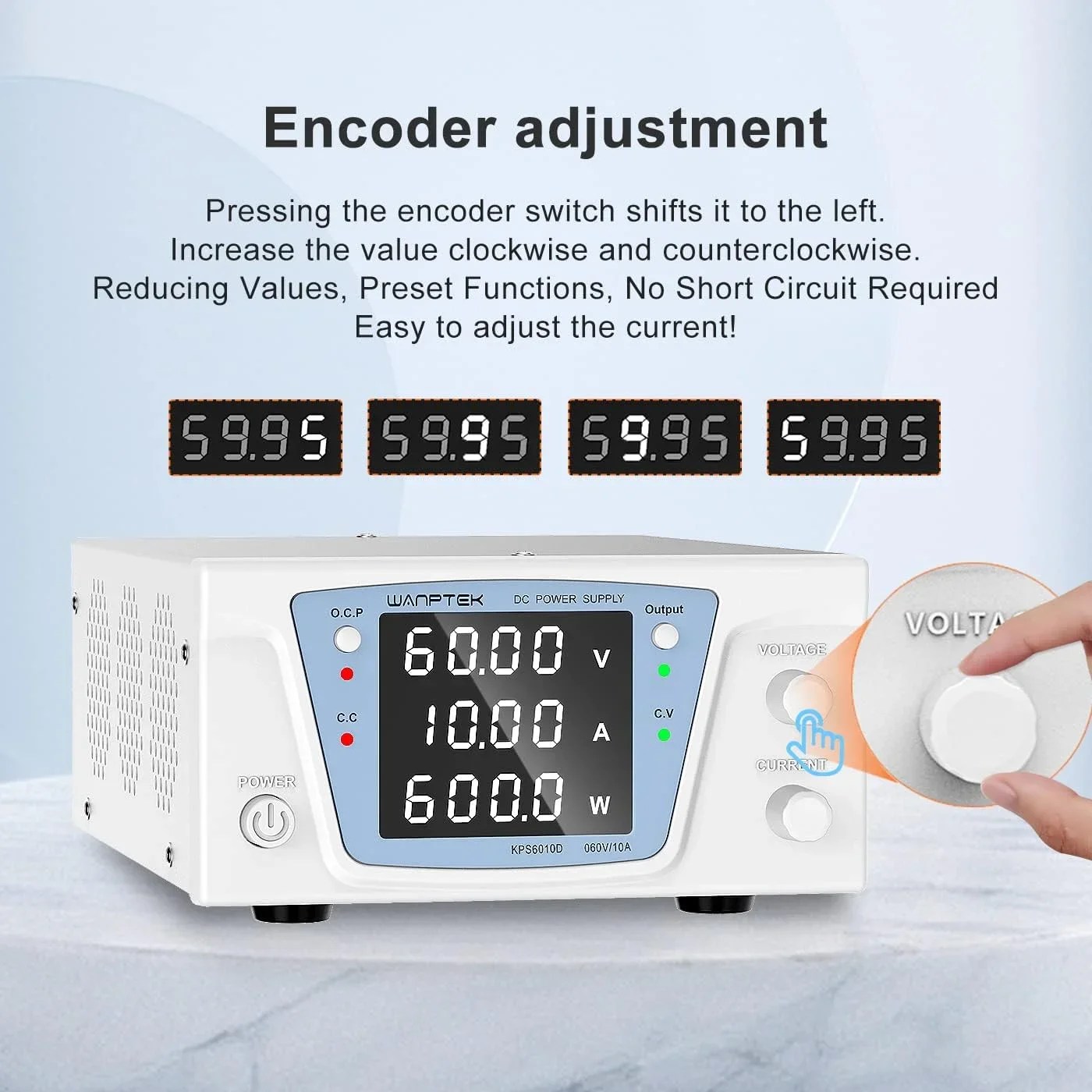

Control: Dual potentiometers or encoder knobs for high-precision coarse and fine tuning.

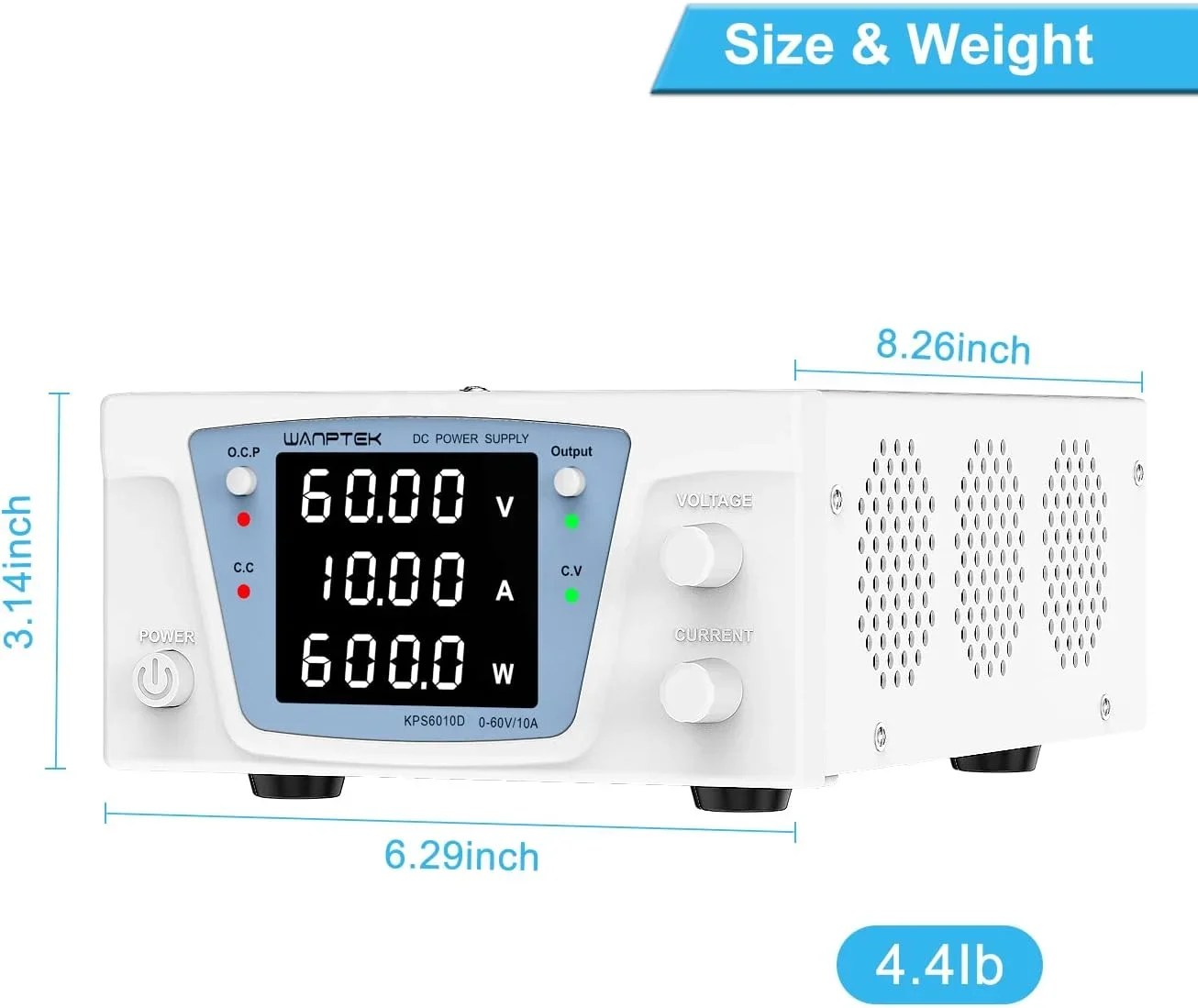

Dimensions: 210mm x 160mm x 80mm.
Net Weight: 2 kg (4.4 lbs).
Performance & Safety Features:
Complete Protection Suite: Features Over-Voltage Protection (OVP), Over-Current Protection (OCP), Overload Protection (OPP), and Over-Temperature Protection (OTP).

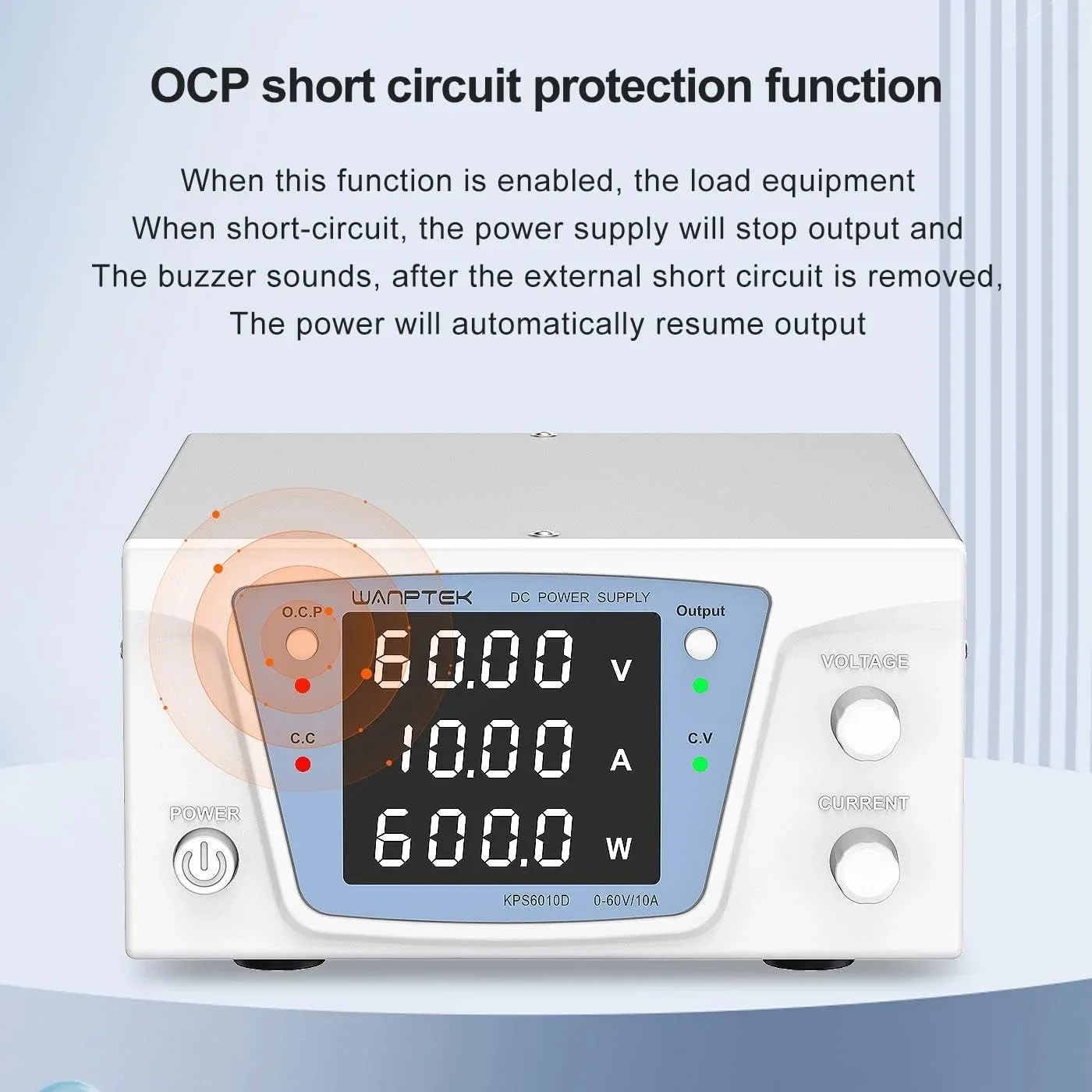

OCP Short-Circuit Alarm: When a short circuit occurs, the unit halts output and triggers an audible beep. It automatically resumes output once the short circuit is safely removed.
Intelligent Cooling: Built-in temperature-controlled fan operates at low noise and scales up speed automatically under high-load conditions.
Dual Modes: Seamlessly transitions between Constant Voltage (CV) and Constant Current (CC) states based on your load requirements.

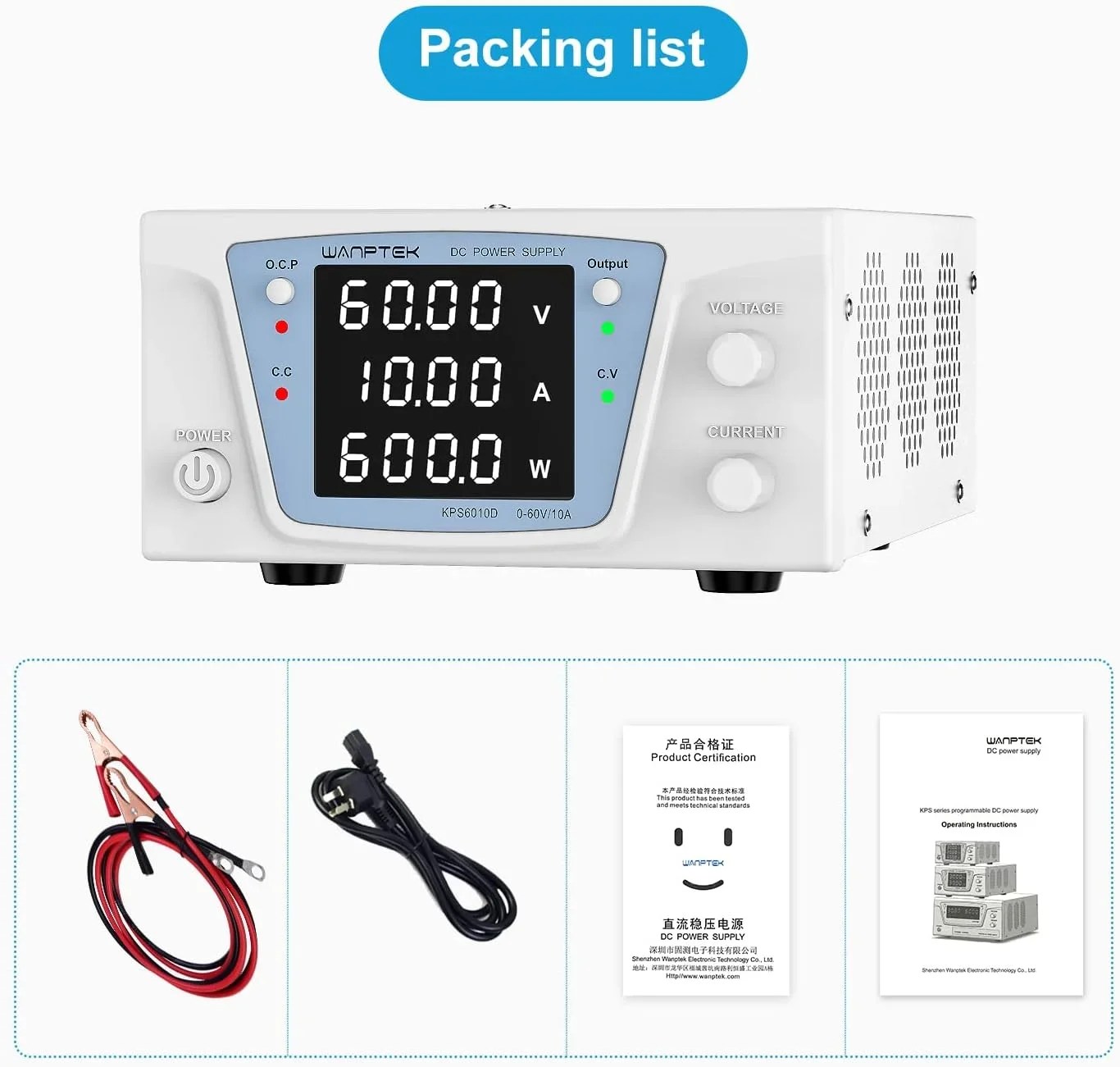

Package Included:
– 1 x Power supply
– 1 x Power cable
– 1 x Instructions
– 2 x Output terminals
– 1 x Product quality certificate
Packaging Details:
– G.W.: 2.5kg
– Packaging size: 300mm x 210mm x 135mm
