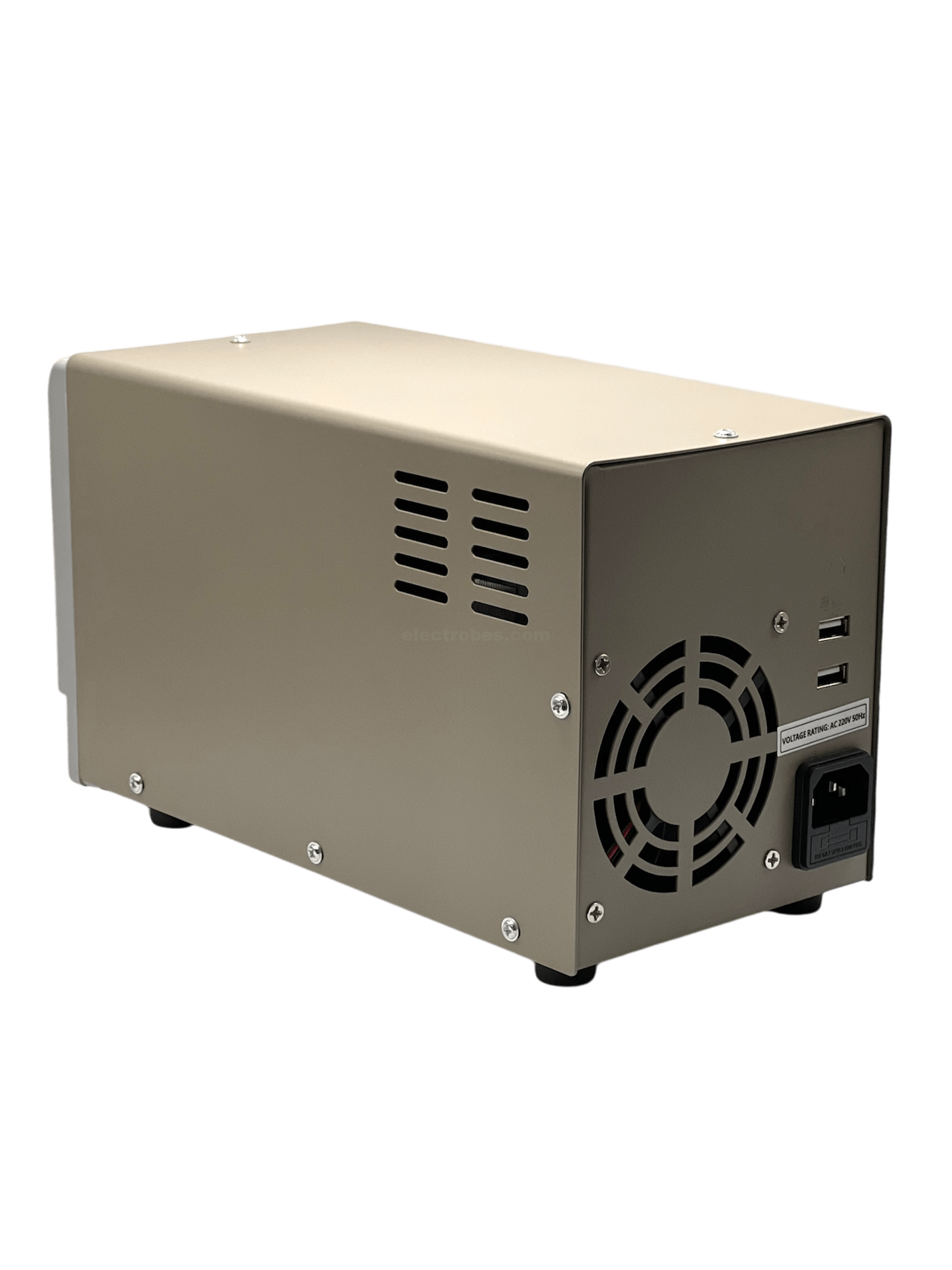

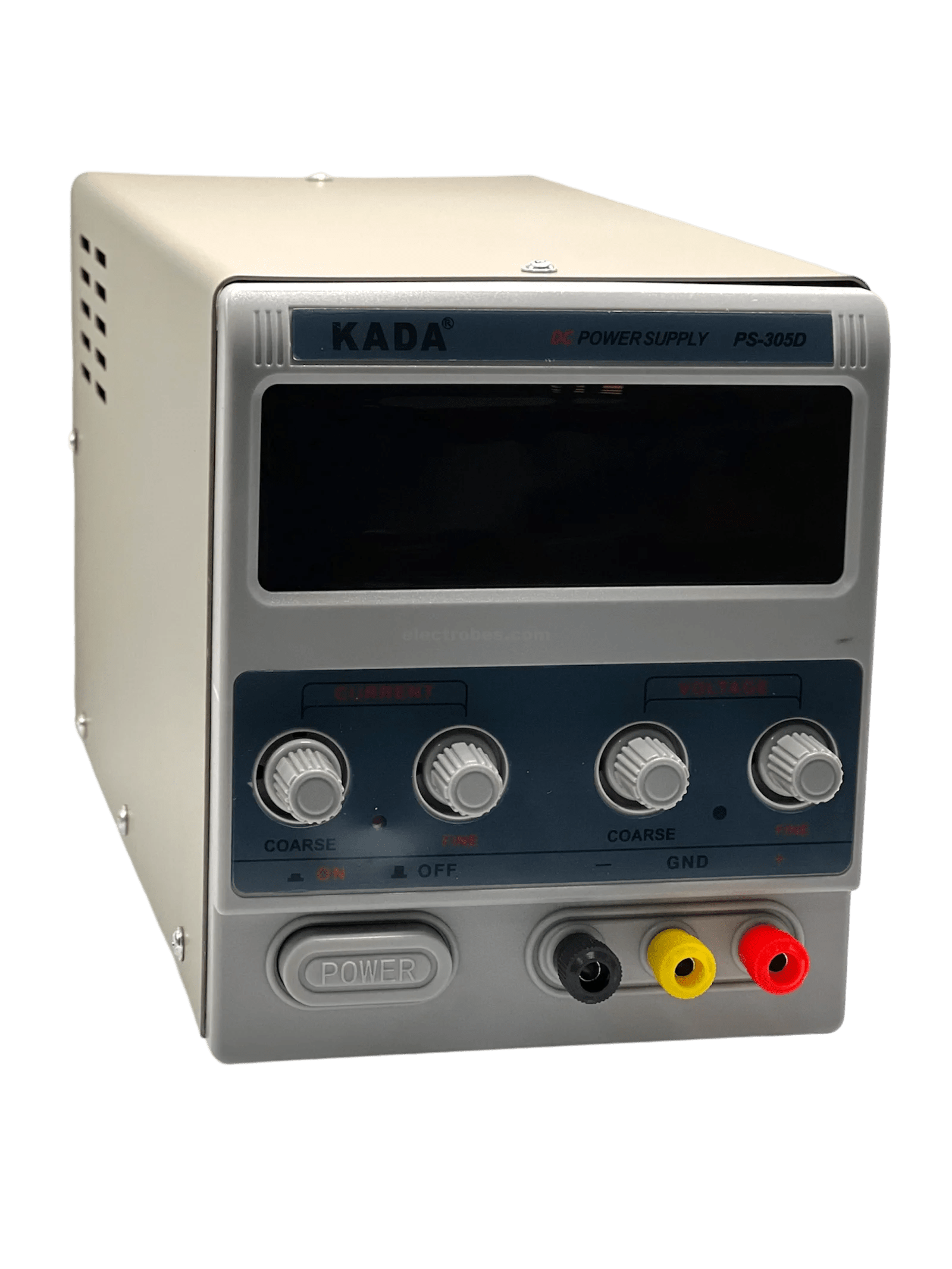

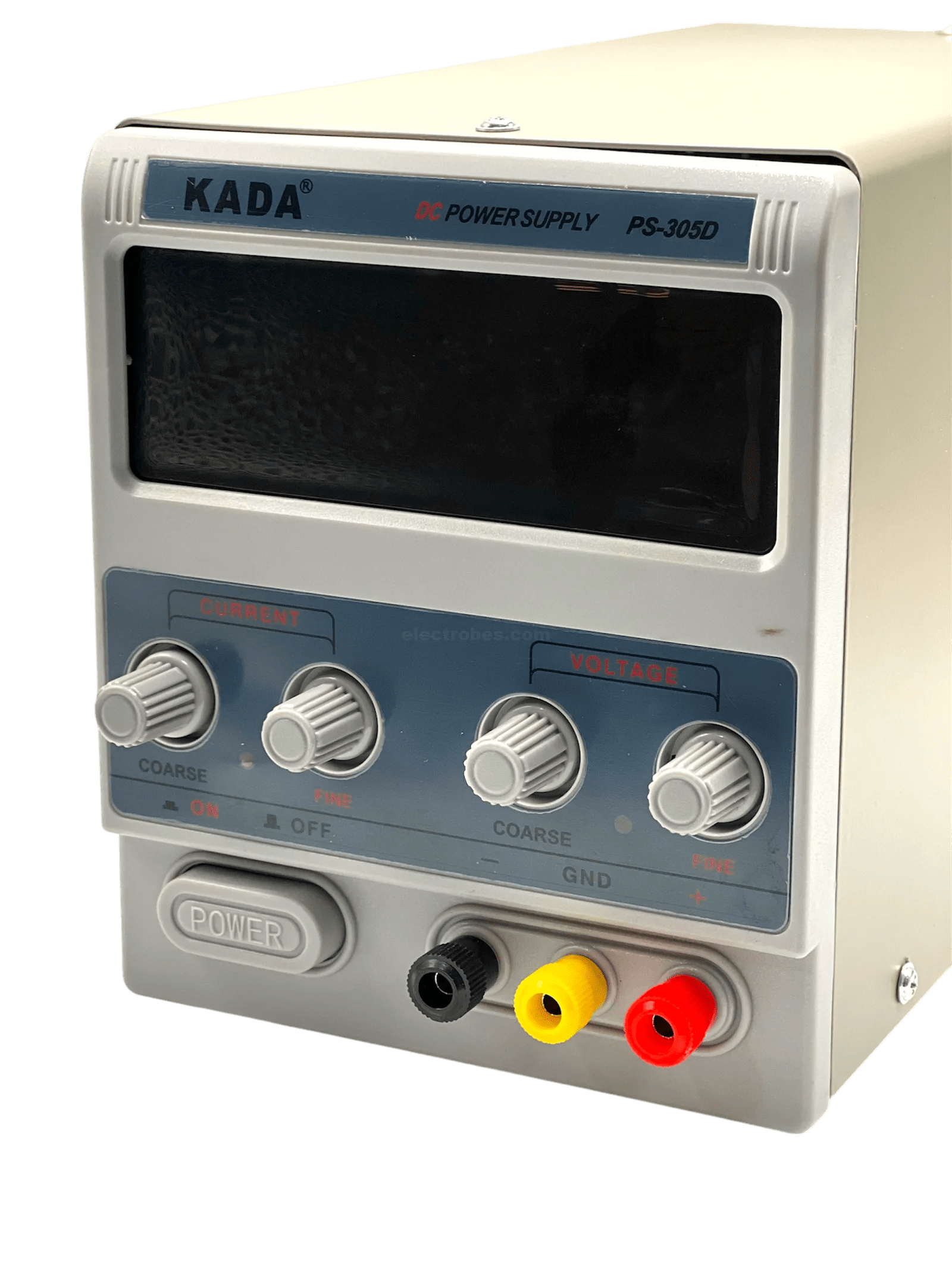

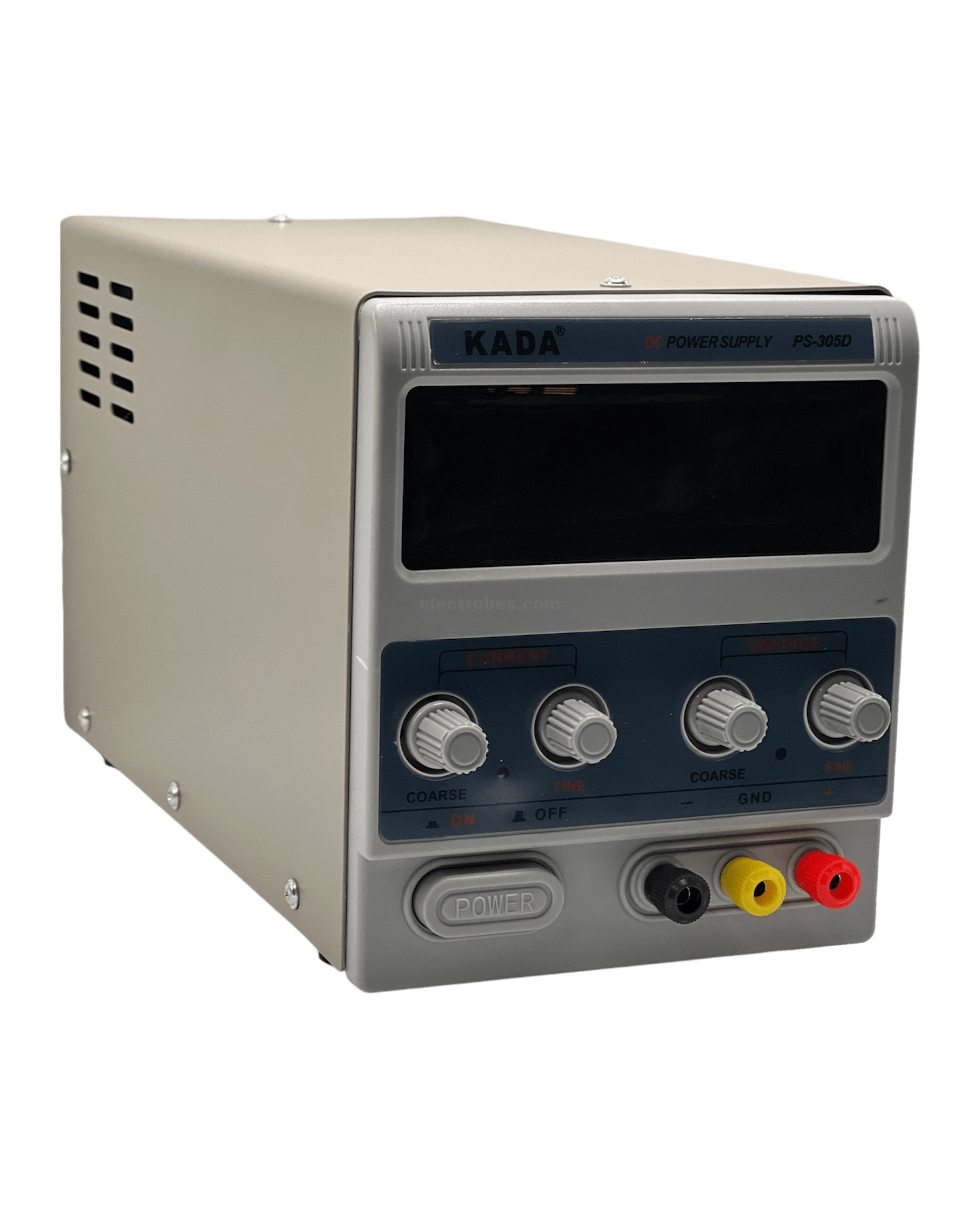

Volder PS-305D Adjustable DC Power Supply (0~30V/5A)

KADA PS-305D Adjustable DC Power Supply 0~30V DC Regulated Laboratory Power Supply 0-5A
Description
The KADA PS-305D is a compact and reliable DC power supply, commonly used in laboratories, workshops, and by hobbyists for various electronics projects. It provides adjustable voltage and current outputs, making it versatile for a range of applications.
Features:

Adjustable Output:

Voltage Range: 0-30V
Current Range: 0-5A
Easy-to-use knobs for precise adjustments.

Dual LED Display:

Displays both the set and actual voltage/current simultaneously for easy monitoring.

Protection Features:

Overload and short circuit protection to prevent damage to the unit and connected devices.

Cooling System:

Built-in cooling fan to maintain optimal operating temperature during extended use.

Output Terminals:

Multiple outputs for easy connection to test leads or devices.

Power Modes:

Constant Voltage (CV) and Constant Current (CC) modes to accommodate different testing needs.

Calibration Capability:

Allows for fine-tuning to ensure accurate output readings.

Specifications:

Input Voltage: AC 110V/220V (selectable)
Output Voltage: 0-30V adjustable
Output Current: 0-5A adjustable
Ripple Voltage: ≤ 1mV (no load)
Load Regulation: ≤ 0.01% + 3mV
Line Regulation: ≤ 0.01% + 2mV
Efficiency: Approximately 85%
Operating Temperature: 0°C to 40°C
Dimensions: Approximately 210mm x 130mm x 240mm
Weight: Around 3-4 kg

Usage Instructions:

Setup:

Connect the power supply to a suitable AC outlet (ensure correct voltage selection).
Turn on the power supply using the main switch.

Adjusting Output:

Use the voltage knob to set your desired output voltage.
Use the current knob to set the maximum current limit.

Connecting Devices:

Use appropriate leads to connect the power supply’s output terminals to your device or circuit.
Ensure correct polarity (positive to positive and negative to negative).

Monitoring:

Observe the dual LED displays to ensure the output is stable and within desired parameters.

Safety Precautions:

Avoid shorting the output terminals.
Do not exceed the rated voltage or current limits to prevent damage.
Allow the unit to cool down if it overheats.

Switching Modes:

If using in constant current mode, the supply will limit the current output to the set value, adjusting the voltage as necessary.

Applications:

Powering prototypes and circuits during testing.
Charging batteries.
Providing power for electronics experiments and educational projects.

Package Includes:
1 x Kada 305D 30V/5A regulated power supply
