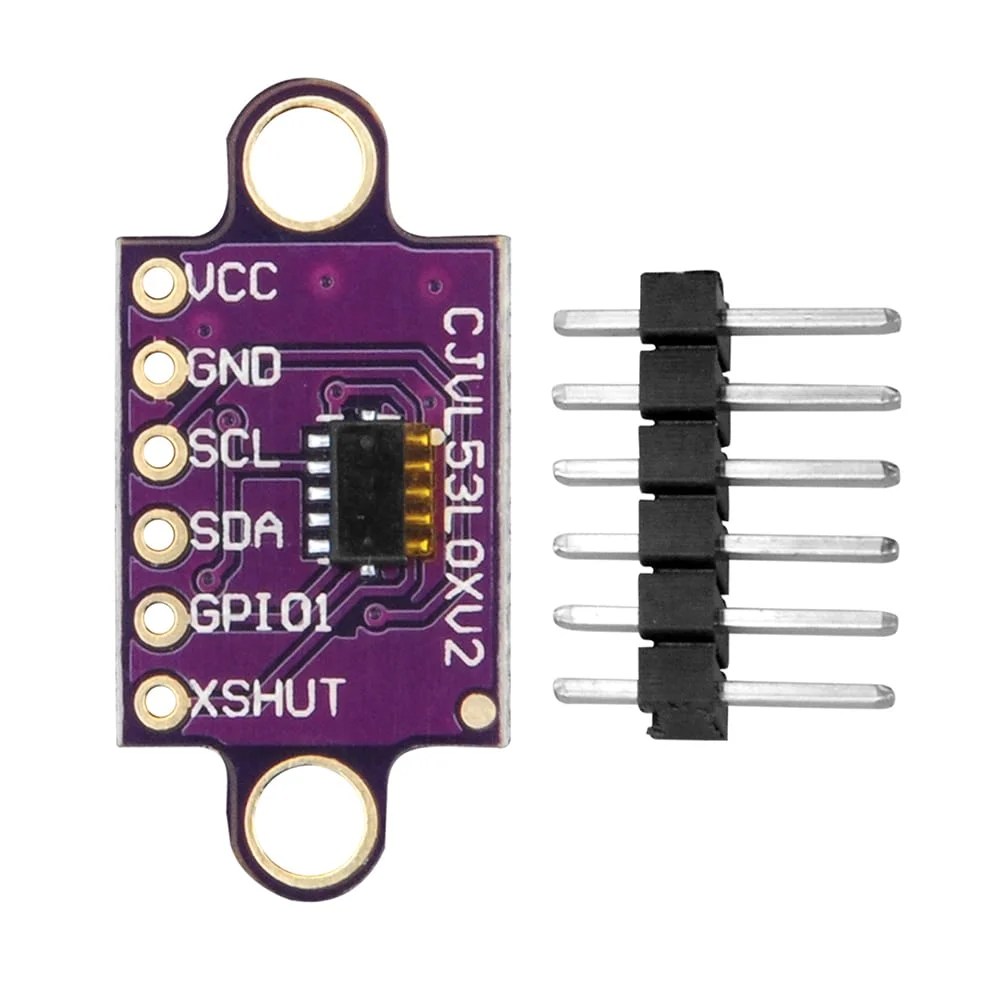

VL53L0X Time-of-Flight Distance Sensor Flight Measurement ToF Sensor Module

VL53L0X Time-of-Flight Distance Sensor Flight Measurement ToF Laser Range Finder 940nm Laser Detect Module for Arduino
Product Description:
The VL53L0X Time of Flight Distance Sensor is a compact and high-precision laser ranging module capable of measuring distances using advanced Time-of-Flight (ToF) technology. Unlike traditional infrared sensors, the VL53L0X accurately measures distance by calculating the time taken for a laser pulse to reflect back from an object.
This sensor provides fast, accurate, and reliable distance measurements with excellent ambient light immunity. It communicates via the I2C interface, making it easy to integrate with Arduino, Raspberry Pi, ESP32, STM32, and other microcontrollers.
Its small size, low power consumption, and precise ranging capability make it ideal for robotics, obstacle detection, gesture recognition, automation systems, drones, and smart devices.
 Specifications:

Sensor Model: VL53L0X
Measurement Technology: Time-of-Flight (ToF) Laser Ranging
Communication Interface: I2C
Operating Voltage: 2.6V – 5V DC
Logic Level: 3.3V / 5V compatible
Measurement Range: Up to 2 meters (typical)
Resolution: Millimeter-level accuracy
Laser Type: VCSEL (Vertical Cavity Surface Emitting Laser)
Field of View (FoV): Approx. 25°
Operating Temperature: -20°C to +70°C
Power Consumption: Low power operation
Board Type: Compact breakout module

 Key Features:

 Accurate Distance MeasurementUses laser Time-of-Flight technology for precise ranging.
 Fast Response TimeProvides quick and stable distance readings.
 Ambient Light ImmunityPerforms better than traditional IR sensors in varying lighting conditions.
 I2C Communication InterfaceEasy integration with popular microcontrollers and development boards.
 Compact & Lightweight DesignSuitable for portable and embedded applications.
 Low Power ConsumptionIdeal for battery-powered projects.
 Perfect for Robotics & AutomationUseful for obstacle avoidance, gesture sensing, and smart systems.
 Easy to ProgramCompatible with Arduino and Raspberry Pi libraries.

Main Components & Usage

I2C Address: Default is 0x29, but it can be changed via software, allowing for multiple sensors on the same bus.
XSHUT (Shutdown) Pin: Used for resetting and changing the I2C address for multiple sensors.
Applications: Ideal for robotics obstacle detection, user detection for personal computers, and 1D gesture recognition
