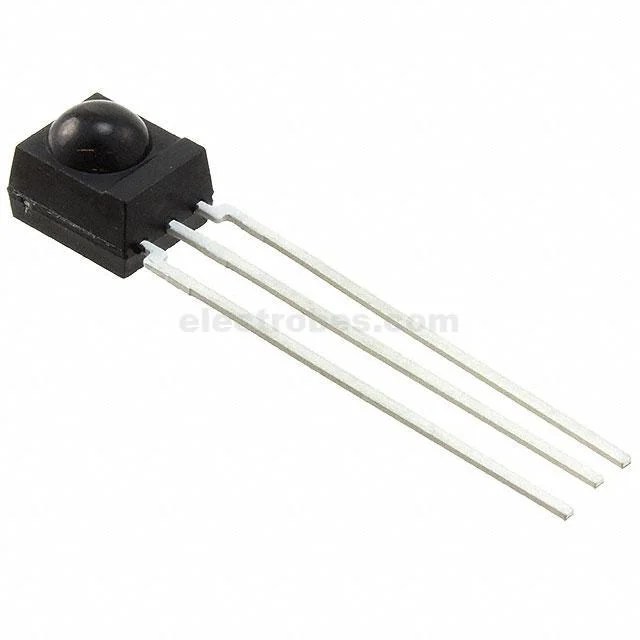

Universal IR Infrared Receiver TSOP1838 38Khz

₨48.00

RoHS Compliant
Beam Angle: 45 deg
Carrier Frequency: 38 kHz
Transmission Distance: 25 m
Viewing Angle: 45 deg
High Level Pulse Width: 0.8 ms
Low Level Pulse Width: 0.8 ms
Minimum High Level Output Voltage: 100 mV
Output Current: 5 mA
Operating Supply Voltage: 2.5 V to 5.5 V
Supply Current: 700 uA
Power Dissipation: 10 mW
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: – 25 C
Package / Case: Side Looker
Mounting Style: Through Hole

This is a lone infra-red sensor for use with an Arduino or Raspberry Pi. It can be used to decode infra-red signals from remote controls such as a TV remote or some RC vehicle remotes. It is especially designed to be reliable and easy to use with infra-red filters and a pre-amplifier IC built in. The infra-red sensor is just the sensor and you will need to connect it to the appropriate input and output pins on the Arduino or Raspberry Pi for it to function. This is simple as it only has 3 connections, power, ground, and signal out. This sensor is only a receiver and not a transmitter!

Features

Photo detector and preamplifier in one package
Internal filter for PCM frequency
Inner shield, good anti-interference ability
High immunity against ambient light
Improved shielding against electric field disturbance
3.0V or 5.0V supply voltage; low power consumption
TTL and CMOS compatibility
8ms data pause time codes are acceptable
