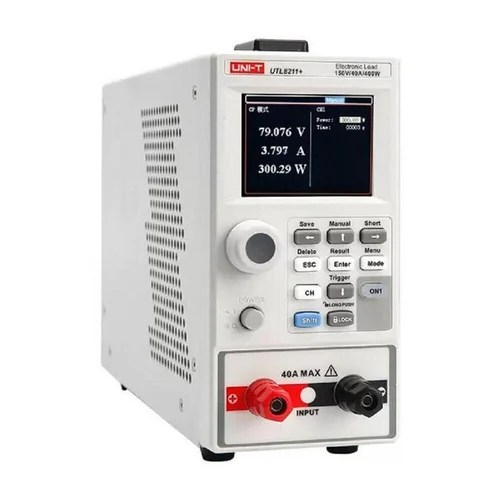

UNI-T UTL8211 High-Precision Compact DC Electronic Load Tester Single Channel 400W Power Supply Current Detector
The UTL8200 series electronic load is equipped with a 2.8-inch LCD display, which is convenient and simple to operate, stylish and generous, stable in operation, has a wide power measurement range, voltage and current measurement speeds up to 40kHz, and a test resolution of up to 1mV/1mA, with rich test functions and modes, and standard RS-232C communication interface, flexibly meet various on-site test conditions, and realize seamless connection with automated production lines and automatic test systems (ATS). With a wide range of power measurement, voltage and current measurement speed up to 40kHz, test resolution up to 1mV/1mA,the UTL8200 series is a cost-effective DC load with performance specifications that rival any instrument in its class.
Features:
UTL8211: Single channel 150V /40A, 400W
CC/CV/CR/CP four basic modes
1mV/1mA high resolution
Dynamic current test
Voltage and current measurement speed up to 40kHz
Multi-mode battery discharge test
List mode, support automatic test
Independent short circuit test function
Various protections such as over voltage, low voltage, over current, over power, over heat, anti-reverse connection etc.
Supporting PC software to realize remote operation and monitoring
Power-off memory function
Intelligent temperature control fan
Standard RS-232C interface, support SCPI protocol
UNI-T UTL8211 Documents:
UNI-T UTL8211 user manual
