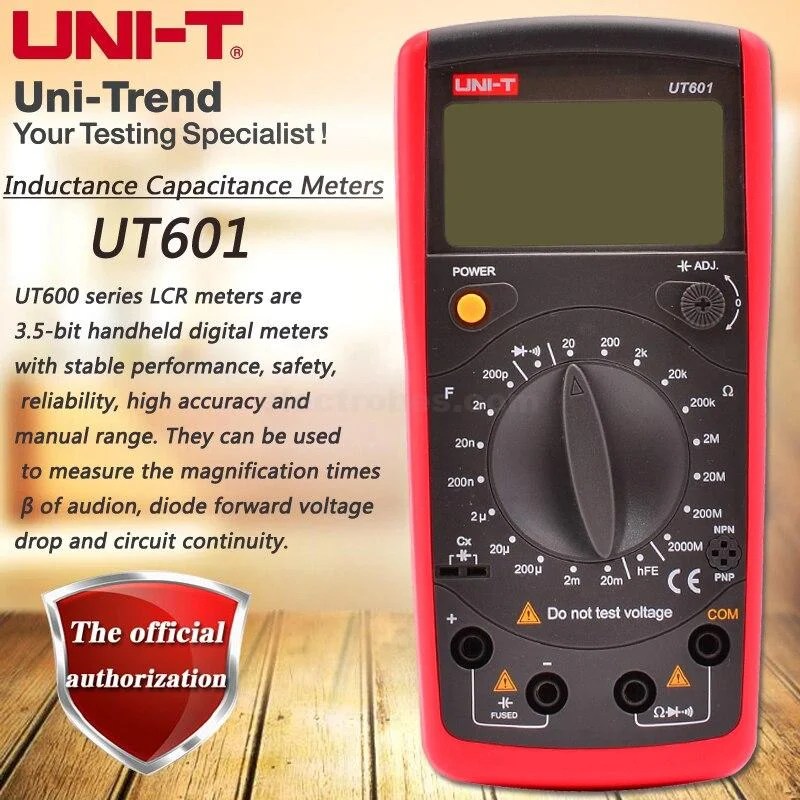

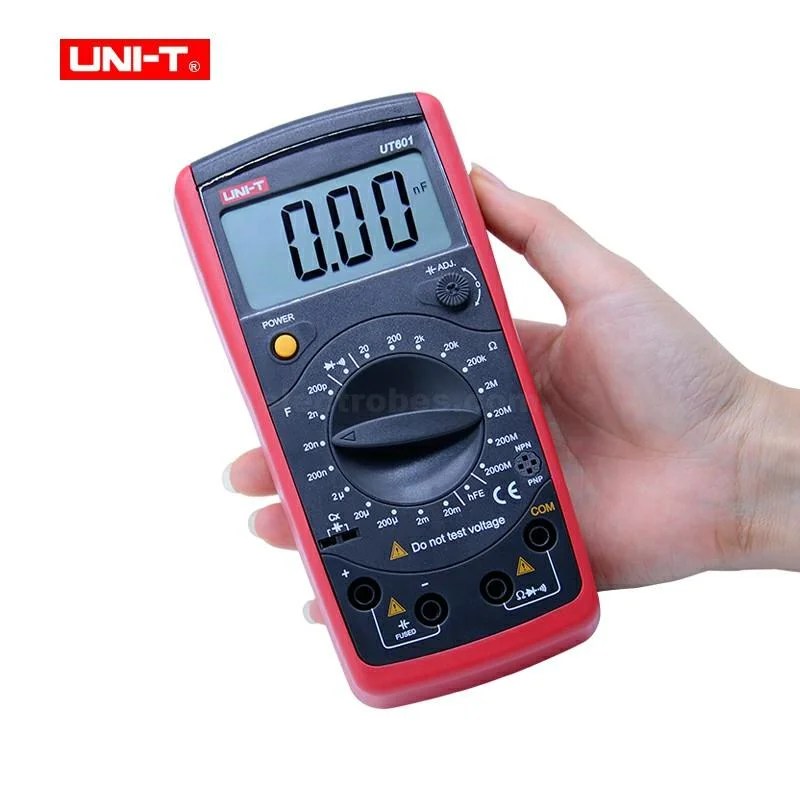

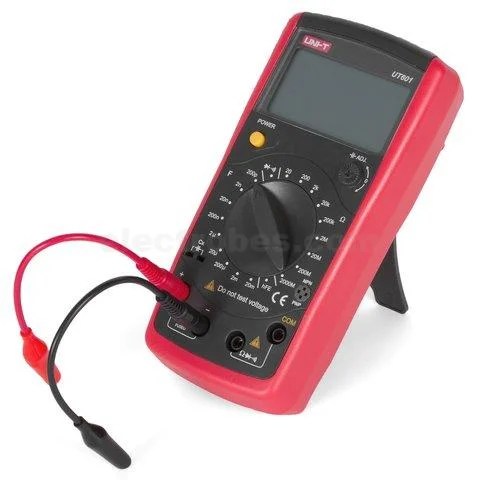

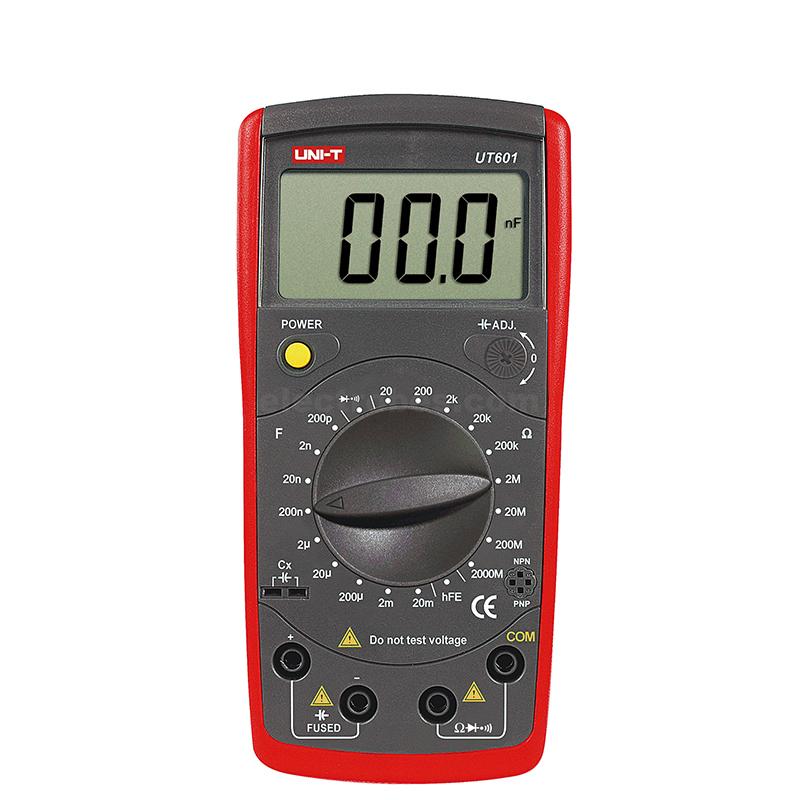

UNI-T UT601 Digital Inductance Capacitance LCR Meter

UNI-T UT600 UT601 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters.
FEATURES

Functions:

resistance
capacitance
continuity test (with buzzer)
diode test
transistor test

Manual ranging
Low battery indication

TECHNICAL SPECIFICATIONS

Display
3½ (1999) digit LCD, 61 × 32 mm

Resistance
Range
20 Ω / 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ / 2000 MΩ

Accuracy
±(0.8%+1)

Capacitance
Range
200 pF / 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2 mF / 20 mF

Accuracy
±(1%+5)

Sampling rate
2-3x/s

Power
9V battery: NEDA 1604, 6F22 or 006P

Dimensions (H × W × D), mm
172 × 83 × 38

Weight, g
312

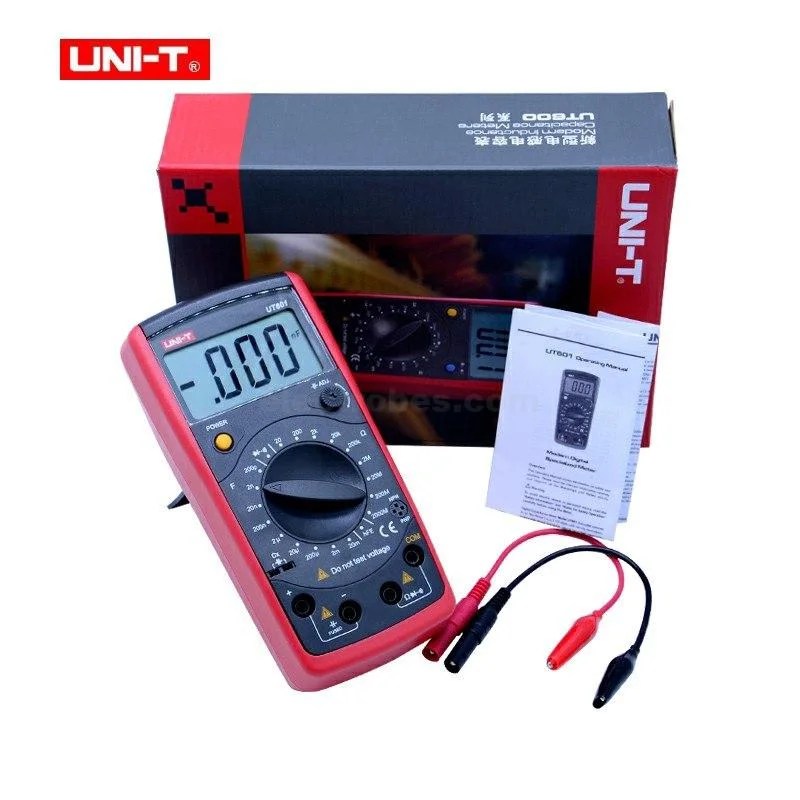

PACKAGE CONTENTS

UNI-T UT601 Inductance Capacitance LCR Meter — 1 pc.
Test clip — 1 set.
User manual — 1 pc.

Note! Batteries are not included in the package.
