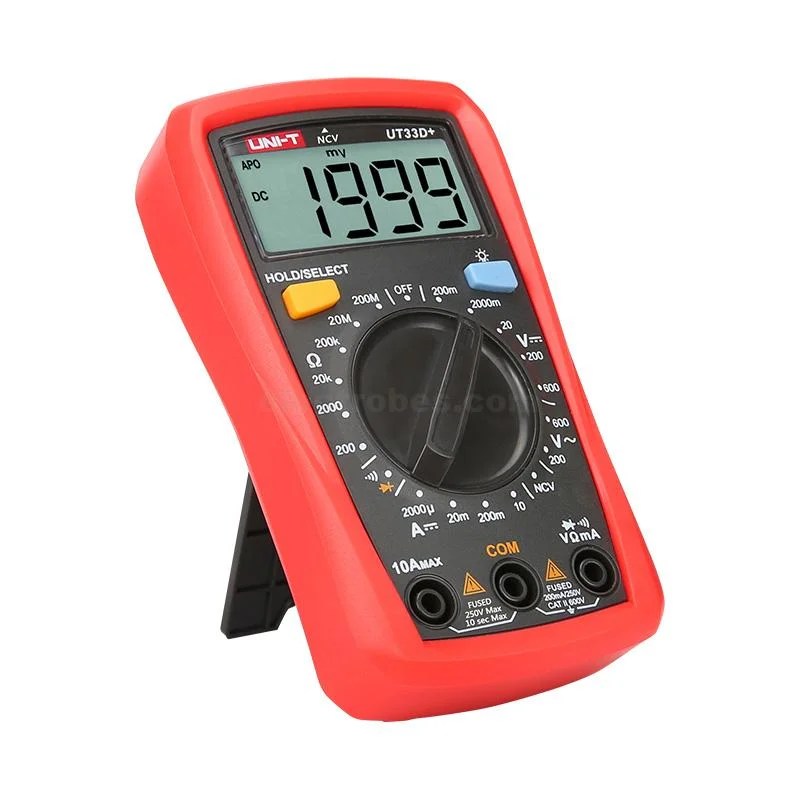

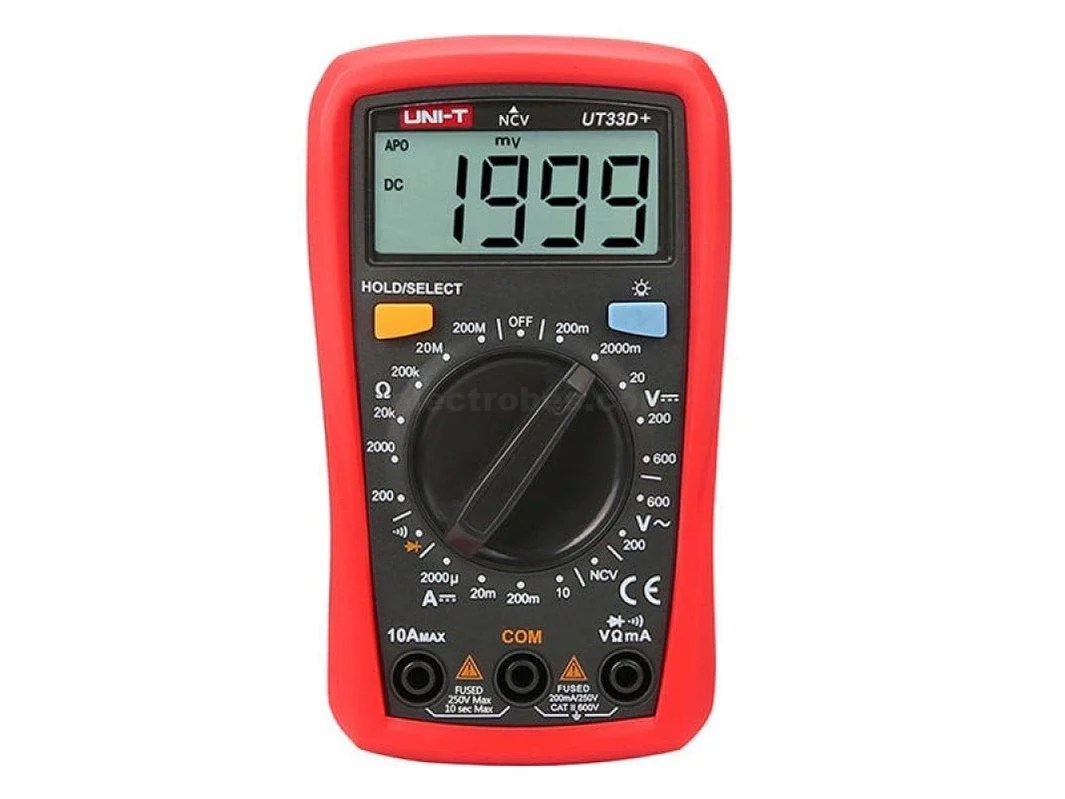

UNI-T UT33D+ Palm Size Digital Multimeter

UNI-T UT33D+ Palm Size Digital Multimeter DMM
The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment. Special features are, 2mF capacitance test (UT33A+); battery test (UT33B+); temperature measurement function (UT33C+); UT33D + for the NCV non-contact with electricity, resistance range up to 200MΩ entry-level digital multimeter; is the electrical priority of the digital multimeter.
UNI-T UT33D+ is a pocket size digital multimeter which can measure AC/DC voltage, DC current, resistance, tests diodes and checking continuity, non-contact voltage detection (NCV).
Features  of UNI-T UT33D+ Digital Multimeter:

Measurement functions:

AC/DC voltage
DC current
resistance
continuity test (with buzzer)
diode test
non-contact voltage detection (NCV)

Data Hold function
Low battery indication

Technical Specifications

Display
1999 digit LCD, backlight, 48 × 16 mm

DC voltage
Range
200 mV / 2000 mV / 20 V / 200 V / 600 V

Accuracy
±(0.5%+2)

AC voltage
Range
200 V / 600 V

Accuracy
±(1.2%+10)

DC current
Range
2000 µA / 20 mA / 200 mA / 10 A

Accuracy
±(1%+2)

Resistance
Range
200 Ω / 2000 Ω / 20 kΩ / 200 kΩ / 20 MΩ / 200 MΩ

Accuracy
±(0.8%+2)

Power
9 V battery (6F22)

Dimensions
130 × 73.5 × 35 mm

Weight
156 g

Special Functions of UNI T UT 33D+ DMM:

Low Battery Indicator: Yes
Diode Test: Yes
Continuity Buzzer: Yes
Operation Method: Auto Range
Powered by: 2 x AAA Battery

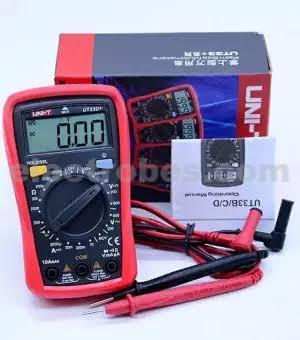

Package Contents

Multimeter UNI-T UT33D+ (1 pc.)
Test leads (1 pair)
User manual (1 pc.)
