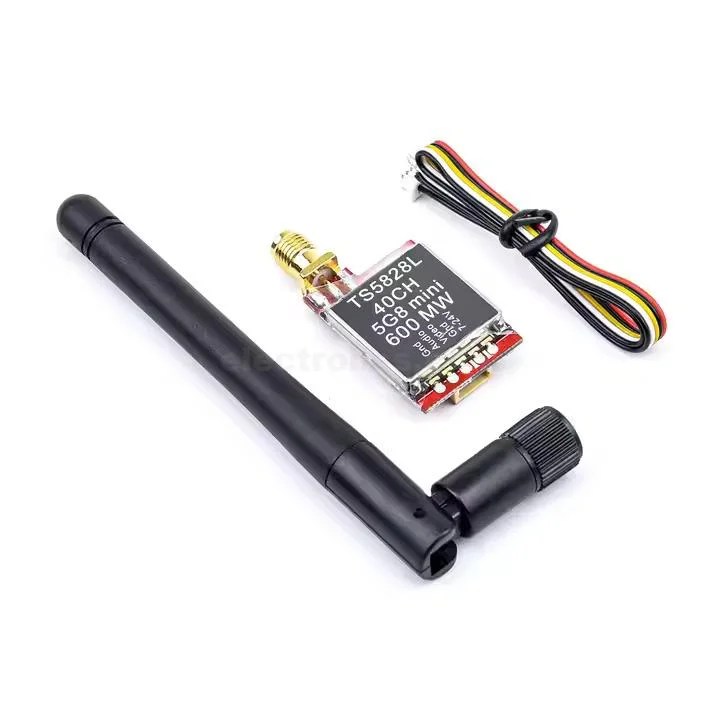

The TS5828 Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS5828 is transmitting a full range of 40 channels and uses an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at a scant 7grams, it’s Perfect for a wide range of aircraft!
Features:
40 channels: Cover A, B, C,D,E bands and F bands
Power off memory for last channel and band
Specifications:
Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack
Power input: 7-12V (3S Lipoly suggested)
Transmitting power: 600mW
Antenna gain: 2dbm
Working current: 310mA at 12V
Video bandwidth: 8Mhz
Audio bandwidth : 6.5Mhz
Weight: 7g(without antenna)
Dimension: 23x 25x 7.7mm(excluding antenna)
Package Included:
1x TS5828 transmitter
