₨36.00
NPN medium power transistor
Collector-Emitter Saturation Voltage – VCE(sat) = 1.5 V
Collector-Emitter voltage = 40V
IÂ CÂ min: 0.5A
IÂ CÂ max: 6A
I C peak max: 10 A (t p <5ms)
IÂ BÂ max: 3A
PÂ TOTÂ : 65W
VÂ CEOÂ : 100V, VÂ CBOÂ : 100V, VÂ EBOÂ : 5V
h FE : 15 to 75 (@ I C = 3A, V CE = 4V )
High suicheo speed
Complementary:Â TIP42C
Encapsulated: TO-220

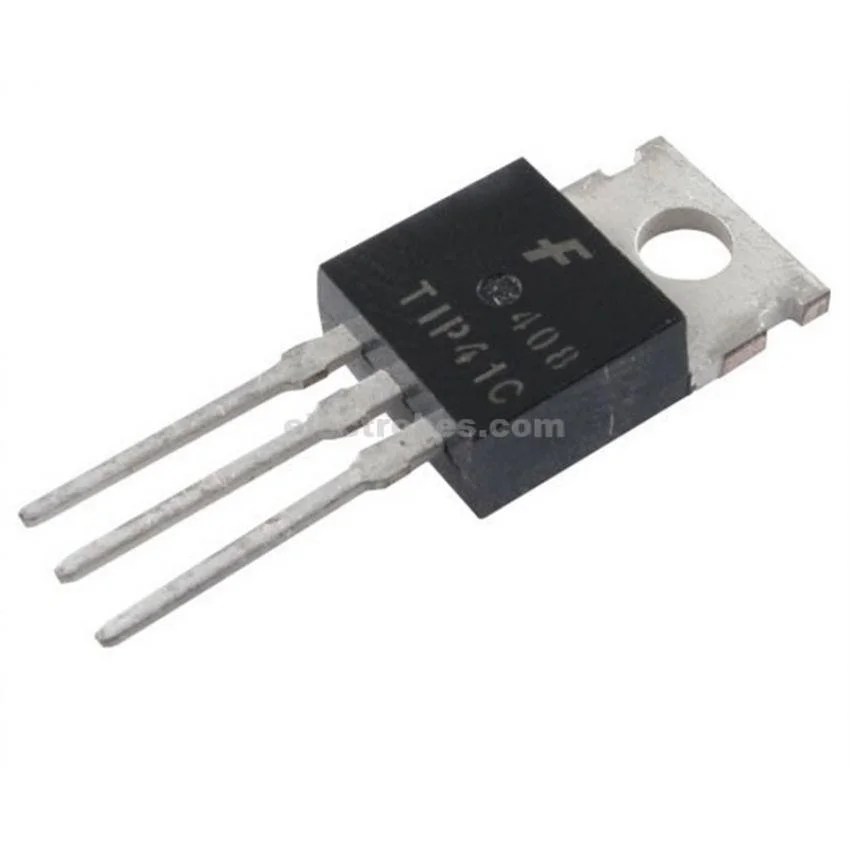

The TIP41C is a base island technology NPN power transistor in TO-220 plastic package that make this device suitable for audio, power linear and switching applications.
Features:
NPN medium power transistor
High suicheo speed
Complementary: TIP42C
Encapsulated: TO-220
Applications:
Switching and linear power amplification
Audio amplifiers
General Purpose Circuits
