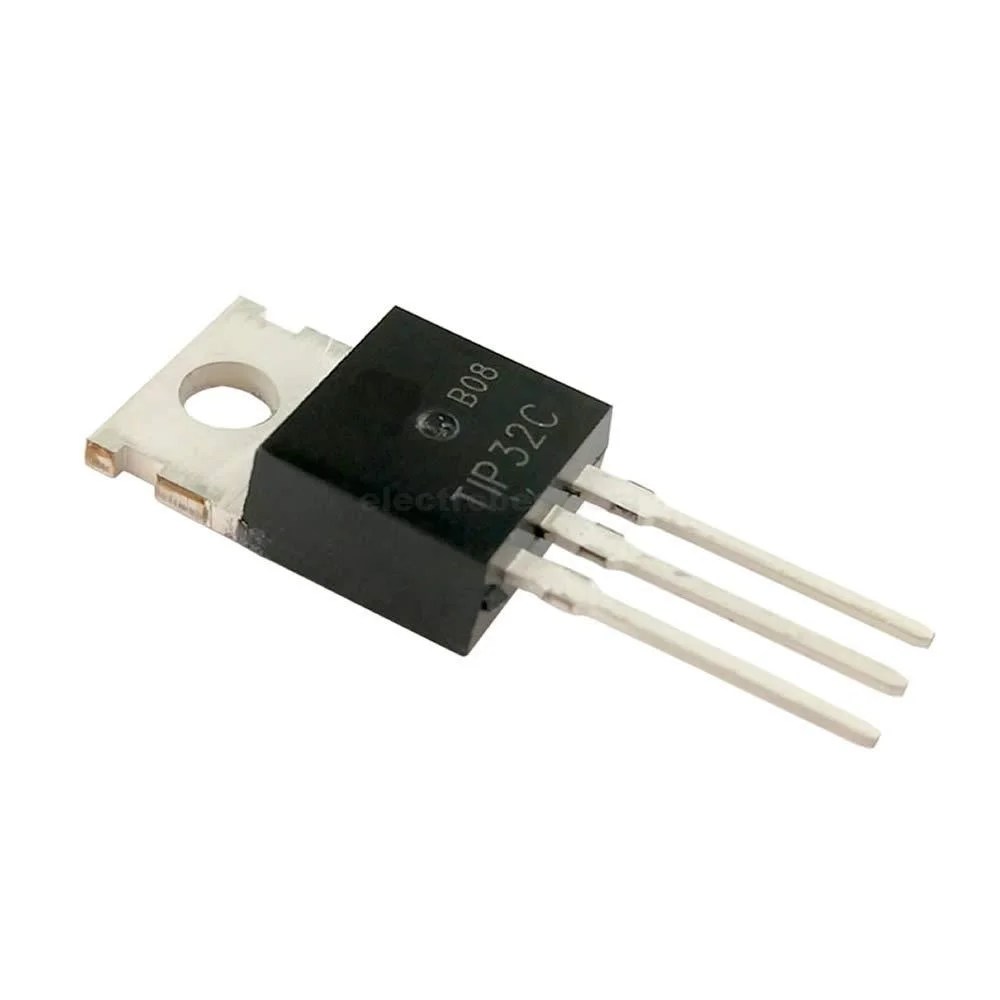

TIP32C is another must have transistor in your electronics lab. It is a low cost power transistor that can serve many general purpose switching and amplification applications. The maximum load this transistor can handle is 3A and the maximum peak current it can handle is 5A, the peak current is the current the transistor cannot handle continuously but in pulses. The maximum load voltage limit is 100V. Other than that it can also serve as an amplifier, the max collector dissipation is 40W which also makes this transistor ideal to use in audio amplifier stages and also as separate amplifier to drive speaker. The metal can tab or the heatsink connection tab is also connected with the collector of the transistor.
Features / Technical Specifications

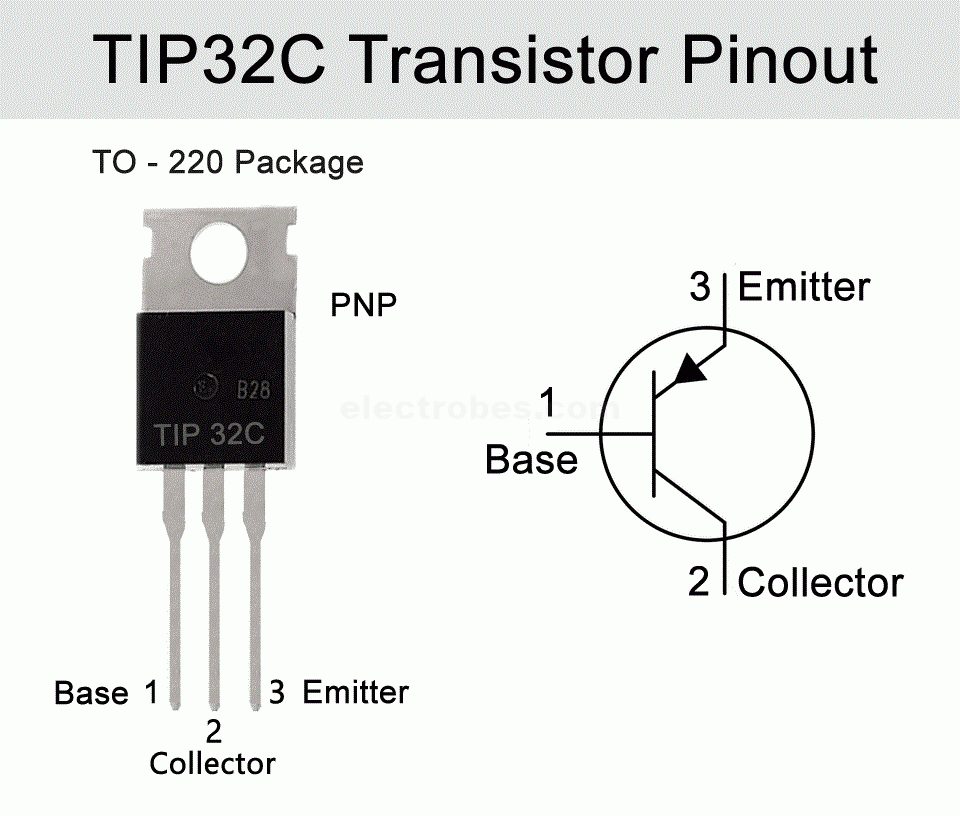

Package Type:Â TO-220
Transistor Type:Â PNP
Max Collector Current(IC): –3A or -3000mA
Max Collector-Emitter Voltage (VCE): –100V
Max Collector-Base Voltage (VCB): –100V
Max Emitter-Base Voltage (VEBO): –5V
Max Collector Dissipation (Pc):Â 40W
Max Transition Frequency (fT):Â 3 MHz
Minimum & Maximum DC Current Gain (hFE): 10 – 50
Max Storage & Operating temperature Should Be:Â -65 to +150 Centigrade
NPN Complementary
NPN Complementary of TIP32C is TIP31C
Applications
Separate Audio Amplifier
Audio Amplifier Stages
For Handling 3A Load
DC Motors Driver and Controller
Darlington Pairs
Output of Arduino, Raspberry Pi and other Electronic Platforms
