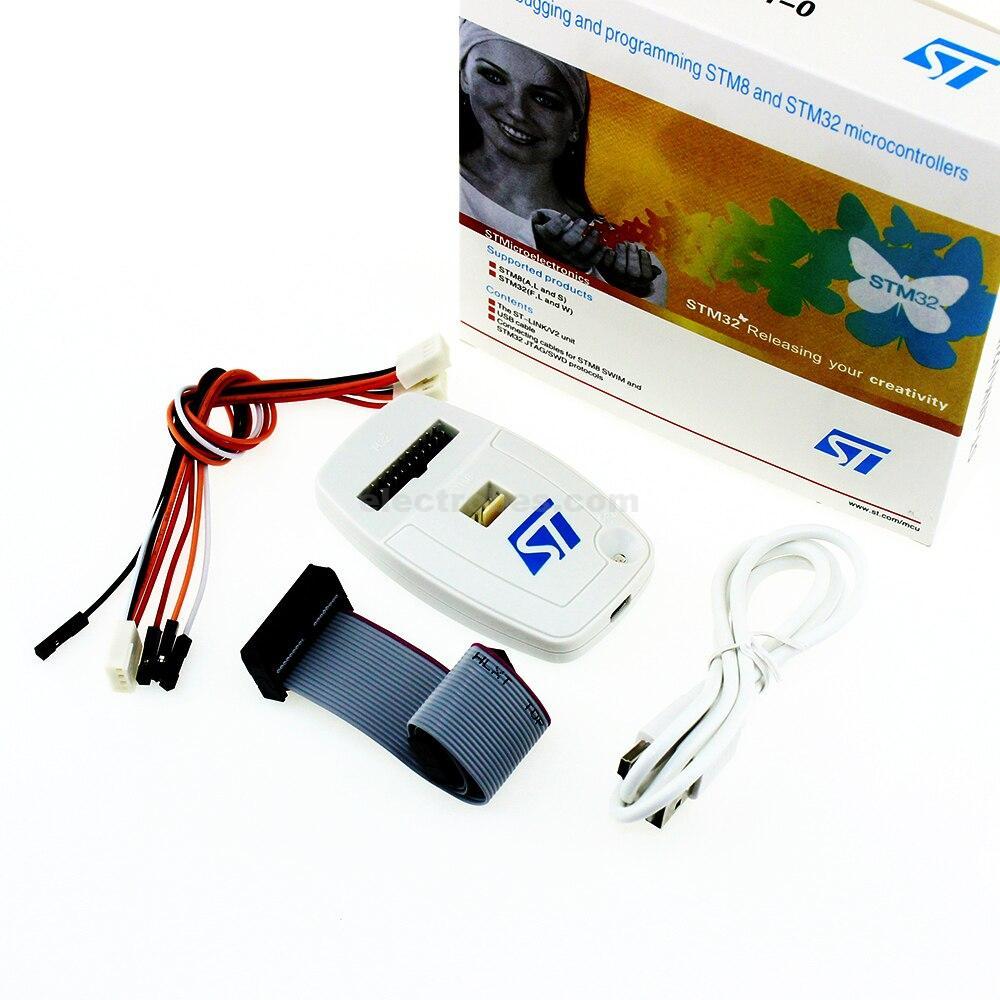

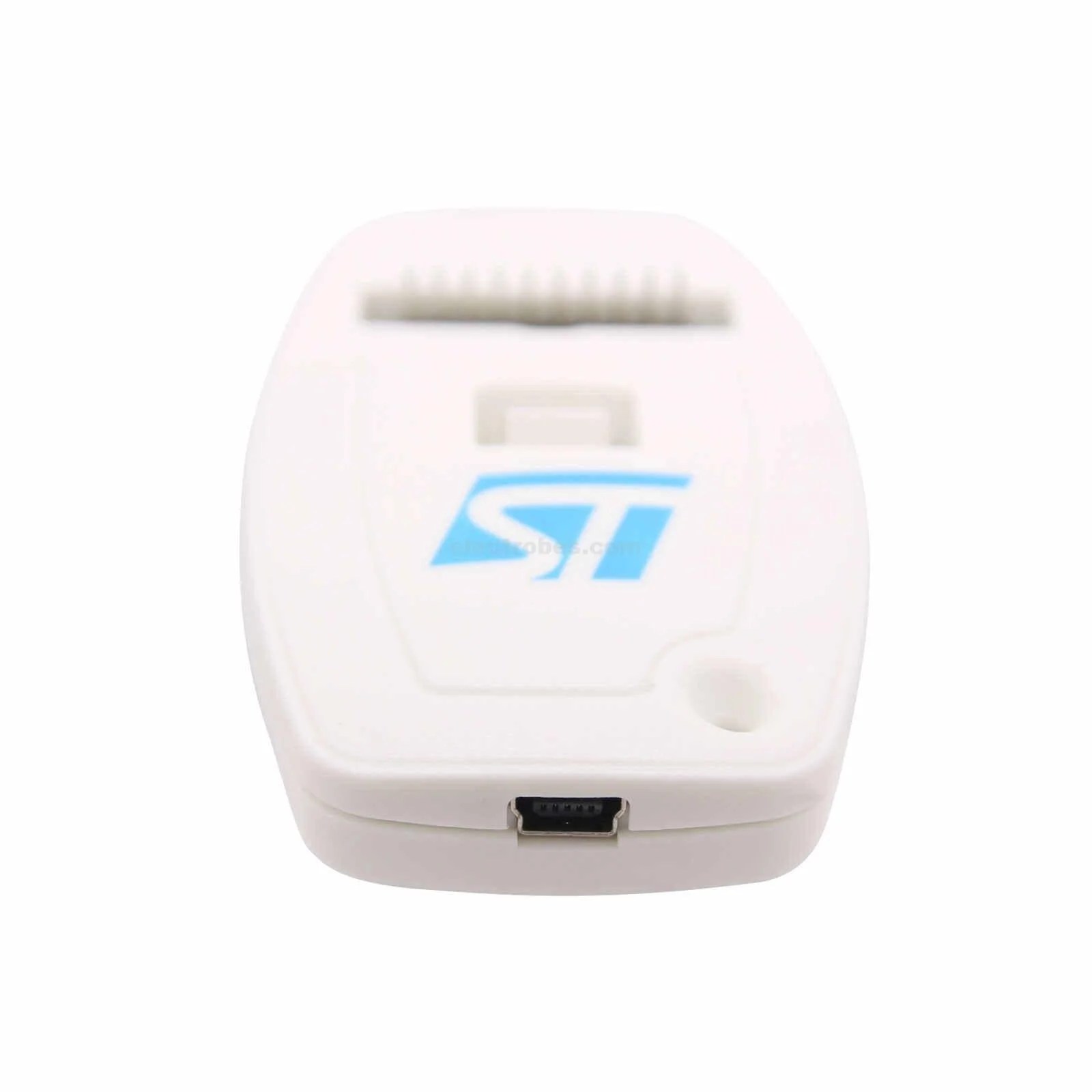

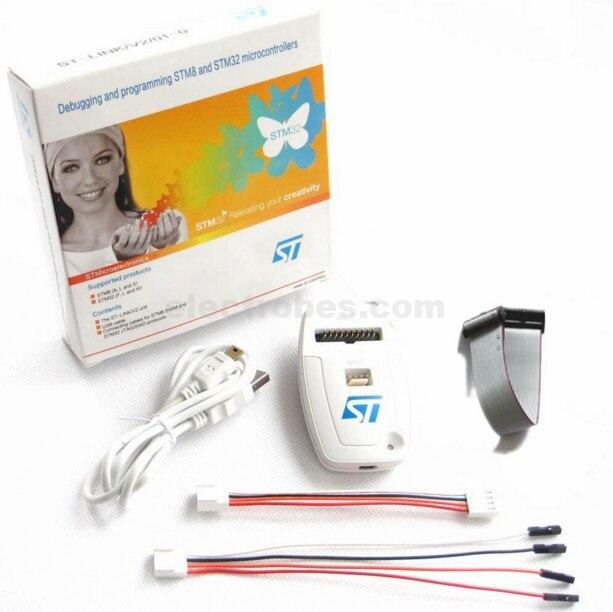

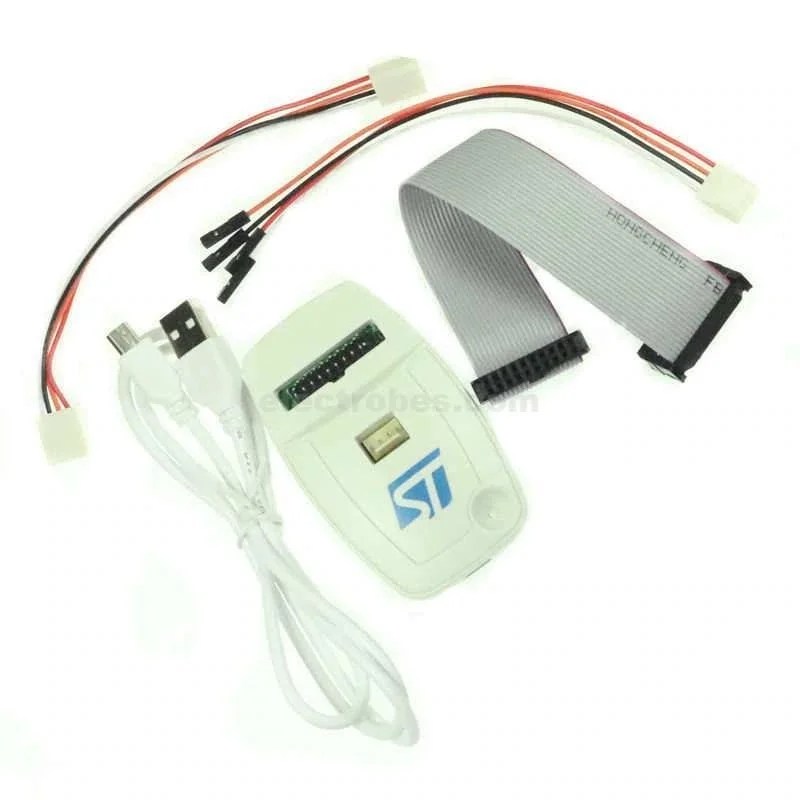

ST-LINK V2 (CN) – STM8 / STM32 Programmer & Debugging Emulator
The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.
STM8 applications use the USB full speed interface to communicate with STMicroelectronics’ ST Visual Develop (STVD) or ST Visual Program (STVP) software.
STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.
SW DRIVERS
While connecting the ST-LINK/V2 to the computer through USB interface, the USB driver is required and should be installed correctly first.
Click on the link below to download:
ST-LINK/V2 USB driver for Windows 7, Vista and XP
Downloads
Development resources: user manual, driver, software, etc.
Wiki: www.waveshare.com/wiki/ST-LINK/V2_(CN)
Supported Devices
Microcontrollers supported by STVP release 3.2.8:
PRODUCT LINE
MICROCONTROLLER
STM32
STM32F100xx, STM32F101xx, STM32F102xx, STM32F103xx, STM32F105xx, STM32F107xx, STM32F2xxx, STM32F4xxx,
STM32L15xx6, STM32L15xx8,STM32L15xxB, STM32L151xC, STM32L151xD, STM32L152xC, STM32L152xD, STM32L162xD,
STM32TS60,
STM32W108C8, STM32W108xB, STM32W108xC, STM32W108xZ
STM8
STM8AF51x, STM8AF52x, STM8AF61x, STM8AF62x,STM8AH51x, STM8AH61x,
STM8S003K3, STM8S003F3, STM8S005C6, STM8S005K6, STM8S007C8, STM8S103xx, STM8S105xx, STM8S207xx, STM8S208xx, STM8S903F3, STM8S903K3,
STM8L101xx, STM8L15x, STM8L16x,
STM8TL52x4,STM8TL53x4
