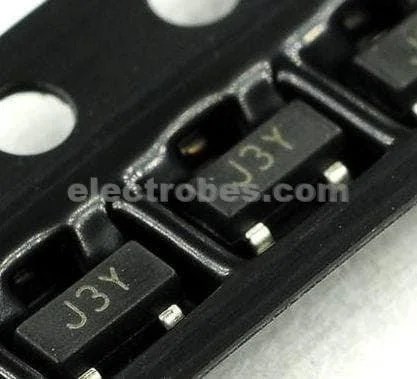

S8050 MMBT8050 J3Y NPN Silicon Transistor SMD SOT23 Triode

Type Designator: S8050  J3Y
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.3 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 25 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN: 120
Package: SOT23
