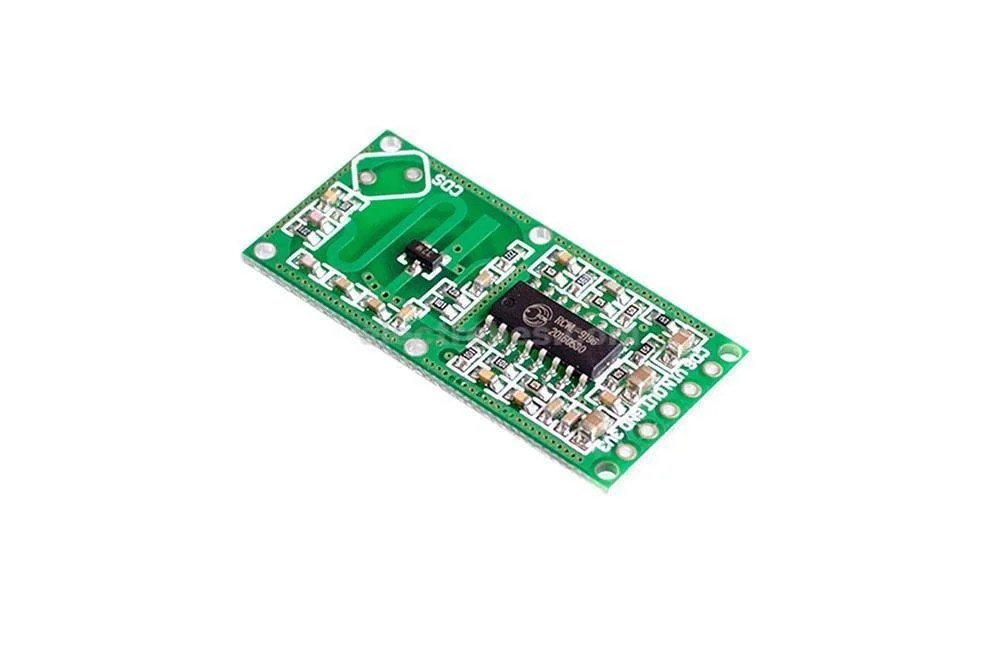

This mini doppler radar sensor module is equipped with supporting DC 4-28V wide voltage This is a mini radar motion sensor module is equipped with RCWL-9196 chip based on the doppler microwave induction technology. It will automatically continuously output the high level TTL signal when there is motion. 360 degree no blind angle detection and maximum 7m sensor distance with adjustable delay time and sensitivity. It is perfect for DIY microwave motion sensor light switch, human sensor toys, smart security devices, etc.
Notice:
1.The right ahead of induction side shouldn’t place any metal to block
2.The front/back side should reserve more than 1cm space
3.Module and installation carrier
Features
Equipped with RCWL-9196 chip supporting 4-28V wide voltage input, high level signal output when detecting the motion with active repeat trigger
360 degree no blind angle detection with 5-7m detecting distance, the detection not affected by the surroundings, better performance than the IR sensor
Support night detecting function turn on /off, adjustable repeat trigger time and detecting distance by add the SMD components to the corresponding pins
Working Voltage: DC 4-28V, Board Size: 35.9 X 17.3mm/1.41 X 0.68inch

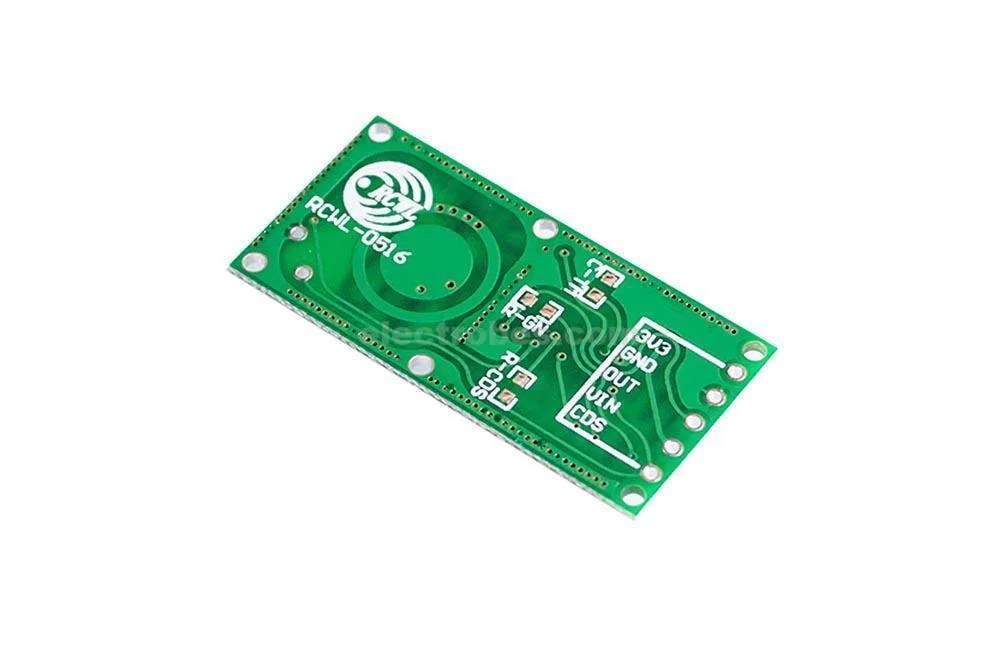

Pin Definition:
3V3:3V3 power output
GND: ground
OUT: control output; when detect moving objects, it will output high level
VIN: input voltage,4-28V
CDS: enable control chip, lower than 0.7V, OUT will output low level all the time
Package list
RCWL-0516 Microwave Radar Sensor Switch Module x1
