RC832 Receiver+TS832 Transmitter 32Ch 5.8G 600MW Wireless AV for FPV
Description:
FPV 5.8G 600mW A/V 32CH Transmitting/Receiving System TS832 + RC832 RP-SMA. THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM.
Features:Â Â Â Â
48 channels choice to get the best transmitting quality.
Compatible with A,B,E and F frequency bands
Smaller size with lighter weight.
48 CH compatible to all FPV 5.8g receivers.
5.8G 600mW 48 Channels AV wireless FPVÂ transmitter
Super small 200mA current for 600mW wireless transmitter power.
600mW transmitter power assure 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna.
Package Included:
1 x cable
1 x antenna Description:
FPV 5.8G 600mW A/V 32CH Transmitting/Receiving System TS832 + RC832 RP-SMA
THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM. Description:
FPV 5.8G 600mW A/V 32CH Transmitting/Receiving System TS832 + RC832 RP-SMA
THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM. Description:
FPV 5.8G 600mW A/V 32CH Transmitting/Receiving System TS832 + RC832 RP-SMA
THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM. Description:
FPV 5.8G 600mW A/V 32CH Transmitting/Receiving System TS832 + RC832 RP-SMA
THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM.

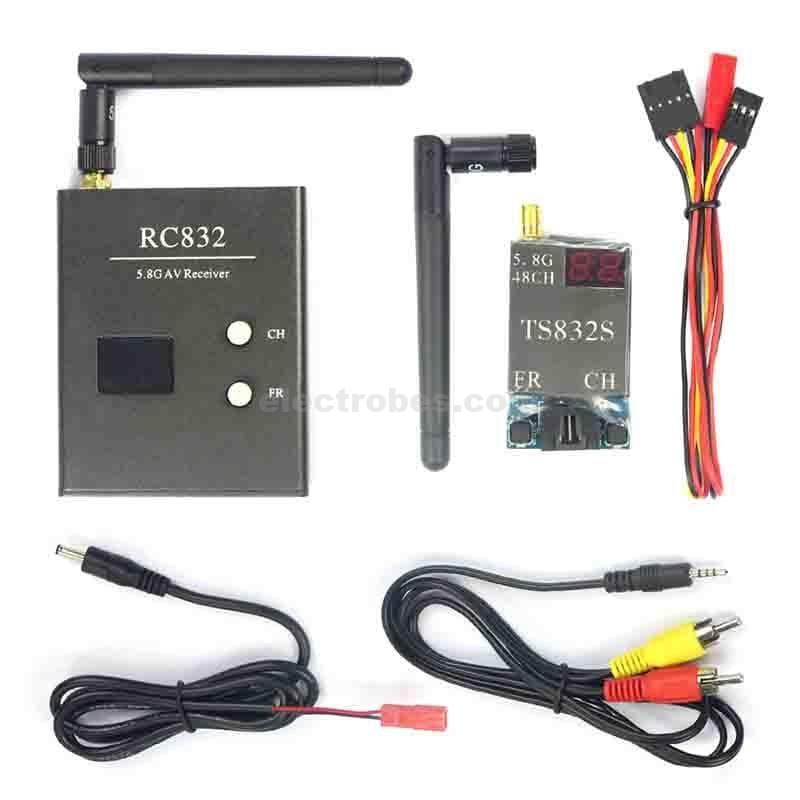

1 x Eachine TS832 transmitter + Receiver

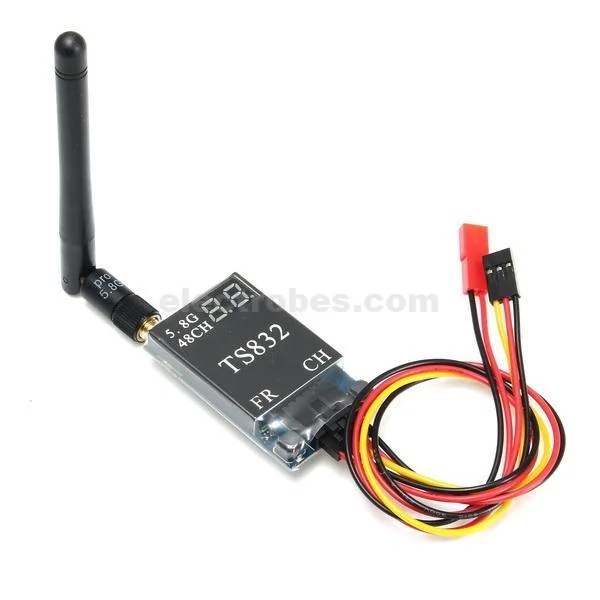

TS832 Specification:
Item Name: TS832 transmitter
Frequency: 5.8G
Power input: 7.4-16V (3S Lipo suggested)
Transmitting Power: 600mA
Antenna Gain: 2db
Working Current: 220mA at 12V
Video Format: NTSC / PAL Auto
Video Bandwidth: 8M
Audio Bandwidth : 6.5M
Weight: about 22g
Dimension: 54x 32x 10mm(excluding antenna)
Connector: transmitter module side RP-SMA jack, antenna RP-SMA plug

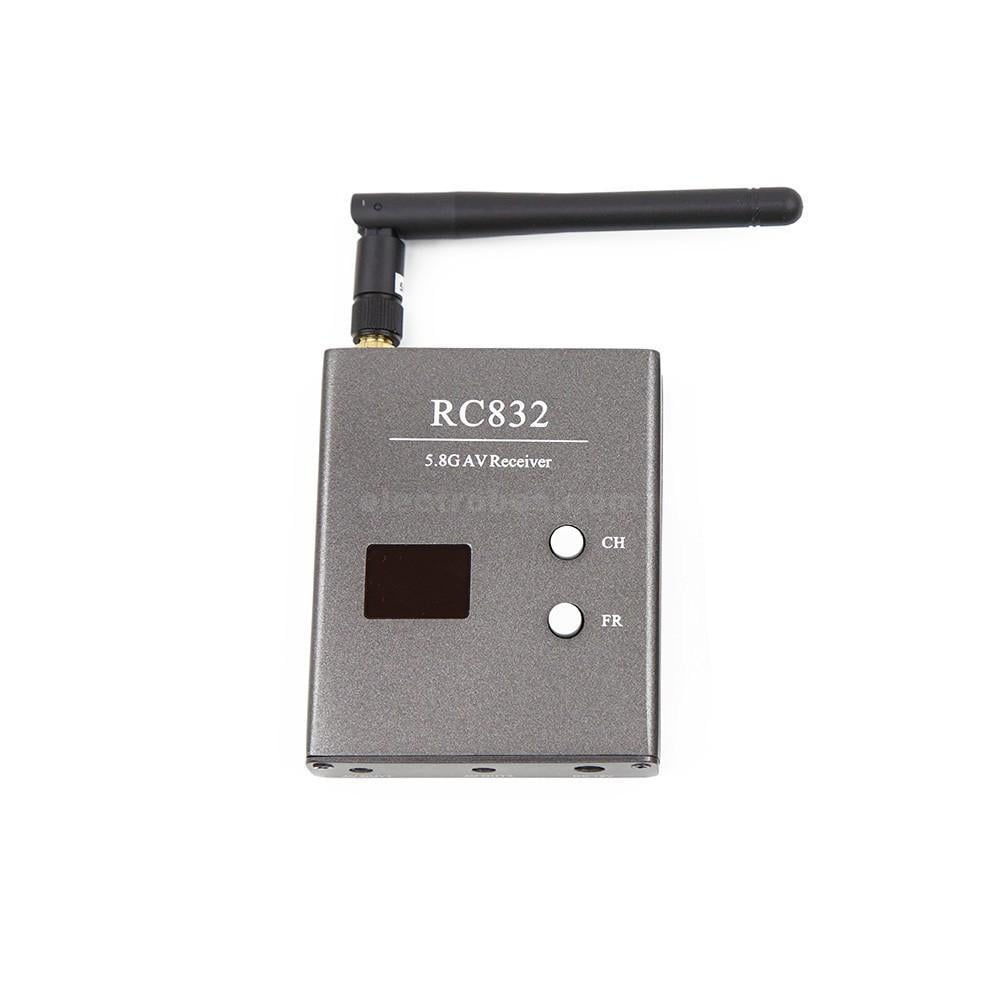

RC832 Specification:
Item Name: RC832 receiver
Power Input: 12V
Working Current: 200mA max
Antenna Impedance: 50O
Antenna Gain: 2db
Video Impedance: 75O
Video Format: NTSC/PAL auto
Dimension:Â 80x 65 x15mm
Weight: about 85g
Connector: receiver module side RP-SMA jack, antenna RP-SMA plug
