Features
320×240 hardware resolution

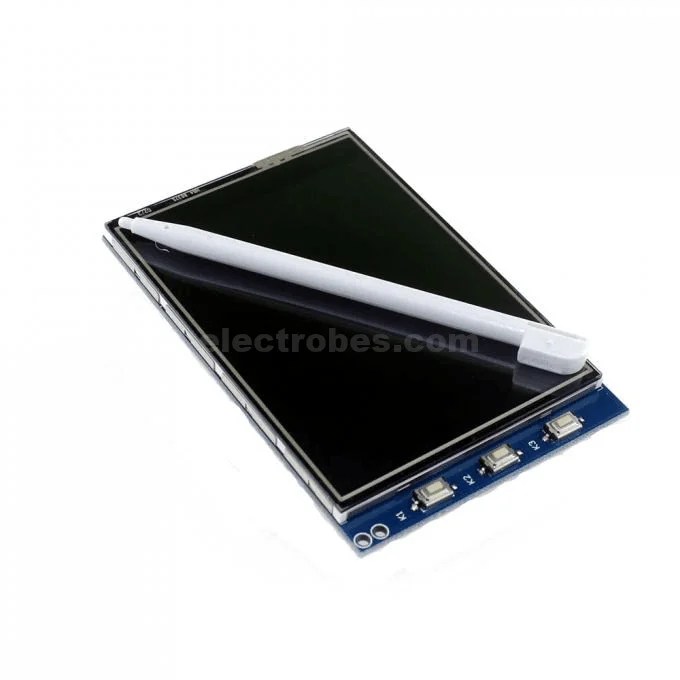

Resistive touch control
Supports any revision of Raspberry Pi (directly-pluggable)
125MHz High-Speed SPI signal transmission, clear & stable display effect
Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
Supports FBCP software driver as well, allows to config software resolution and set up dual-display

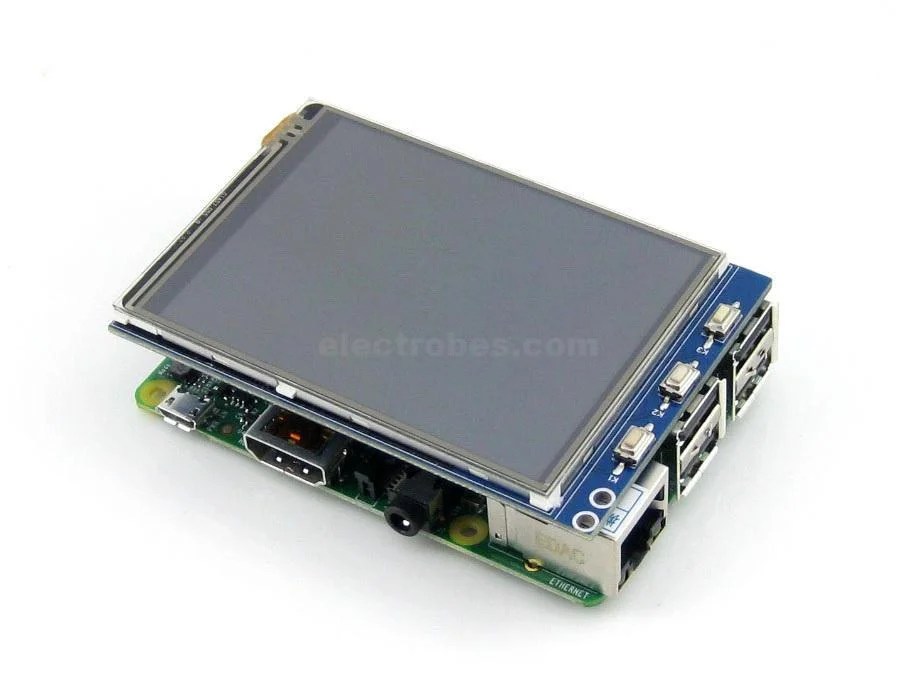

Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
High quality immersion gold surface plating

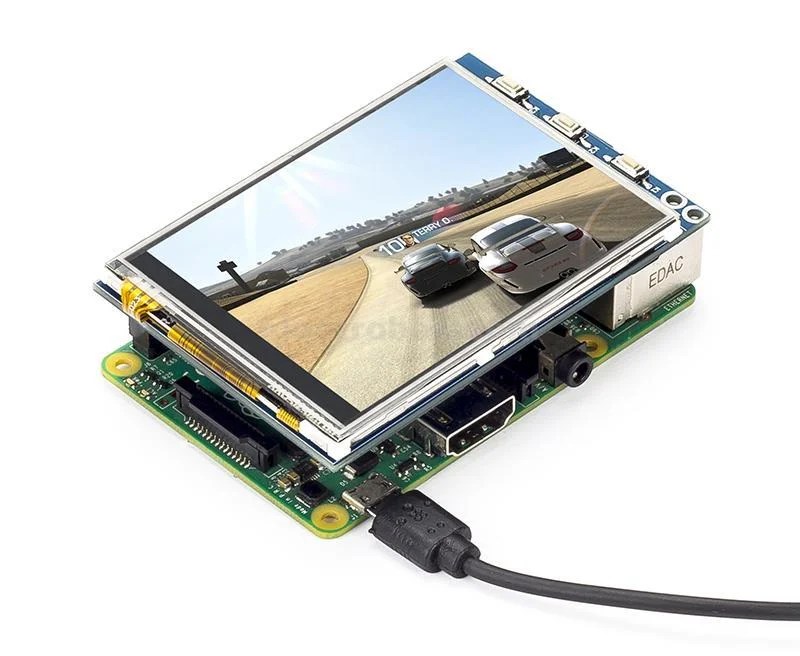

Combined with the Raspberry Pi (refresh rate up to 50Hz), allows you to:
Watch videos (multi formats like MP4)
Play video games (RetroPie, take a bite)
Take photos by touching (up to 17 camera modes)
Use software keyboard (system interaction without keyboard/mouse)
Interface
PIN NO.
SYMBOL
DESCRIPTION
1, 17
3.3V
Power positive (3.3V power input)
2, 4
5V
Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16
NC
NC
6, 9, 14, 20, 25
GND
Ground
11
TP_IRQ
Touch Panel interrupt, low level while the Touch Panel detects touching
18
LCD_RS
Instruction/Data Register selection
19
LCD_SI / TP_SI
SPI data input of LCD/Touch Panel
21
TP_SO
SPI data output of Touch Panel
22
RST
Reset
23
LCD_SCK / TP_SCK
SPI clock of LCD/Touch Panel
24
LCD_CS
LCD chip selection, low active
26
TP_CS
Touch Panel chip selection, low active
External Dimension
