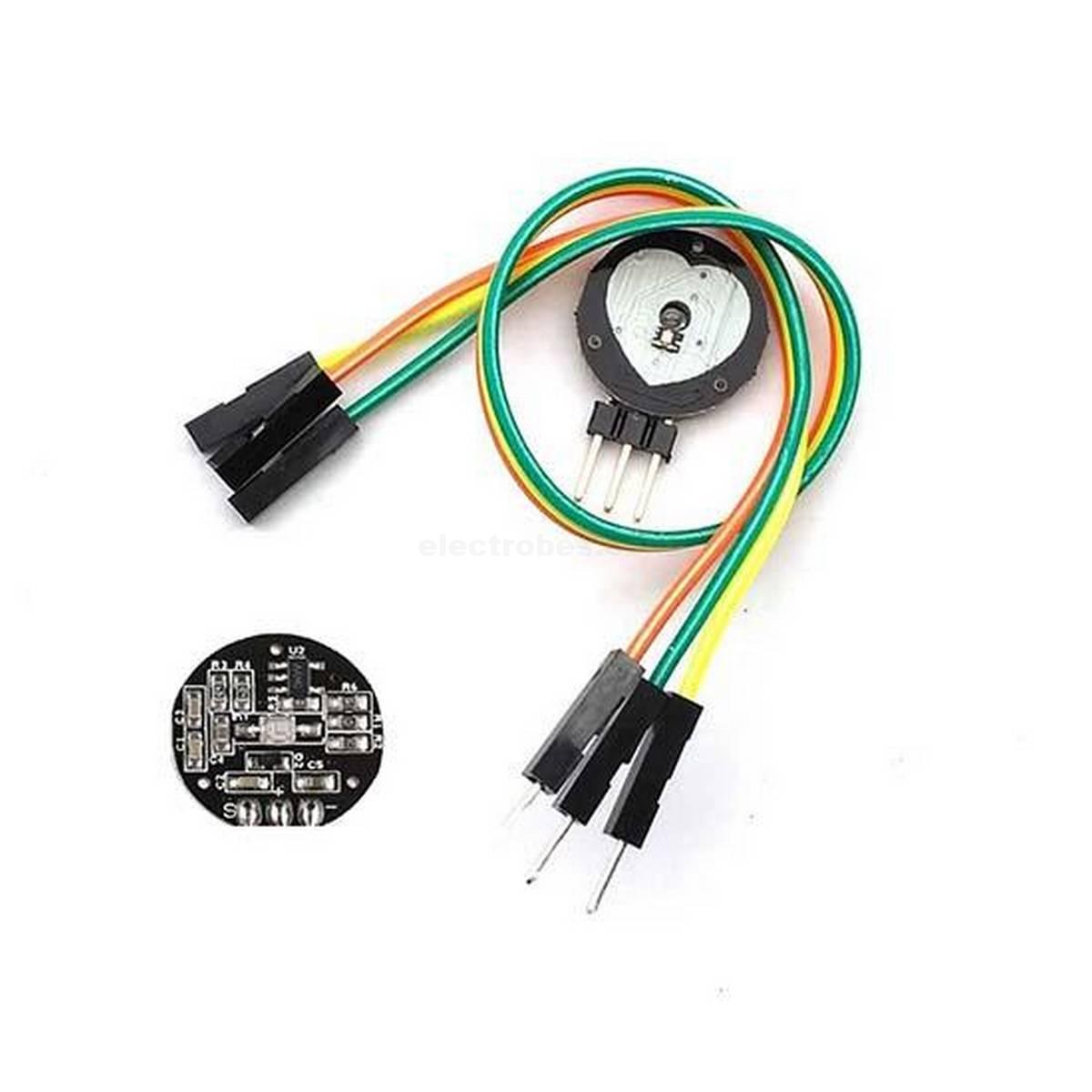

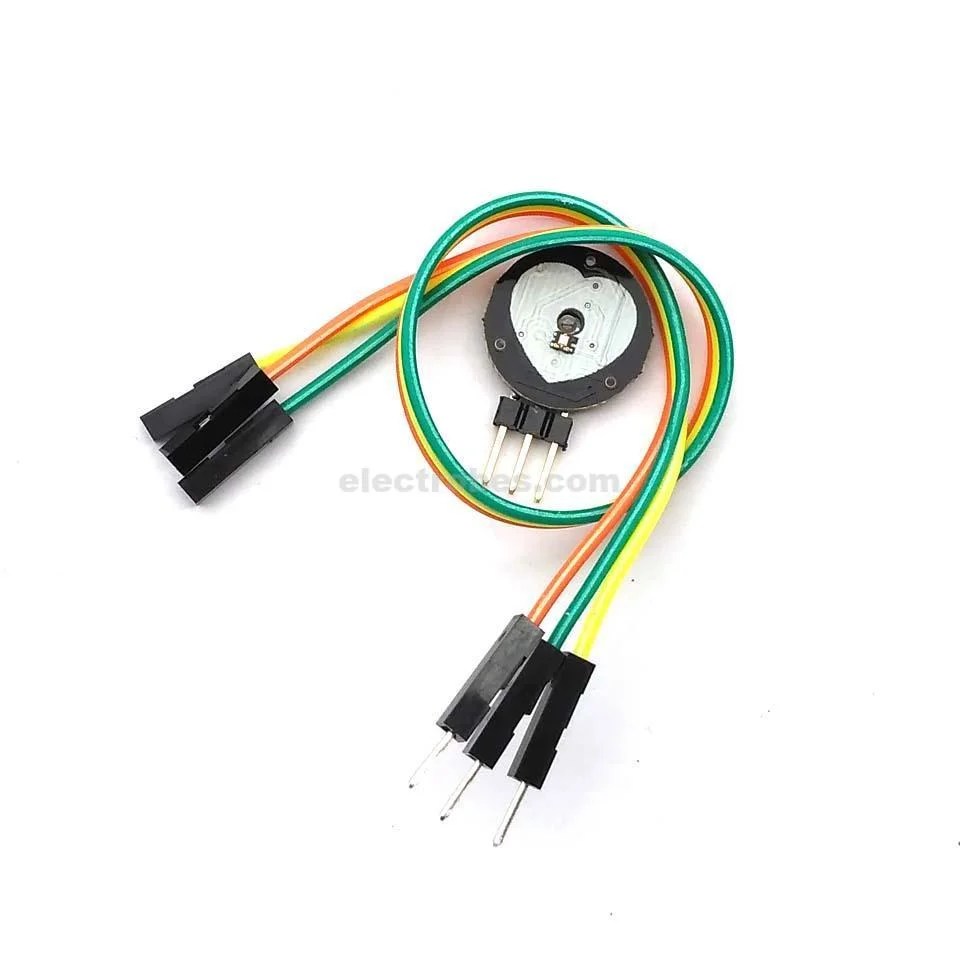

Pulse Sensor Heart Beats Rate Sensing Module
Description

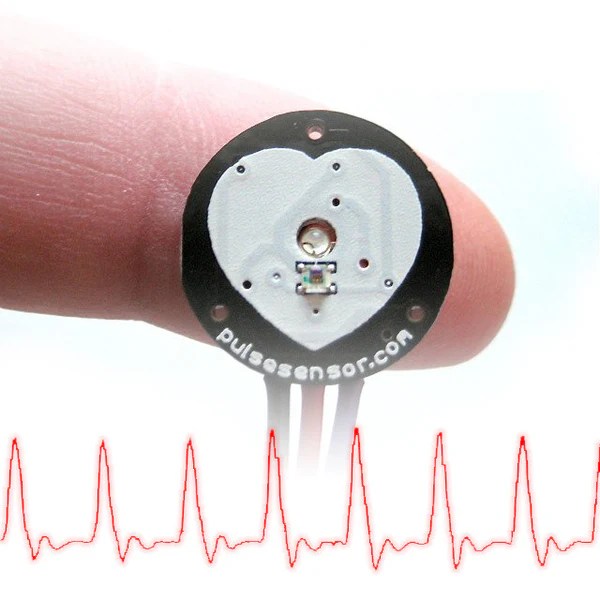

Heart Rate data can be used in many Electronic design and microcontroller projects. But the heart rate data is difficult to read, however, the Pulse Sensor Amped help us to read heart rate. The Heart Beat Pulse Sensor Amped is a plug-and-play heart-rate sensor for Arduino. It can be used by students, artists, athletes, makers, and game & mobile developers who want to easily incorporate live heart-rate data into their projects. It essentially combines a simple optical heart rate sensor with amplification and noise cancellation circuitry making it fast and easy to get reliable pulse readings.
Pulse Sensor Amped adds amplification and noise cancellation circuitry to the hardware. It’s noticeably faster and easier to get reliable pulse readings. Pulse Sensor Amped works with either a 3V or 5V Arduino.
Technical Details
Item Type: Sensor
Model Type: Heart Rate Sensor
PCB Diameter: 15mm
PCB Thickness: 1.5mm
Features
Color-Coded Cable with Male Header Connectors
No Soldering Required, Plug into Arduino/Breadboard
3 Holes for Easy Sewing into Projects
Visualization Software for Real-Time Output and Troubleshooting

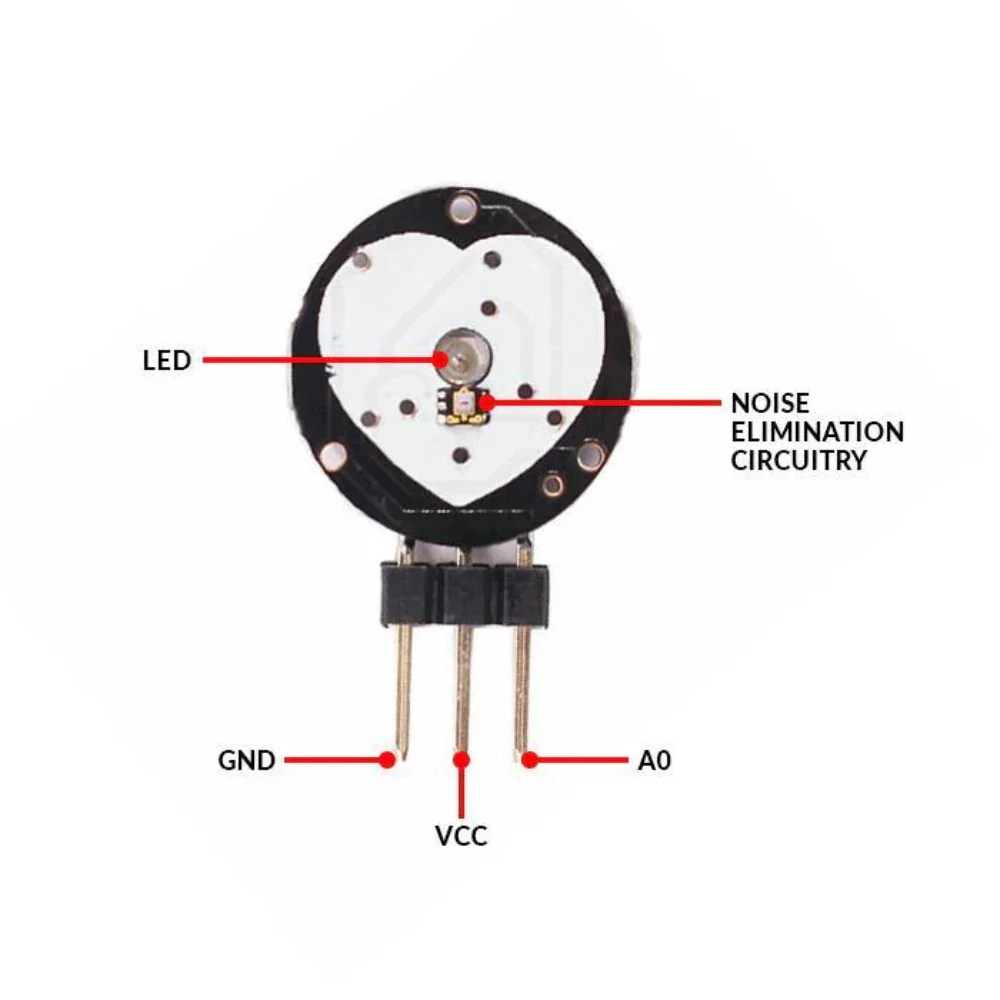

Pin Description:
AO: Analog Output Connector
VDC: Connect to 3.3V-5V
GND: Connect to Ground
Applications :
Fitness Tracking: Monitors heart rate during exercise or physical activities.
Health Monitoring: Tracks heart rate for individuals with medical conditions.
Wearable Devices: Integrated into smartwatches and fitness bands for continuous heart rate monitoring.
Medical Equipment: Used in pulse oximeters and ECG machines for patient monitoring.
Sports Science: Monitors athletes’ heart rate for performance analysis.
Sleep Monitoring: Tracks heart rate during sleep for health insights.
IoT Health Systems: Connects to health apps and platforms for remote monitoring.
Emergency Medical Devices: Alerts for abnormal heart rate in critical care situations.
Yoga and Meditation: Monitors heart rate during meditation to track relaxation levels.
Educational Projects: Used in DIY health-monitoring projects or student learning setups.
Home Automation: Door/window monitoring.
Gaming/VR: Joysticks, controllers.
Integration with Arduino
Pin Configuration:
Pin Number
Pin Name
Wire Colour
Description
1
Ground
Black
Connected to the ground of the system
2
Vcc
Red
Connect to +5V or +3.3V supply voltage
3
Signal
Purple
Pulsating output signal.
Warning: This sensor is not medical or FDA approved. It is purely intended for hobby projects/demos and should not be use for health critical applications.
