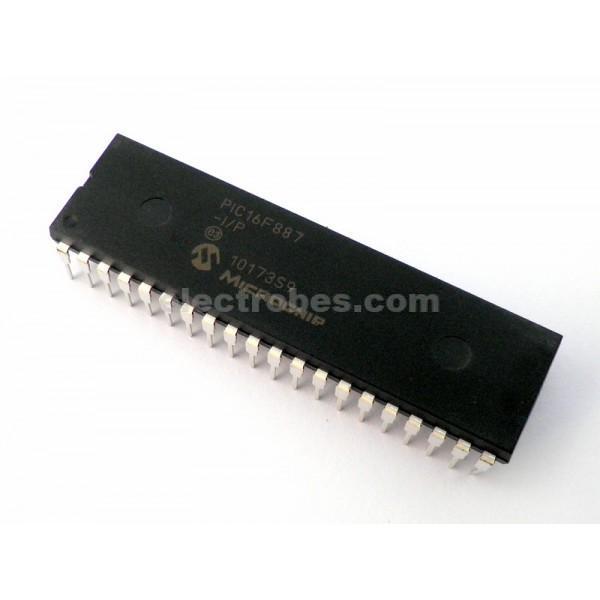

The PIC16F887 is an 8-bit microcontroller from Microchip. The 40-pin IC has 14 Channel 10-bit ADC making it suitable for applications which require more ADC inputs. The IC also has 2 Comparators, 2 Timers (8-bit and 16-bit) and supports SPI, I2C and UART communication protocols.
Features:
High-Performance RISC CPU
Only 35 single word instructions to learn
All instructions are single cycle (1µs) except for program branches
Operating speed: DC – 20MHz clock input
8 kBytes Flash Program Memory
368 Byte RAM Data Memory
256 Byte EEPROM Data Memory
In-circuit Serial Programming
 Interrupt Capability (up to 10 sources)
Two 8-bit timer/counter(TMR0, TMR2) with 8-bit programmable prescalar
One 16 bit timer/counter (TMR1)
High current source/sink for direct LED drive
Watchdog Timer (WDT) with Separate RC Oscillator
Two Capture, Compare, PWM Modules
Synchronous Serial Port with SPI and I²C
Fourteen Channel, 10-bit Analog to Digital Converter
Universal Synchronous Asynchronous Receiver Transmitter (USART)
35 I/O pins with individual direction control
40-pin DIP
