Input Forward Current: 50mA
Peak Forward Current: 1A
Pulse Width: <=100us
Duty Ratio: 0.001
Reverse Voltage: 6V
Power Dissipation: 70mW
Collector-Emitter Voltage: 35V
Emitter-Collector Voltage: 6V
Collector Current: 50mA
Collector Power Dissipation: 150mW
Total Power Dissipation: 200mW
Isolation Voltage: 5000Vrms
40-60% RH, AC for 1 min.
Operating Temperature: -30ËšC ~ 100ËšC
Storage Temperature: -55ËšC ~ 125ËšC

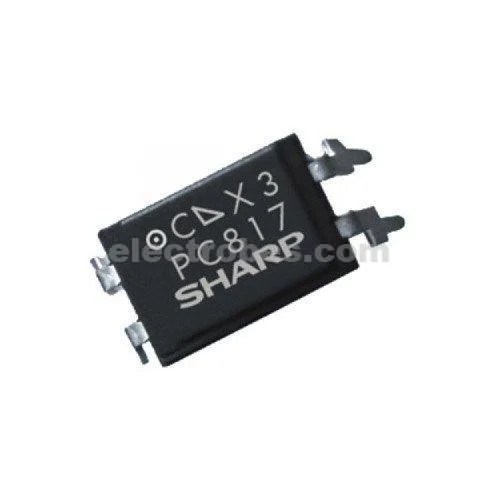

PC817 is your standard optocoupler. Use this IC to isolate two parts of a circuit. Isolation prevents ground loops and prevents transmission of unwanted noise. Input LED has a forward voltage of 1.2V and a forward current of 50mA. Please use a current limiting resistor as not to blow out the input LED. The frequency depends on the pull up resistor you use on the output transistor.
Pinout:
Internal Connection Diagram:
