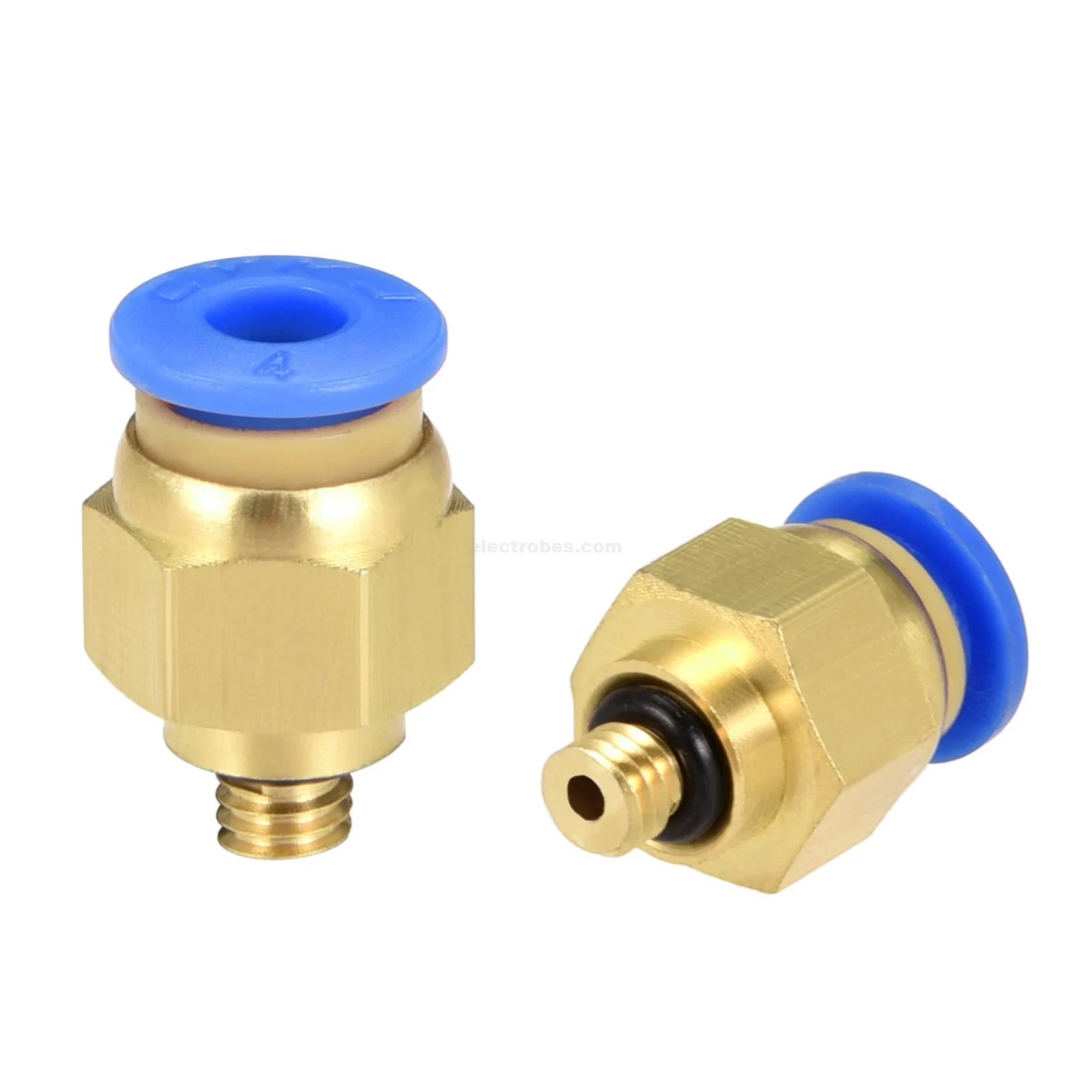

PC4-M5 Pneumatic Air Straight Quick Fitting Tube OD 5/32″ Thread M5 One Touch Hose Connector
Description:
1. The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.
2. Push-to-connect tube connection on one end and male G threads on the other end.
3. A good release cap can withstand greater and stronger pressure without tripping.
4. Have abrasion resistance, light weight, and resistance to crushing and cracking, Compressive and corrosion resistant, good sealing performance and long service life.
5. Elliptical release ring help to connect tube easily by manual, no special tools required.
Product Features:
Product Name: Quick Fittings
Model: PC4-M5
Net Weight: 40g
Color: Gold Tone, Blue
Material: Plastic, Brass
Thread Type: G Type
Thread Tube Size: M5
Inner Diameter(Blue End): 5/32″ = 4mm
Type: Male Straight Thread Connector
Operating Pressure: 0-9MPa
Guaranteed pressure resistance: 1.5MPa
Dimension: 19mm x 10mm / 0.75-inch x 0.39-inch (L x W )
Package Content:
1 pc x PC4-M5 Quick Coupler Fittings
Mounting:
1. Cut the pipe flat, no slope
2. When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.
3. After plugging in, try to pull the tube, if you can’t pull it out, it means it has been connected.
4. When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
