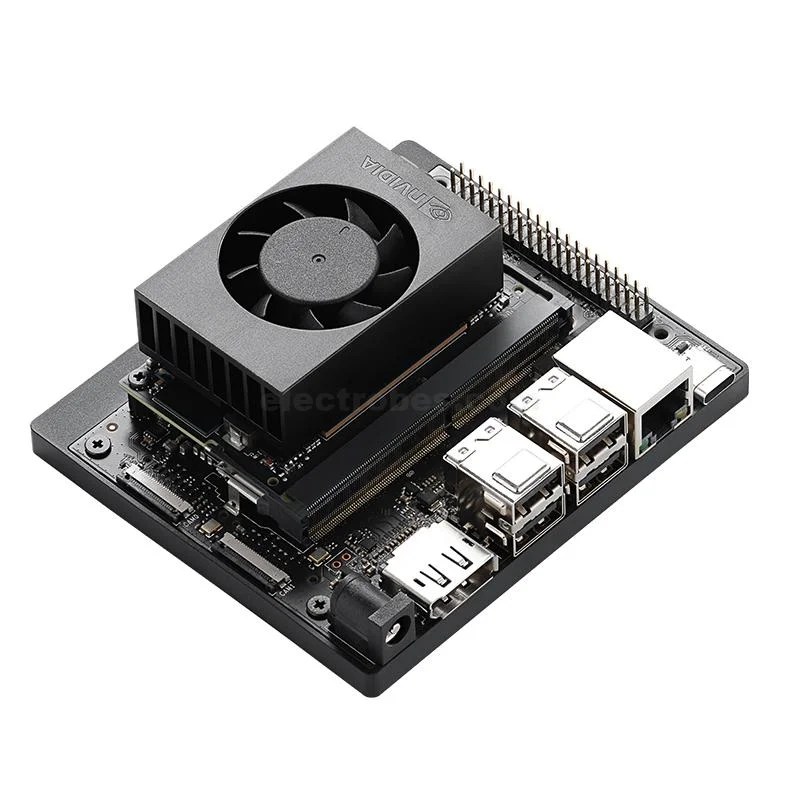

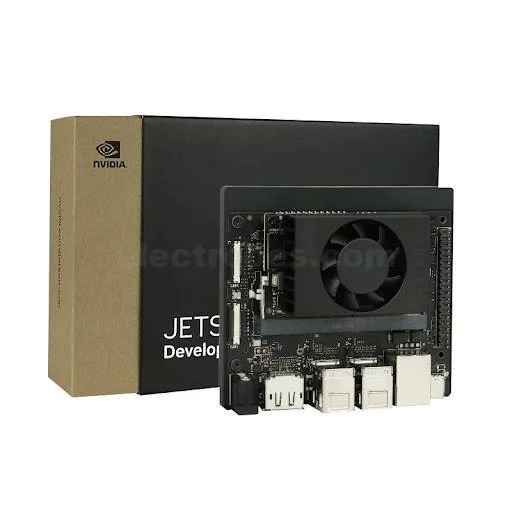

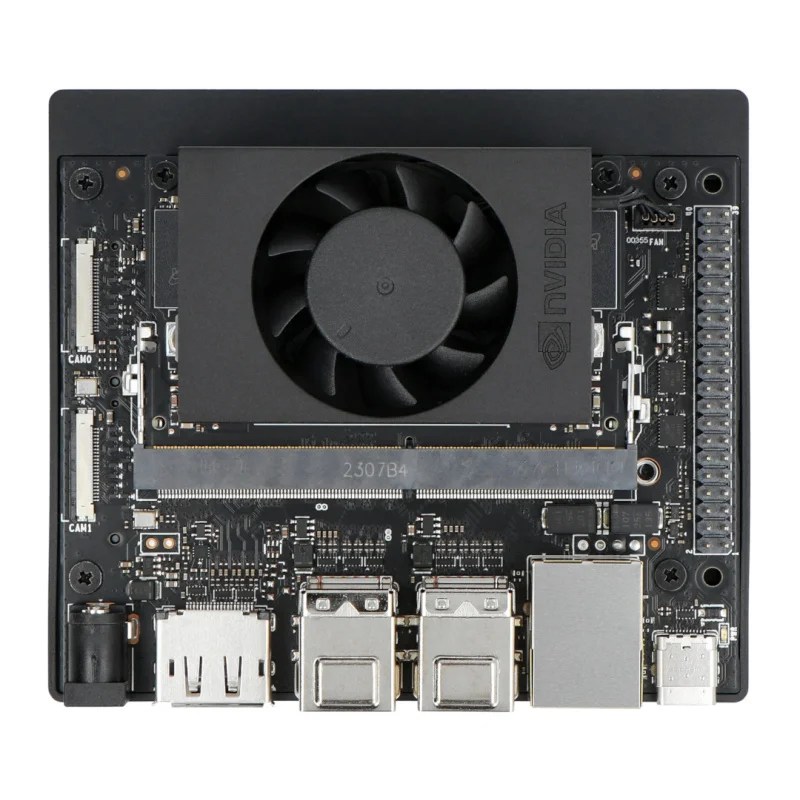

NVIDIA Jetson Orin Nano 8GB Super Developer Kit
The developer kit consists of a Jetson Orin Nano 8GB module mounted on a reference carrier board. It is specifically optimized for running modern Transformer-based models, including Large Language Models (LLMs), Vision Transformers, and Vision-Language Models (VLMs) directly at the edge.
Key Features
Performance Boost: Delivers a 1.7X improvement in AI performance compared to the original 15W configuration.
Software-Driven Upgrade: Existing owners of the standard Orin Nano 8GB Developer Kit can unlock these “Super” specs simply by updating to the latest JetPack SDK.
Rich Connectivity:
Video: 1x DisplayPort 1.2 (+MST) and support for 1x 4K60 (H.265) video decode.
Camera: 2x MIPI CSI-2 22-pin connectors.
USB: 4x USB 3.2 Gen 2 Type-A ports and 1x USB Type-C for UFP.
Expansion: 40-pin GPIO header (Raspberry Pi compatible layout), M.2 Key E (pre-installed Wi-Fi/BT), and 2x M.2 Key M slots for SSDs.
Comprehensive Software Stack: Fully supports the NVIDIA AI software stack, including CUDA, TensorRT, and specific frameworks like NVIDIA Isaac for robotics and NVIDIA Metropolis for vision AI.
Specifications
GPU: 128-core Maxwell
CPU:Quad-core ARM A57 @ 1.43 GHz
Memory: 8 GB 64-bit LPDDR4 25.6 GB/s
Storage: microSD (not included)
Video Encoder: 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
Video Decoder: 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30|(H.264/H.265)
Camera: 2x MIPI CSI-2 DPHY lanes
Connectivity: Gigabit Ethernet, M.2 Key E
Display: HDMI 2.0 and eDP 1.4
USB: 4x USB 3.0, USB 2.0 Micro-B
Others: GPIO, I2C, I2S, SPI, UART
Mechanical: 100 mm x 80 mm x 29 mm
Package Include:
Type B (US, JP) Power Cable
Type I (CN) Power Cable
Quick Start and Support Guide
