Ideal for compact PC cases (HTPC, ITX, Small Form Factor) and other chassis (intake & exhaust), replacement fan for NAS and 3d printers, etc.
Description:

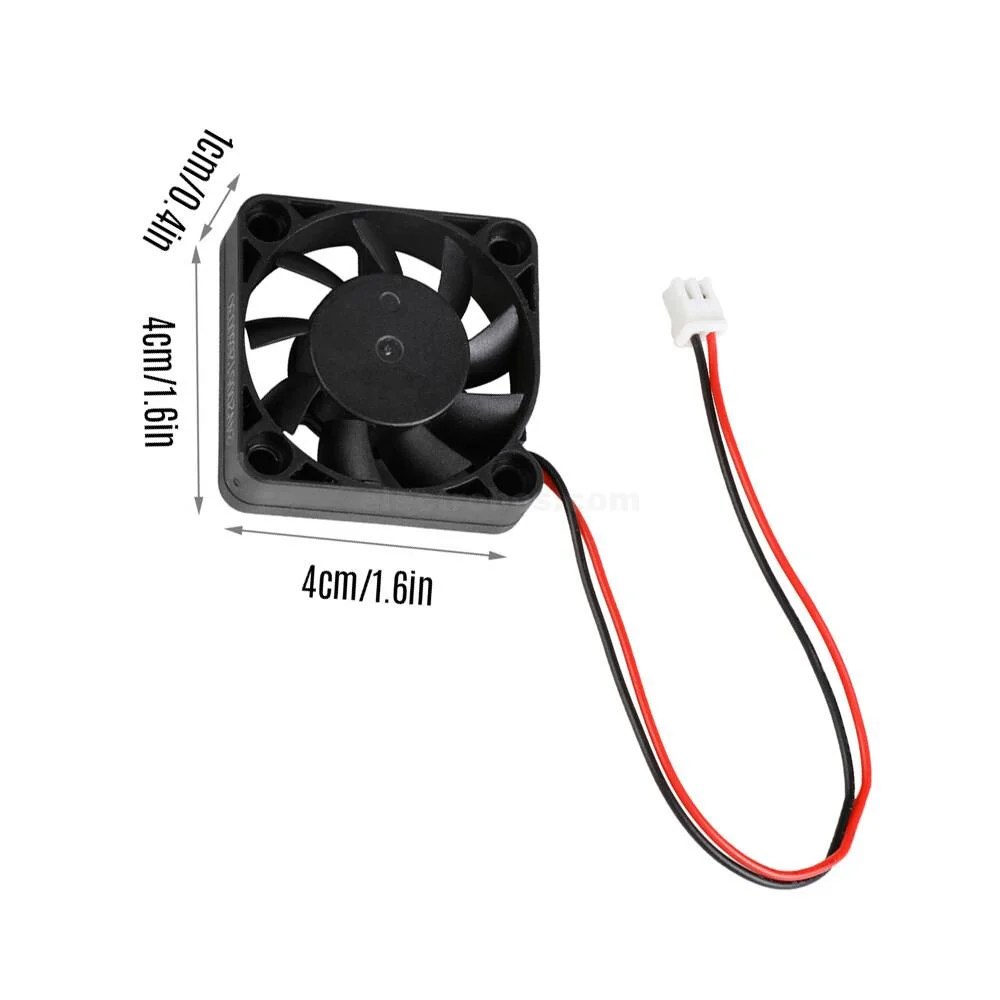

Dimensions: 40mm(L) x 40mm(W) x 10mm(H)
Rated Voltage: DC 24V;
Rated Current: 0.8Amp ±10% ;
Rated Speed: 2400 RPM;
Air flow: 76.2CFM ±10%;
Noise: 32dBA ±10%
Connector: XH2.54-2Pin;
Lead wire: UL Type
(+): Red wire ;
(-): Black wire.
This is a two wire cooling fan;
Bearing Type: Dual Ball Bearings ;
Life: working up to 50000h at 25 degrees.
Notes:
Check the voltage whether fit your need. power the fan with corresponding voltage.
Make sure the “+” (RED wire) and “－”(Black wire) are connected to power correctly.
