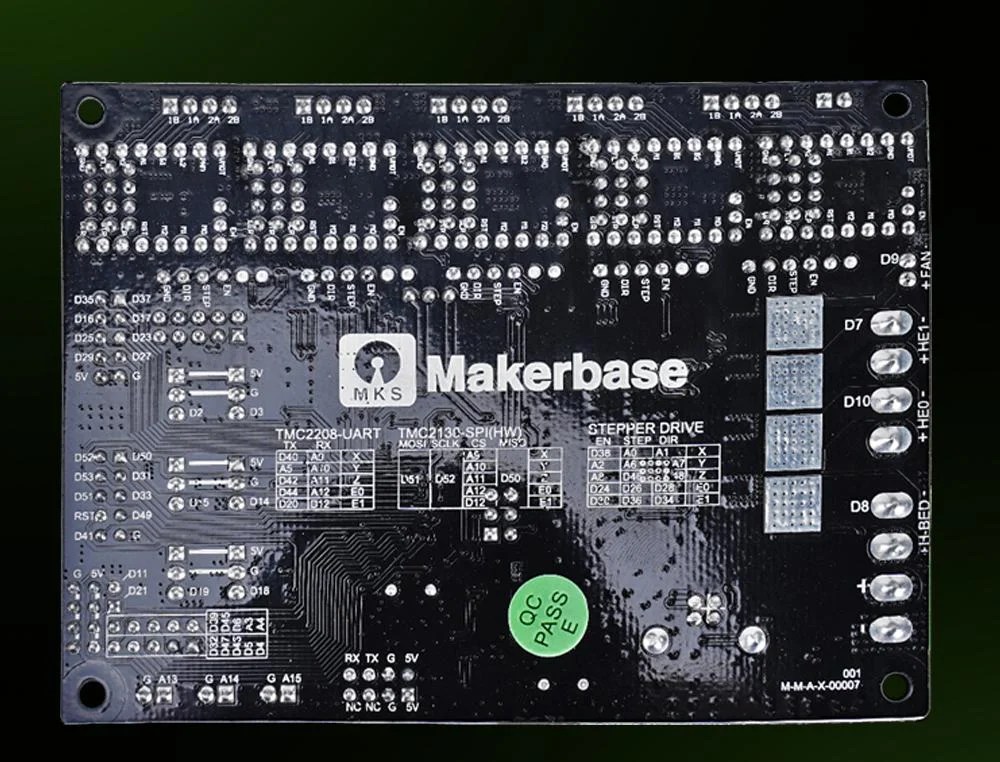

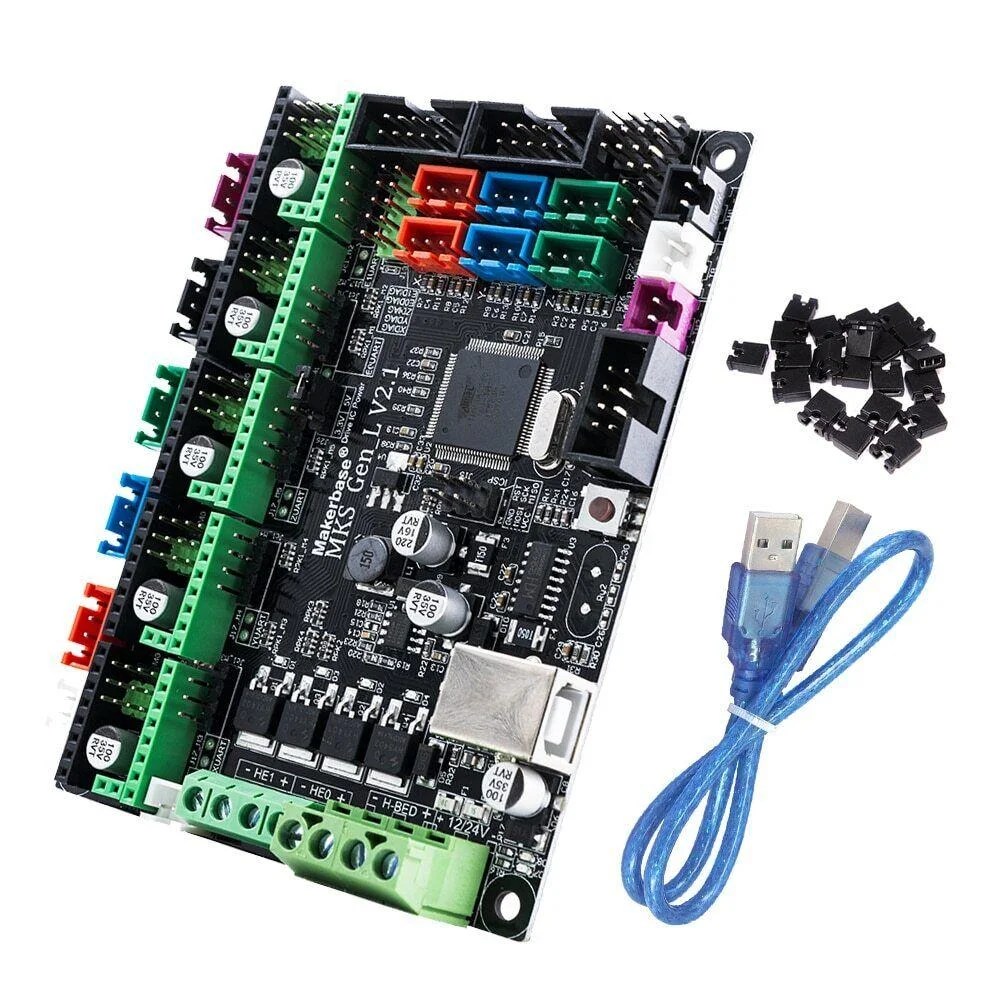

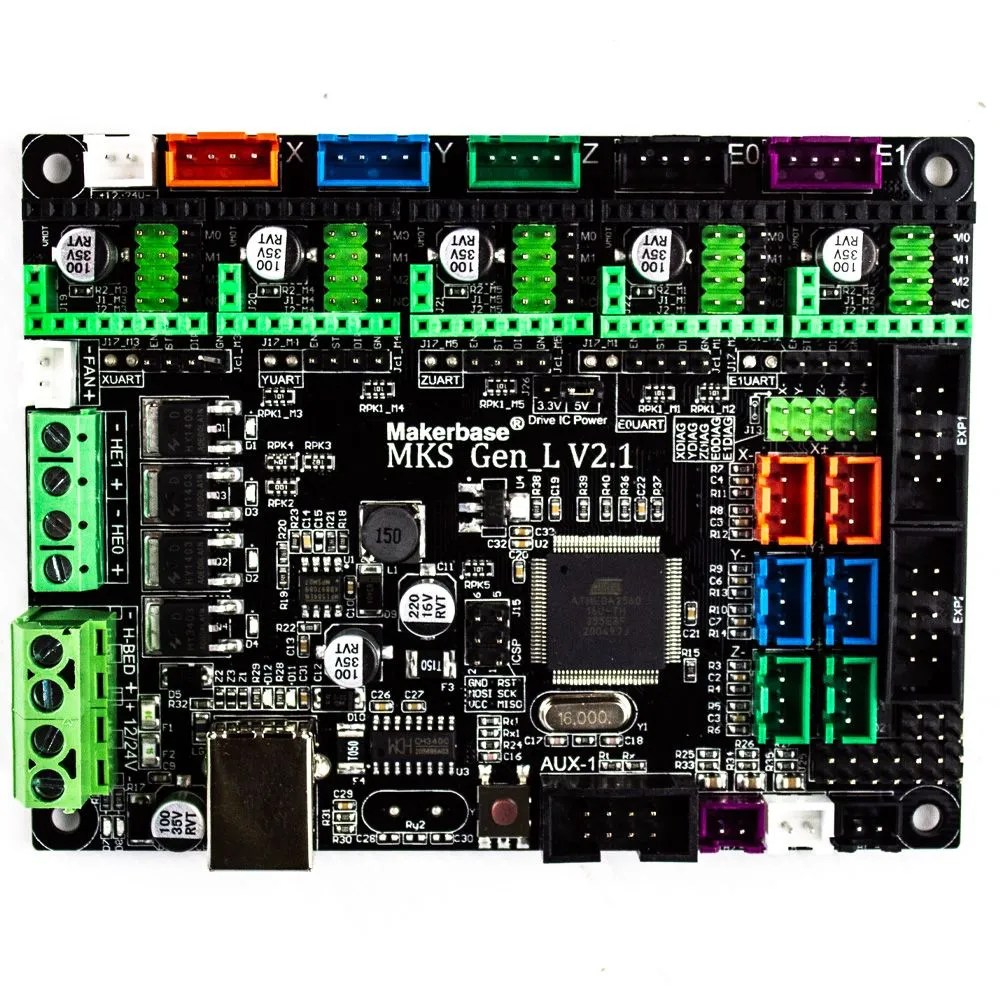

MKS Gen L V2.1 3D printer control board Mega 2560 R3 motherboard RepRap Ramps1.4 compatible
MKS Gen is an all-in-one electronics solution for 3d printers and other CNC devices. The MKS Gen was designed by maker base as a radical upgrade to RAMPS board. It features an onboard ATmega2560. Its five motor outputs are powered by A4988, DRV8825 or TMC2208 stepper drivers. The board features a developer friendly expansion port supporting giving access the same as Ramps1.4. MKS Gen is designed to be flexible in the user’s power source availability, allowing any power supply from 12V-24V.
Features:
Mega 2560 and ramps1.4 set on a board, to solve complicated Ramps 1.4 combination of interfaces, the problem of failure prone.
Replace the motor drive, drive and support 4988 8825 drive.
The circuit board with high-quality 4-layer, heat and made a special optimization; ramps are 2 shelves.
Using high-quality MOSFET, and better heat dissipation.
Using a dedicated power chip, support 12V-24V power input, the voltage converter chip to solve the heat problem Ramps.
MEGA2560 and RAMPS 1.4 set on a board, to solve complicated RAMPS1.4 combination of interfaces, the problem of failure prone.
Support up to 5 motor driver (A4988 or DRV8825).
The circuit board with high-quality 4-layer, heat and made a special optimization; ramps are 2 shelves.
Using a dedicated power chip, support 12V-24V power input, the voltage converter chip to solve the heat problem Ramps.
Can accept 24V input power under the same system can be hot-bed current is reduced to 1/4, an effective solution to the hot bed MOS pipe heat problems.
The firmware can use open source firmware Marlin, ramps1.4 identical configuration and can directly replace Ramps1.4.

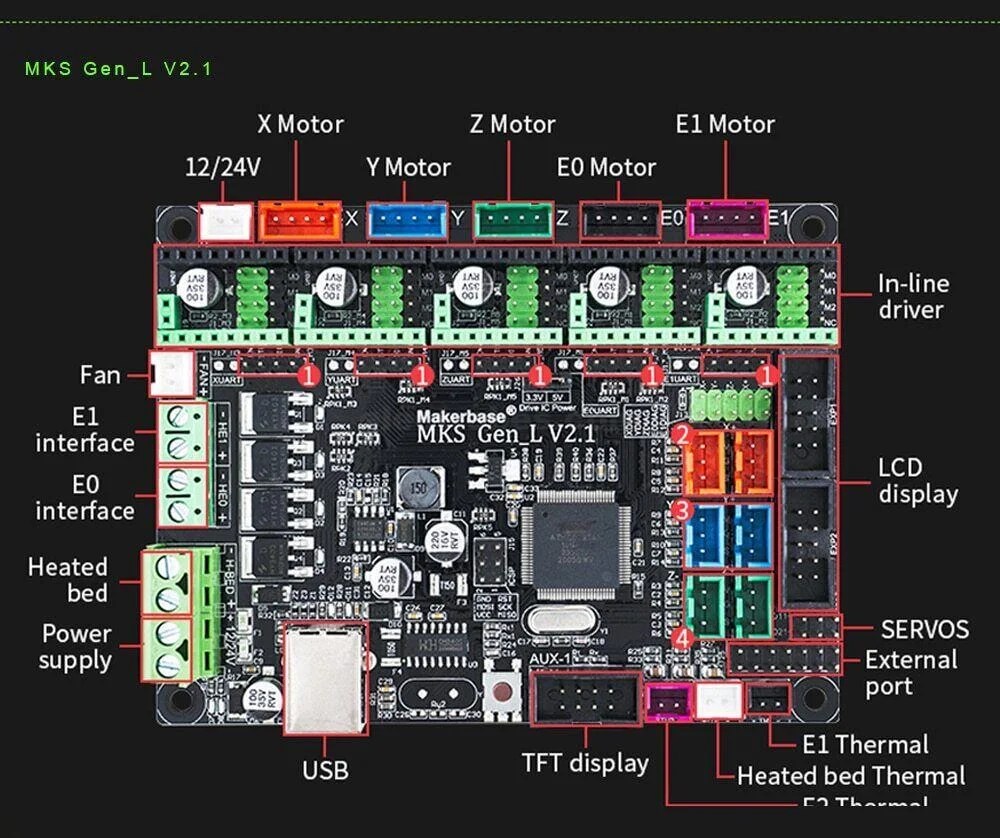

Can be directly connected to the control panel and 12864LCD Ramps1.4, 2004 LCD control panel.
Reserved for motor pulse and direction output ports for easy plug-in high-current To add a large current (eg 2A, 5A) motor drive circuit.
Reserved Ramps1.4 on Servos, AUX-1, AUX-2 interface that provides three 5V output, three 12V outputs.
