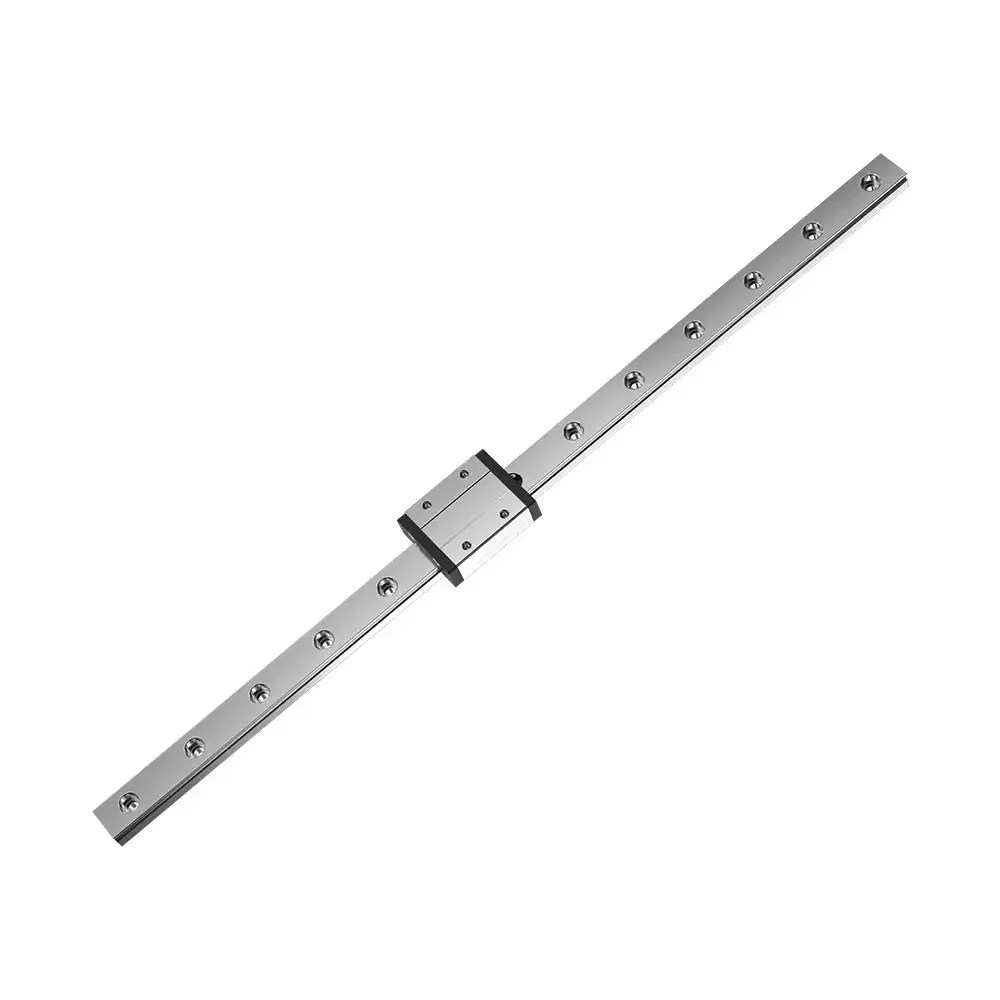

MGN9C 9mm linear rail guide for CNC machines and 3D Printer in different lengths with Guide Rail Sliding Block
Features:
High quality materials: Professional and technical steel rails and blocks for low-friction bearings, long-lasting and long-lasting.
Block: MGN9C ball bearing carriage. Block material: Stainless Steel. Blocks are pre-loaded.
Surface technology: Oxidation prevention by electroplating (chromium plating), High module accuracy, Low noise, Stronger wear resistance.
Multi-using: Made of Bearing Steel with low friction coefficients Used in devices for the manufacture of semiconductors, printed circuit boards, IC packages, medical devices, robot arms, precision encoders and other small linear motion devices.
Easy to disassemble and install: Hold the roller up during the disassembly process to prevent the ball from accidentally falling.
Material: Alloy Steel
Type: slide rail Slide rail: linear guide rail
Specifications
Rail Width: 9 mm
Rail Height: 6.5 mm
Sliding Block Dimensions: ~30 mm (Length) x 20 mm (Width) x 8 mm (Height)
Combined Height (Rail + Block): 10 mm
Mounting Hole Size: M3 screws
Load Capacity: Up to approximately 15 kg per rail system
Material: Corrosion-resistant, passivated bearing steel or stainless steel.
Overall Dimensions: 300, 350, 400, 500, 1000mm length (choose)
Best Practices for Installation & Maintenance
De-grease and Relubricate: Budget rails often arrive packed in viscous anti-rust shipping oil. For buttery-smooth motion, soak the block in isopropyl alcohol, let it dry, and apply a high-quality lithium grease or synthetic linear rail oil.
Avoid Ball Loss: The block utilizes an internal wire retainer to keep the steel balls captive. Avoid sliding the block completely off the rail unless it is onto an installation plastic guide wire.
Flat Mounting Surfaces: Ensure that the aluminum extrusions or plate surfaces you secure the rail to are perfectly flat to prevent binding or friction spikes
Package Includes:
1 x MR9 Linear guide rail
1 x MGN9C Sliding block
