Brief Description

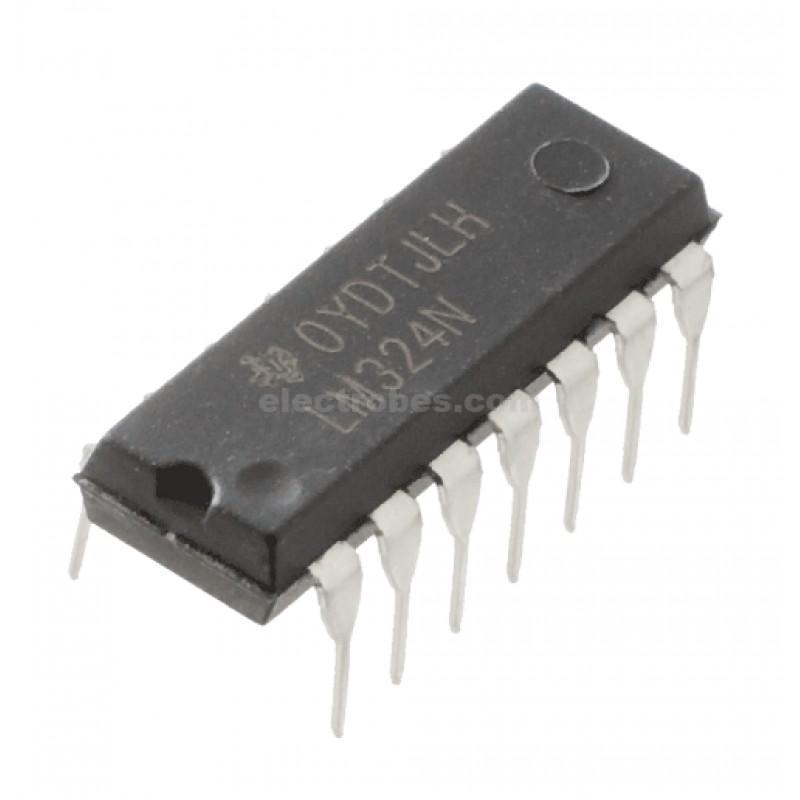

LM324 is a Quad op-amp IC integrated with four op-amps powered by a common power supply. The differential input voltage range can be equal to that of power supply voltage. The default input offset voltage is very low which is of magnitude 2mV. The operating temperature ranges from 0˚C to 70˚C at ambient whereas the maximum junction temperature can be upto 150˚C. Generally, op-amps can perform mathematical operations.

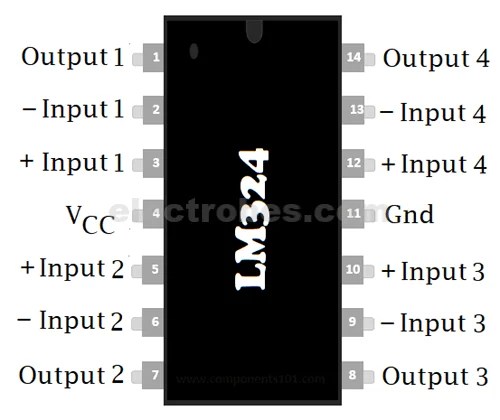

Pin Configuration
Pin Number
Pin Name
Description
1
OUTPUT1
Output of Op-Amp 1
2
INPUT1-
Inverting Input of Op-Amp 1
3
INPUT1+
Non-Inverting Input of Op-Amp 1
4
VCC
Positive Supply Voltage
5
INPUT2+
Non-Inverting Input of Op-Amp 2
6
INPUT2-
Inverting Input of Op-Amp 2
7
OUTPUT2
Output of Op-Amp 2
8
OUTPUT3
Output of Op-Amp 3
9
INPUT3-
Inverting Input of Op-Amp 3
10
INPUT3+
Non-Inverting Input of Op-Amp 3
11
VEE,GND
Ground or Negative Supply Voltage
12
INPUT4+
Non-Inverting Input of Op-Amp 4
13
INPUT4-
Inverting Input of Op-Amp 4
14
OUTPUT4
Output of Op-Amp 4
LM324 Quad Op-Amp IC features and specifications
Integrated with four Op-Amps in a single package
Wide power supply Range
Singe supply – 3V to 32V
Dual supply – ±1.5V to ±16V
Low Supply current – 700uA
Single supply for four op-amp operation enables reliable operation
Operating ambient temperature – 0˚C to 70˚C
Soldering pin temperature – 260 ˚C (for 10 seconds – prescribed)
Applications:
Transducer Amplifiers
Filter circuits, Voltage followers
Integrator, Differentiator, Summer, adder, Voltage follower, etc.,
DC gain blocks
Comparators (Loop control & regulation)
