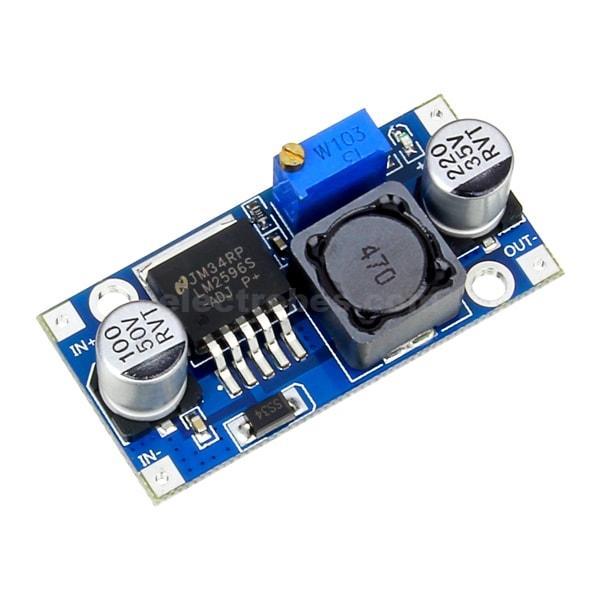

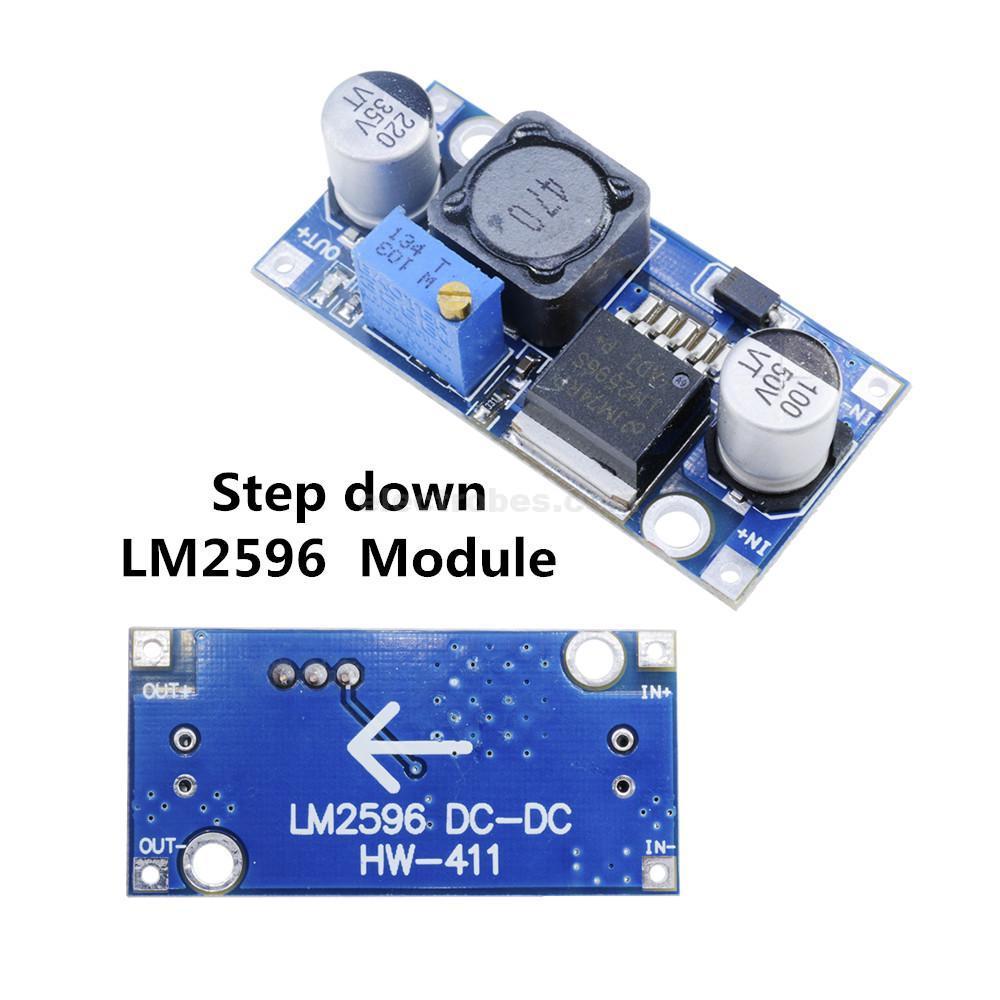

LM2596 Buck Adjustable Step Down Power Supply Module DC-DC Converter

LM2596 Buck Adjustable Step Down Power Supply Module DC-DC Converter
LM2596 DC-DC Buck Converter Step Down Module Power Supply is a step-down(buck) switching regulator. LM2596 Buck is capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.
The LM2596 Stepdown module is operating at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators.
Features of LM2596 DC-DC Buck Converter Module:

Output ripple: 30mA maximum
Load Regulation: ± 0.5%
Voltage Regulation: ± 0.5%
Dynamic Response speed: 5% 200uS
Input voltage:4.75-35V
Output voltage:1.25-26V(Adjustable)
Output current: Rated current is 2A, maximum 3A(Additional heat sink is required)
Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short Circuit Protection: Current limiting, since the recovery
Operating Temperature: Industrial grade (-40 to +85 ) (output power 10W or less)

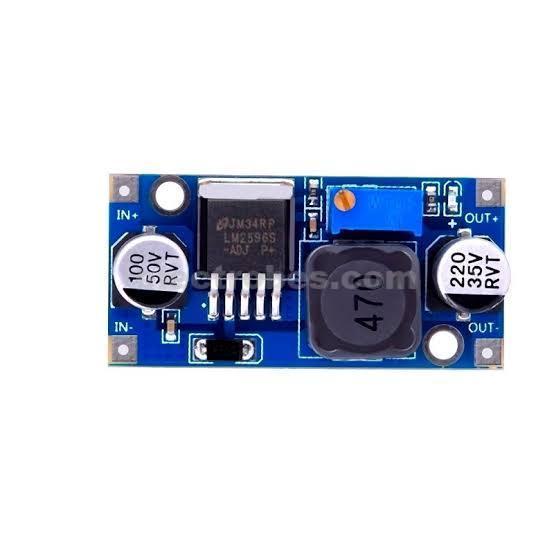

Pinouts of LM2596 step-down power supply module:

Package Includes:
1 x LM2596 DC-DC Buck Converter Power Supply
