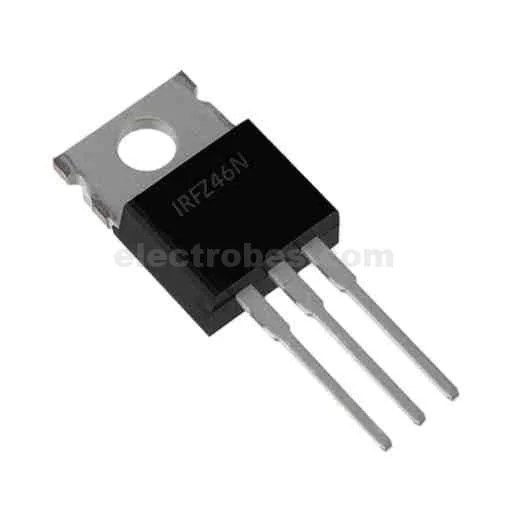

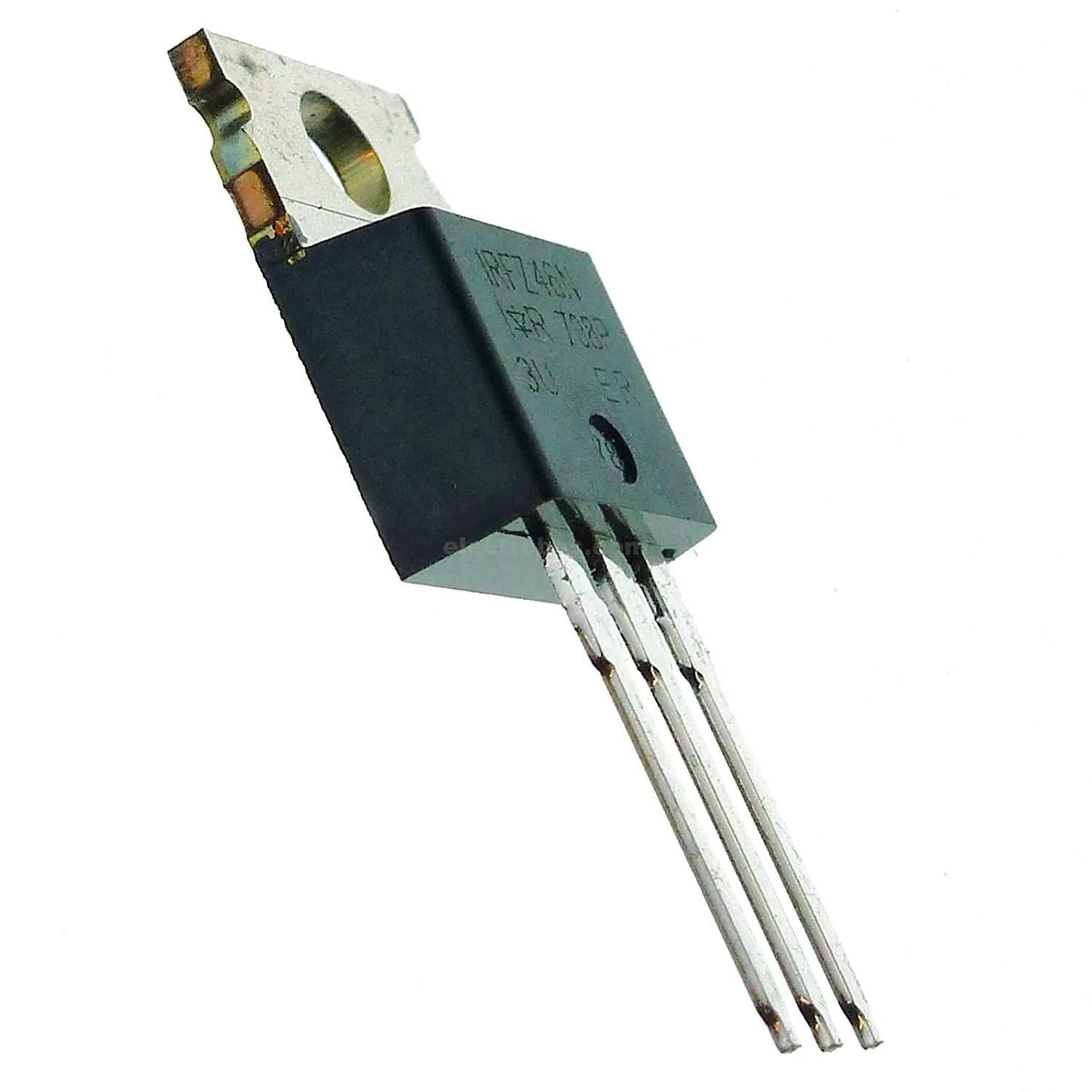

IRFZ46 50A 50V N-Channel Power MOSFET is Specifically designed for Automotive applications, this stripe planar design of HEXFET Power MOSFETs utilizes the latest processing techniques to achieve low on-resistance per silicon area. This benefit combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in Automotive and a wide variety of other applications.
IRFZ46 Pin Configuration
Pin No
Pin Name
1
Gate
2
Drain
3
Source
IRFZ46 Key Features
Dynamic dv/dt Rating
1750C Operating Temperature
Fast Switching
Ease Of Paralleling
Simple Drive Requirements
Type Designator: IRFZ46
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
IRFZ46 Specification:
Id (A)
Pd (W)
Vds (max)
Rds (on)
Vgs (max)
50
150
50
0.024
20
IRFZ46 Equivalent /Alternative:
IRF044, IRF044SMD, IRF054, IRF054SMD, IRF100B201
Application:
Reliable Device For Use In a Wide Variety Of Applications
You can download this datasheet for IRFZ46 50A 50V N-Channel Power MOSFET from the link given below:
Download Datasheet
