GY-291 ADXL345 3-Axis Digital Accelerometer Module

GY-291 ADXL345 3-Axis Digital Accelerometer Module for Arduino
The ADXL345 is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4mg/LSB) enables resolution of inclination changes of as little as 0.25°.
Features of GY-291 ADXL345:

GY-291 ADXL345 is a Small, Thin, Ultra-Low Power 3-Axis Accelerometer with High Resolution (13 bits) and Measurement Range of ± 16g
GY-291 Sensor Digital Output Data is in 16-bit 2 Complement Format and is Accessible via SPI (3-wire or 4-wire) or I2C Digital Interface
High Resolution: GY-291 ADXL345 Sensor Come with High Resolution (3.9 mg / LSB) Enables Measurement of tilt angle changes of less than 1.0 °
Low-Power Mode: ADXL345 Sensor Supports Motion-Based Intelligent Power Management for Threshold Sensing and Motion Acceleration Measurement with Low Power Consumption
Application: ADXL345 is Perfect for Mobile Device Applications, which can Measures Static Gravitational Acceleration in Tilt Detection Applications as well as Dynamic Acceleration Due to Motion or Impact

Specifications:

Main Chip: ADXL345
Model: GY-291
Power Supply: 3-5V
Means of Communication: IIC / SPI Communication Protocol
Measuring Range: ±2g /±16g
Digital-Output Triple-Axis Accelerometer with a Programmable Full Scale Range of ±2g, ±4g, ±8g and ±16g and Integrated 16-bit ADCs
Accelerometer Normal Operating Current: 450µA
Ultralow Power: as low as 23 μA in Measurement Mode and 0.1 μA in Standby Mode at VS = 2.5 V (typical)
Sleep Mode Current: 8µA
Communication: SPI (3- and 4-wire) and I2C Digital Interfaces
User-Programmable Interrupts
Wake-On-Motion Interrupt for Low Power Operation of Applications Processor

Package Contents:

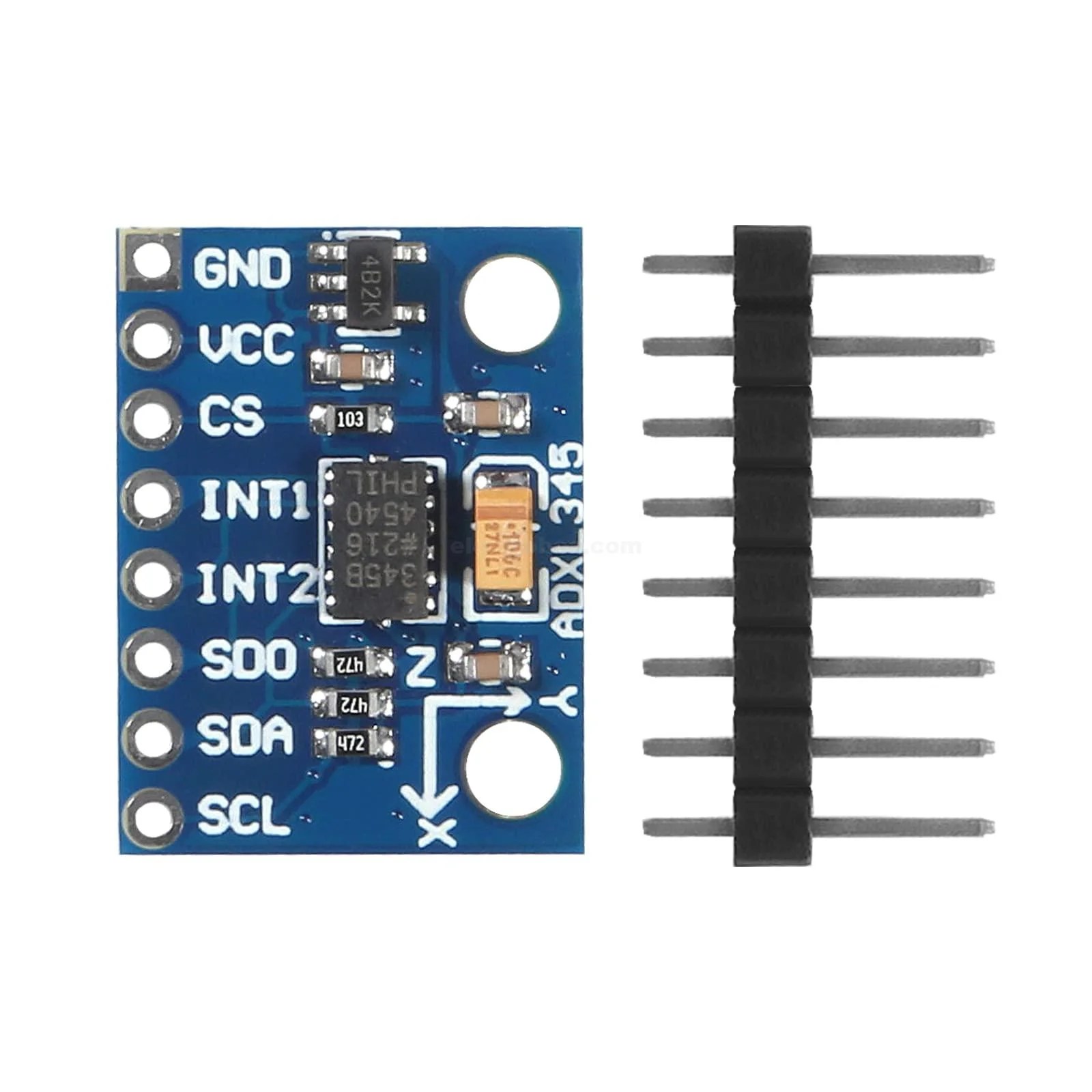

1x GY-291 ADXL345 3-Axis Digital Acceleration of Gravity Tilt Module
4x Pin Header

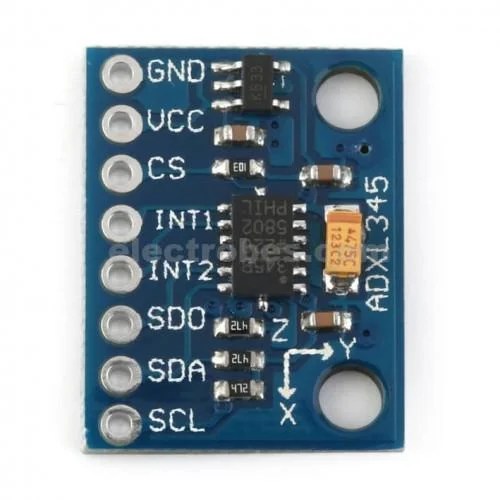

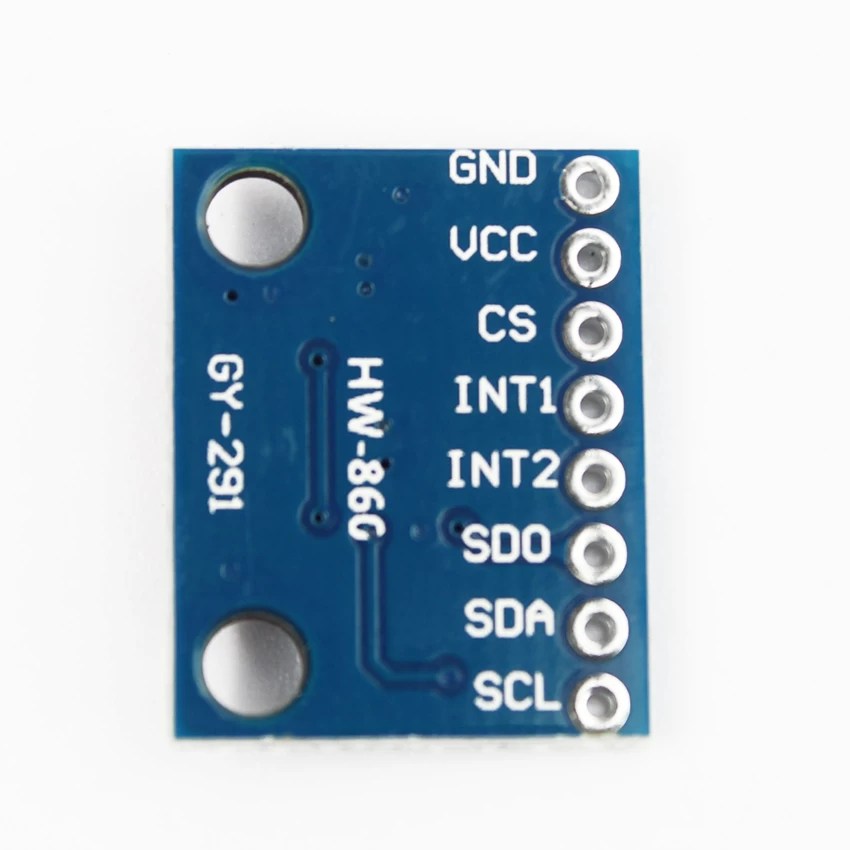

Pinouts of ADXL345 Module:

Interfacing with Arduino:
How to connect ADXL345 GY-291 with Arduino
