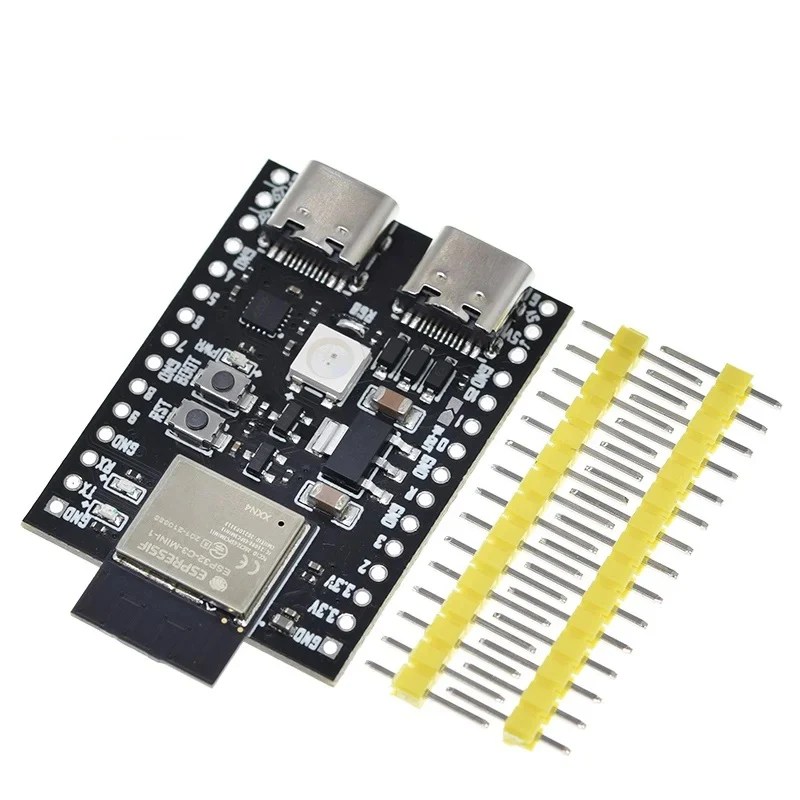

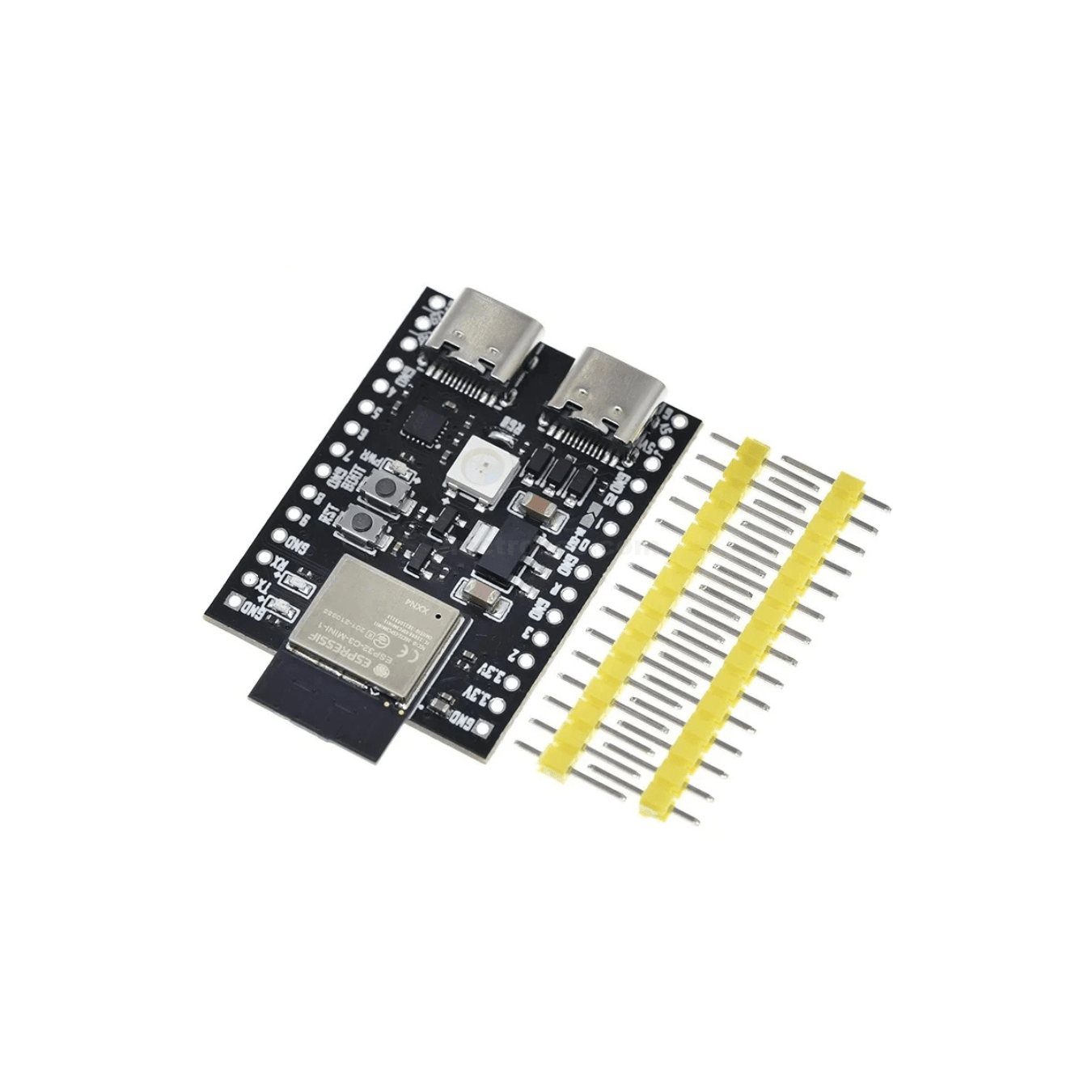

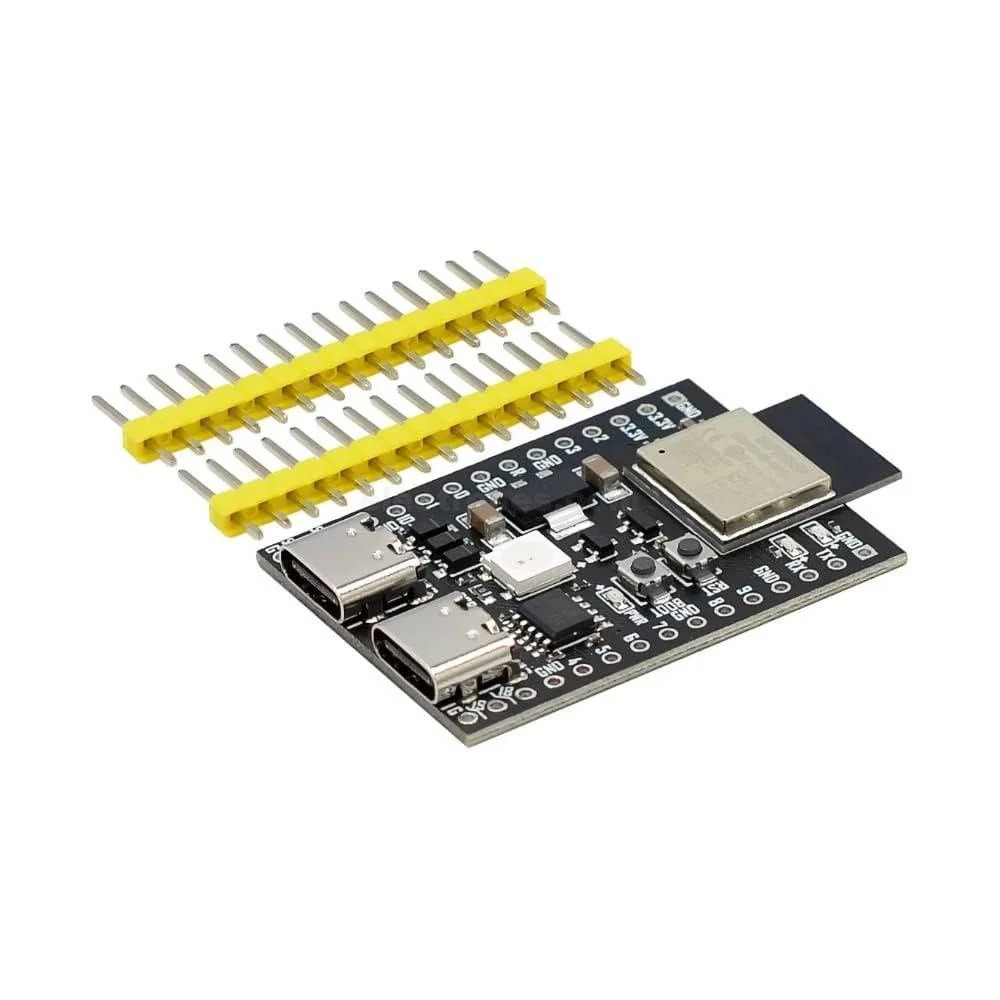

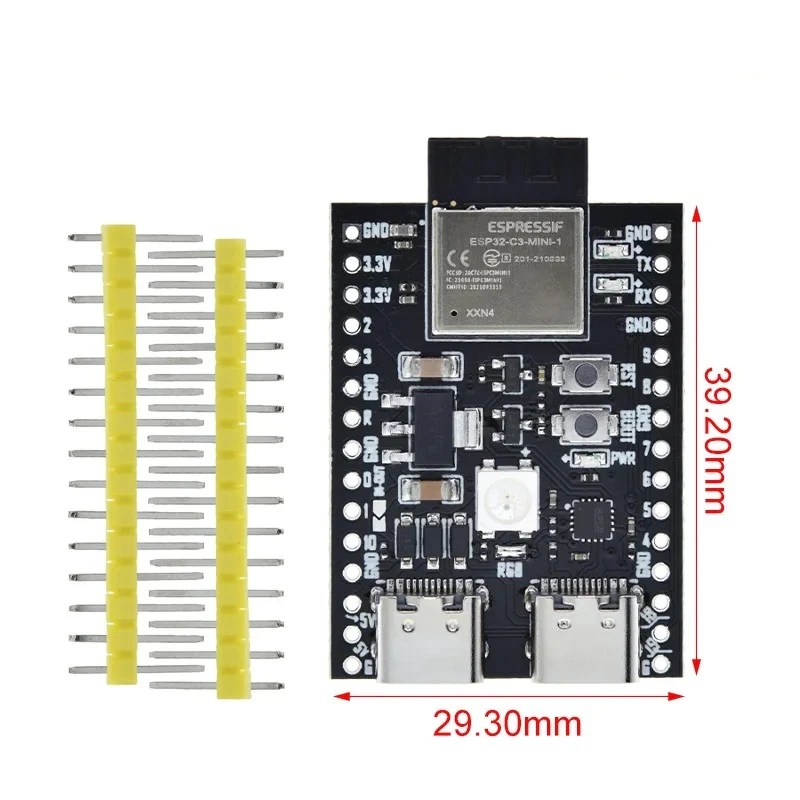

ESP32 / ESP32-C3 WiFi+Bluetooth 5.0 Internet Of Things Dual Type-C Development Board Core Board ESP32-C3-DevKitM-1 For Arduino

ESP32 / ESP32-C3 WiFi+Bluetooth 5.0 Internet Of Things Dual Type-C Development Board Core Board ESP32-C3-DevKitM-1 For Arduino
ESP32-C3-DevKitM-1 is an entry-level development board based on the ESP32-C3-MINI-1. This board integrates full Wi-Fi and Bluetooth LE functions. Most I/O pins of the ESP32-C3-MINI-1 module are divided into the pin headers on both sides of the board for easy connection. Developer can Connect ipherals either with jumper wires or mount ESP32-C3-DevKitM-1 on a breadboard. ESP32-C3-MINI-1 is a universal Wi-Fi and Bluetooth LE combination module that comes with a PCB antenna. The heart of this module is the ESP32-C3FN4, a chip with embedded flash of 4 MB.Since the flash is integrated into the ESP32-C3FN4 chip and not into the module, the ESP32-C3-MINI-1 has a smaller case size.
Features:

The link core board uses ESP32-C3FN4 chip and built-in ESP32-C3-MINI module module with 4 MB flash.
ESP32-C3 It is good to use it as a microcontroller with wifi and bluetooth functions. Most applications do not use wifi and bluetooth.
Innovative digital signature module and HMAC module to ensure device jdentity security.
ESP32-C3-MINI-1 is a general-purpose Wi-Fi and Bluetooth low energy (Bluetooth LE) module with small size and rich peripheral interfaces, which can be used in smart home, industrial automation and other fields.
ESP32-C3 supports secure boot based on RSA 3072 algorithm and flash encryption based on AES-128-XTS algorithm to ensure secure connection of devices.

Description:

Wi-Fi
Support IEEE 802.11 b/g/n protocol.
Supports 20 MHz and 40 MHz bandwidths in the 2.4 GHz band.
Support 1T1R mode with data rate up to 150 Mbps.
Wireless Multimedia (WMM).
Frame aggregation (TX/RX.A-MPDU, TX/RXA-MSDU).
Immediate Block ACK.
Fragmentation and defragmentation.
Transmit opportunity (TXOP).
Beacon automatic monitoring (hardware TSF).
4 X Virtual Wi Fi interface.
Support Infrastructure BSS at the same time Station mode, SoftAP mode, Station+SoftAP mode.
Formula and hybrid mode
Please note that ESP32-C3 series chips scan in Station mode
During tracing, the SoftAP channel will change simultaneously
Antenna diversity
802.11 mc FTM
Support for external power amplifiers
Bluetooth
Bluetooth LE: Bluetooth 5
Bluetooth mesh
High power mode (18 dBm)
Rate support 125 Kbps, 500 Kbps, 1 Mbps,2Mbps
Advertising Extensions
Multiple Advertisement Sets
Channel Selection Algorithm # 2
Wi Fi and Bluetooth coexist, sharing the same antenna

SECURITY MECHANISM

Secure Boot
Flash encryption
4096-bit OTP, up to 1792-bit available
Cryptographic hardware accelerators: AES- 128/256 (FIPS PUB 197)
Access rights management
SHA accelerator (FIPS PUB 180-4)
RSA Accelerator
Random number generator (RNG)
HMAC
Digital signature

Package include:
1 x ESP32-C3 module
2 x row headers
