Heavy-duty stainless steel spoke sets are crucial for building high-power 17-inch or 18-inch electric bike wheels, as they must withstand intense motor torque. Because hub motors have large diameters, standard bicycle spokes are too long; you need specialized, shorter, and thicker spokes (typically 10-gauge or 12-gauge). Upgrade your electric bike’s wheel set with our stainless steel spokes and nipples. High strength for Honda CD 70cc & 125cc models.
Specifications:
Material: Stainless steel
Color: Silver
Adapted to: Electric Bike Hub/Spoke Motor
Model: 100cc Honda Prider
Combination sales quantity: 36Set Spokes+ Nipples
High-quality compatibility and practical performance
High Strength
Size: 17 inch (10.5cm) or 18 inch (11.5cm)
Core Requirements for Hub Motor Spoke Sets
Common Gauge Sizes: Use 10G (3.2mm) or 12G (2.6mm) thick spokes. Standard 14G bicycle spokes will snap under the strain of a 1000W–3000W electric motor.
Standard Quantity: Choose 36 pieces per set (including matching high-strength nipples), which matches the 36-hole count standard for most 17/18-inch motorcycle-style rims and e-bike hub motors.
Material: Ensure the set is made from high-strength stainless steel to prevent Rusting and fatigue over time.
How to Find Your Exact Spoke Length
Because hub motor casings vary greatly in size (e.g., 1000W vs 3000W QS motors), there is no single “one-size-fits-all” length for a 17″ or 18″ rim. You must calculate the length using three measurements:
Hub Flange Diameter: The distance from one spoke hole to the opposite hole on the motor casing.
Effective Rim Diameter (ERD): The inner diameter of your 17″ or 18″ rim plus the thickness of the rim bed.
Lacing Pattern: Most heavy-duty hub motors on small rims require a 1-cross or 0-cross (radial) pattern because the short distance prevents traditional 3-cross lacing

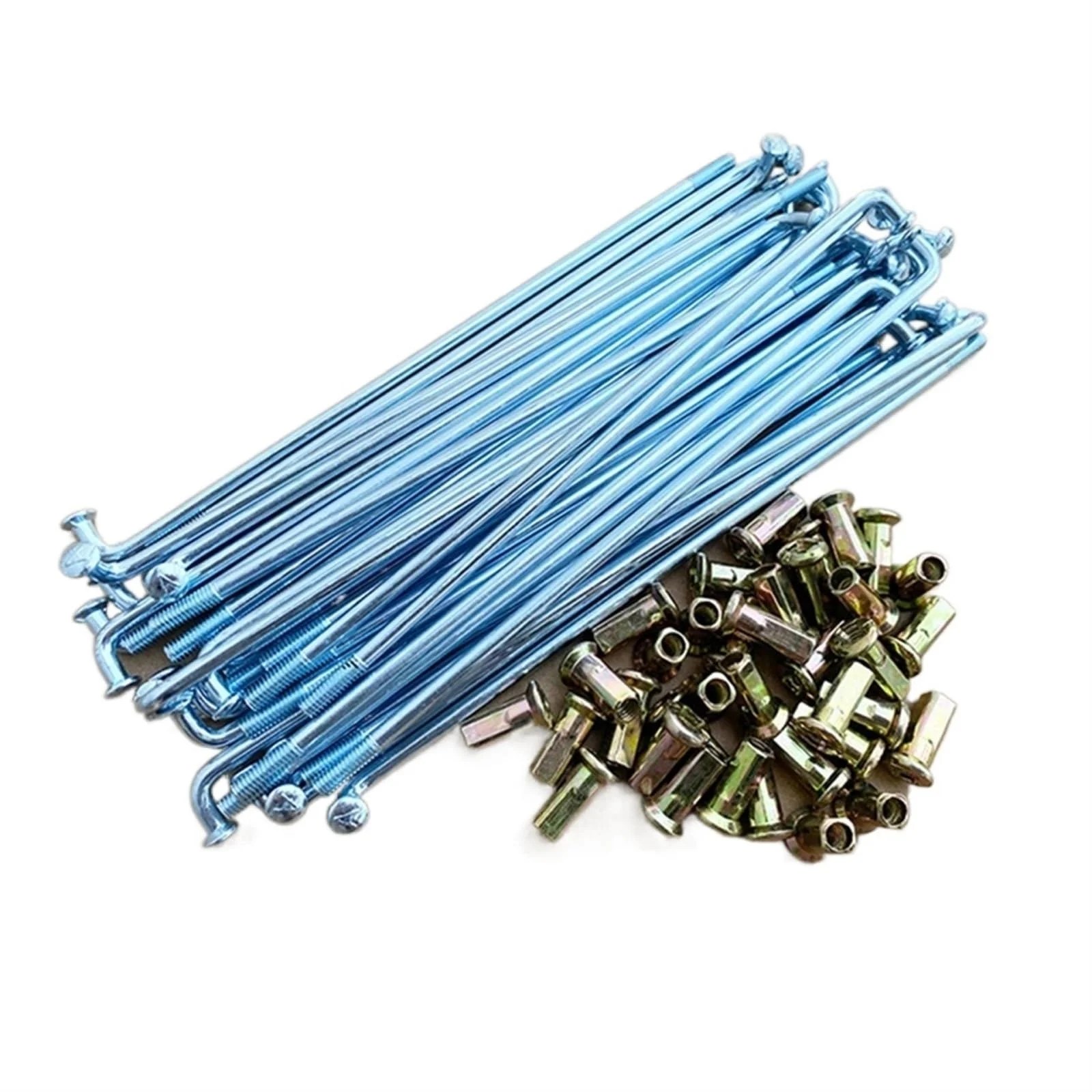

Package Includes:
36pcs 17/18-inch spokes
36pcs screwed nipple
