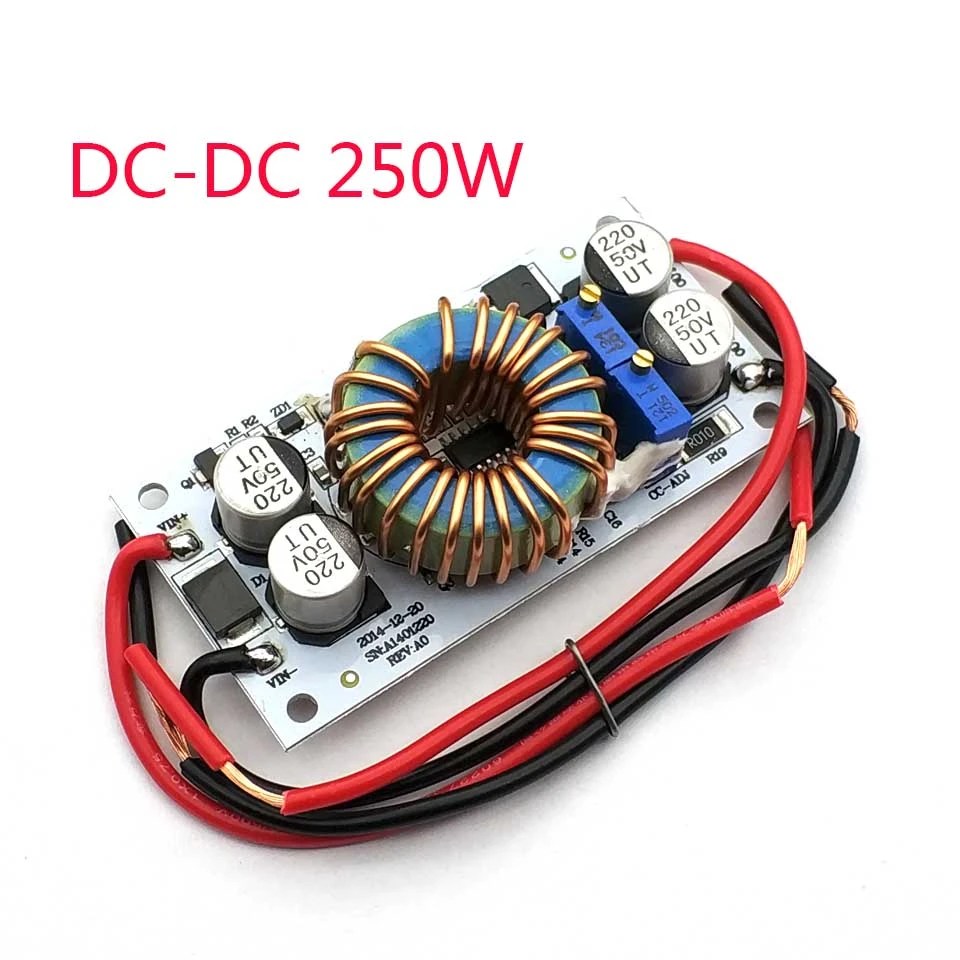

DC-DC Boost Converter Constant Current Mobile Power Supply 10A 250W LED Driver
Description:
Module name :250W boost constant current module
Module properties: non-isolated step-up module (BOOST)

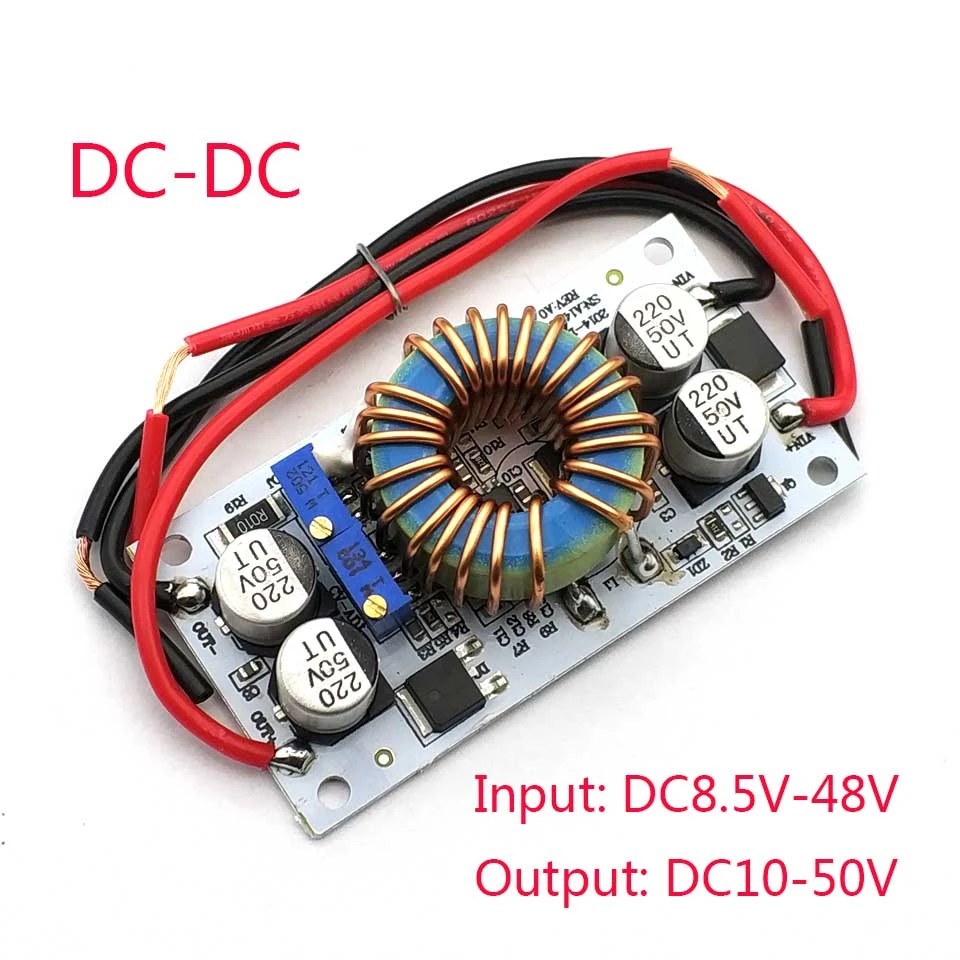

Input voltage: DC 8.5V-48V
Input current: 10A (MAX) exceeds 8A please enhance heat dissipation
Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 10-50V continuously adjustable
Constant range: 0.2-8A
Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 96%
Overcurrent protection: Yes
Input reverse polarity protection: Yes

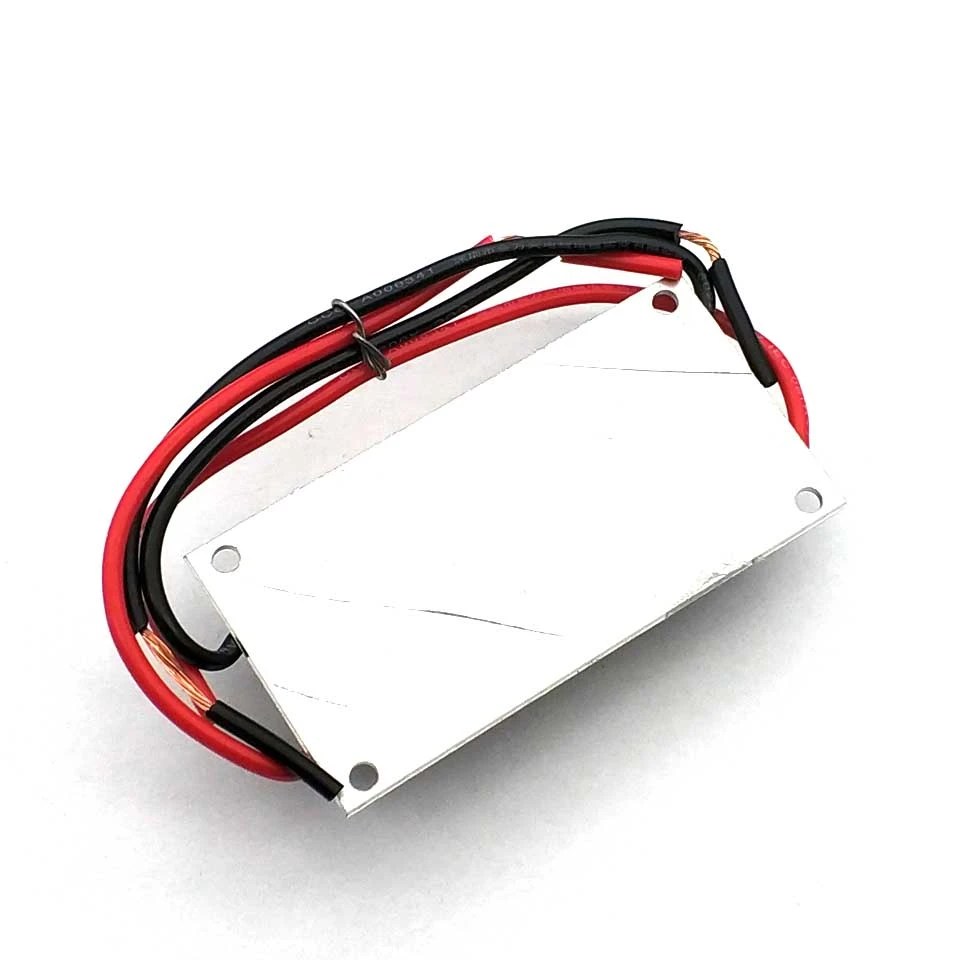

Installation: 4 nos. 3mm screw holes
Connection method: Connection Output

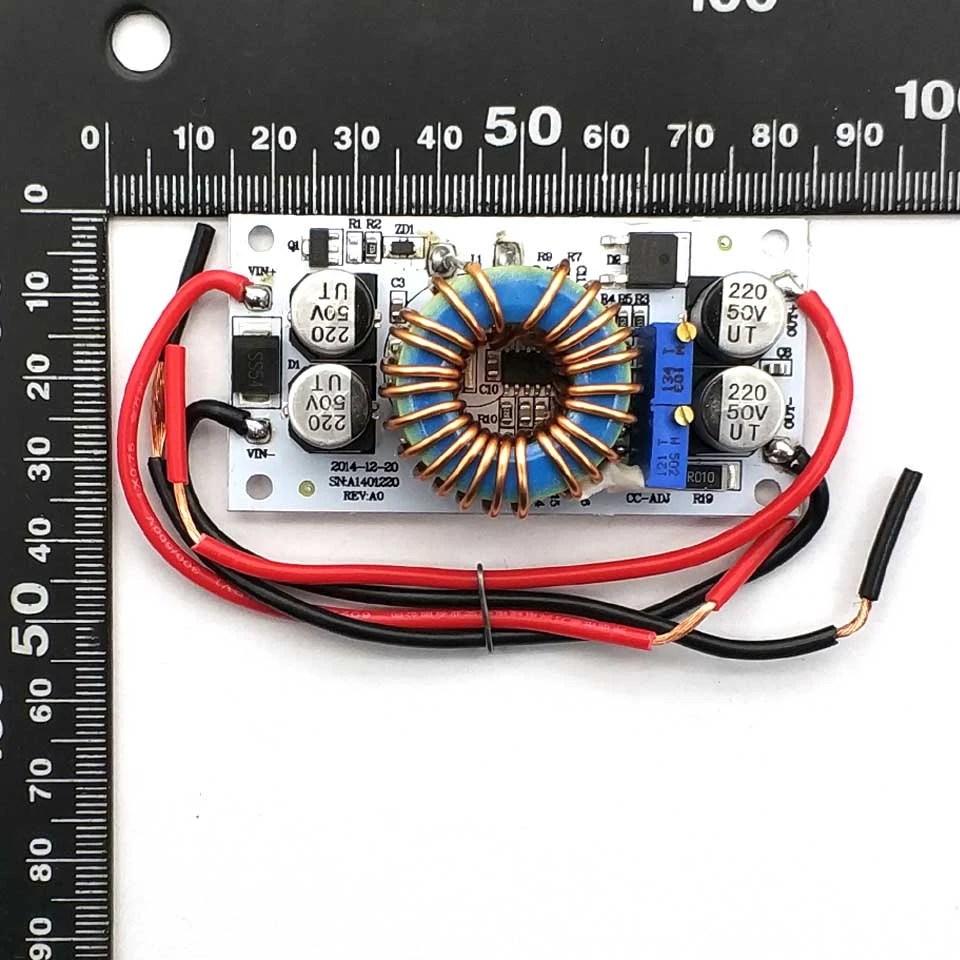

Module size: Length 70mm width 36mm height 13mm
Single module: 65 g
Applications:
DIY power supply, 12V input can give adjustable output of 12-50V.
The power supply for your electronic device, to provide voltage according to your system.
Portable car power supply for your laptop, PDA or a variety of digital products supply.
DIY mobile notebook power supply
Solar panel regulator.
To charge battery, rechargeable lithium batteries.
Driving high-power LED lights.
Package included:
1 Pc 250W DC-DC Boost Converter Adjustable 10A Step Up Constant Current Power Supply Module
Note:
The input voltage should not be lower than 10V. If the input voltage is too low, the power supply will be damaged.
The input/output voltage and current must not exceed the maximum value during operation to avoid damage to the power supply.
When working for a long time, ensure ventilation and heat dissipation to extend the life of the power supply.
