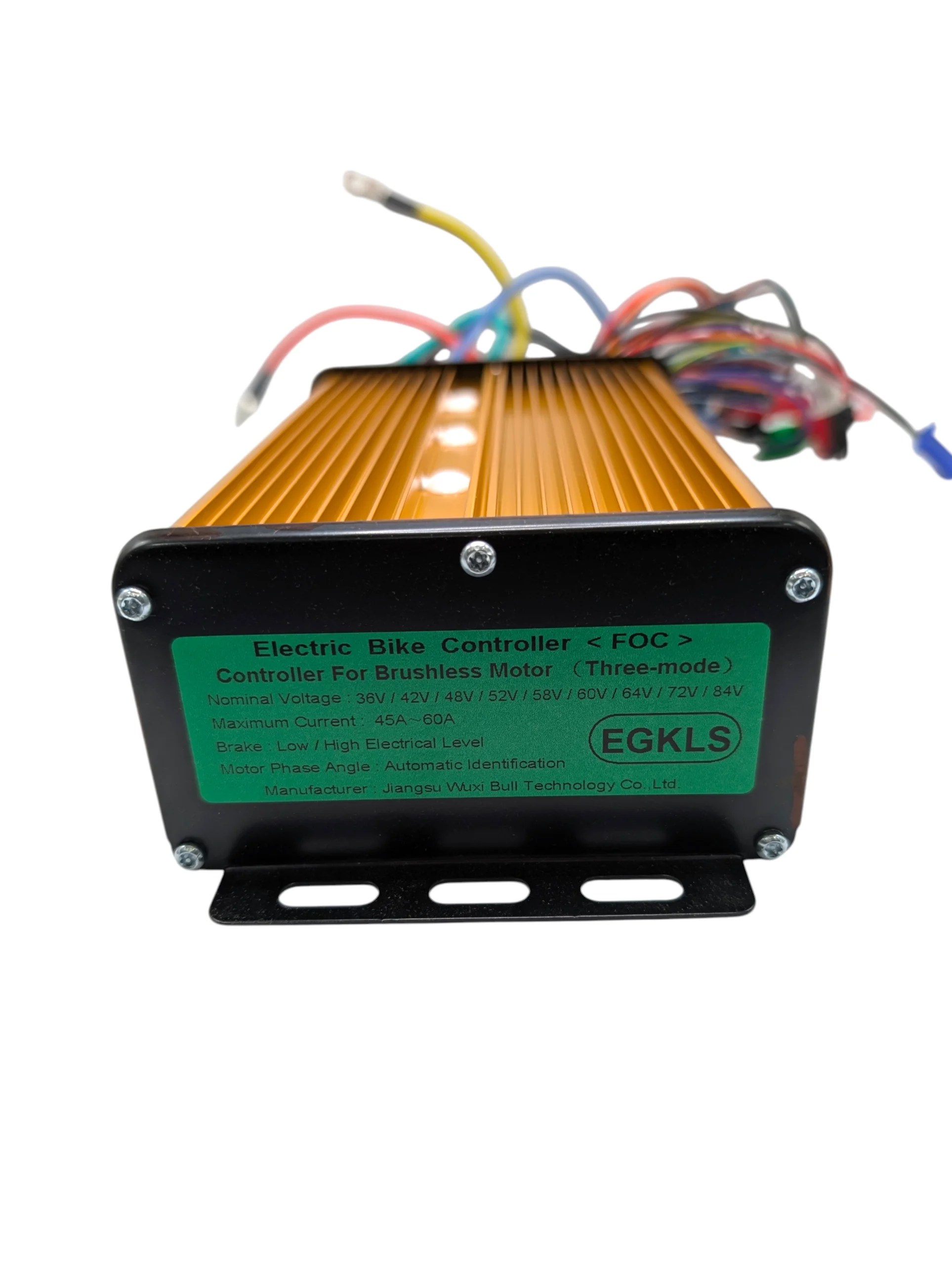

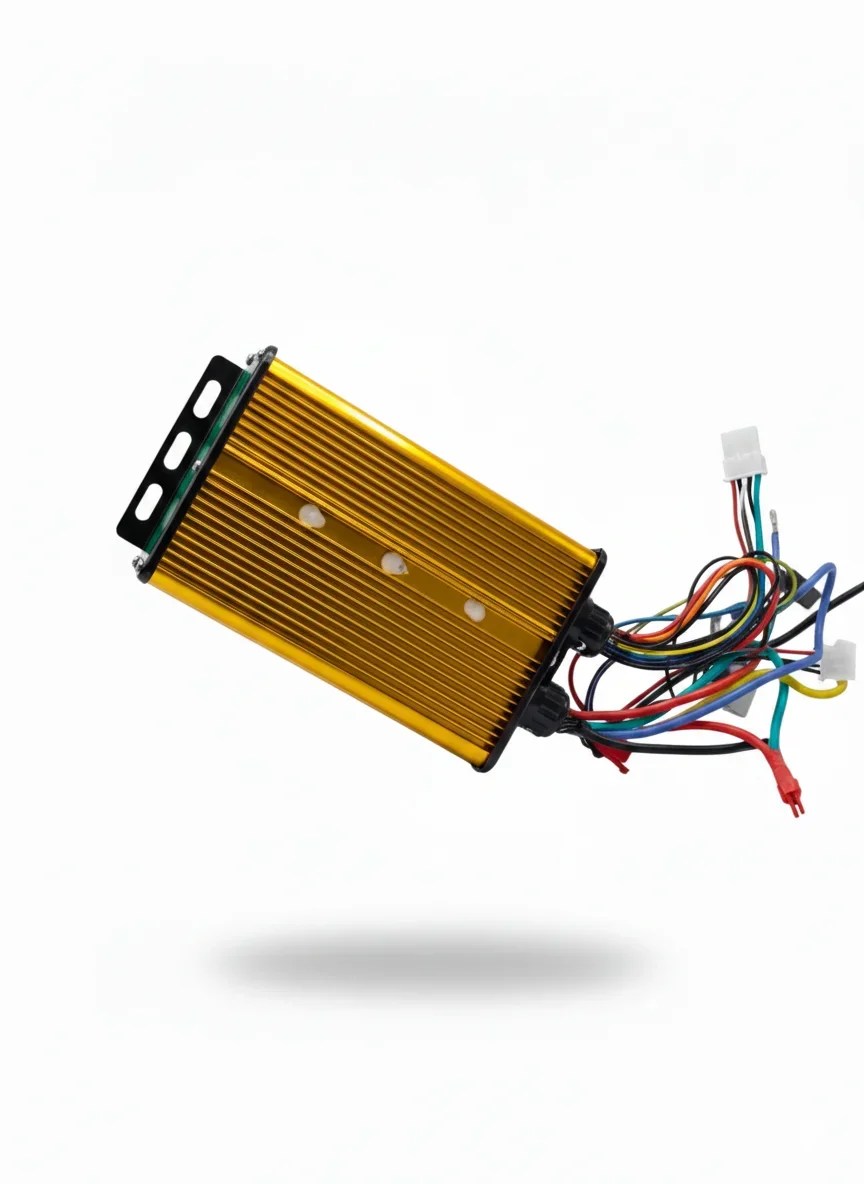

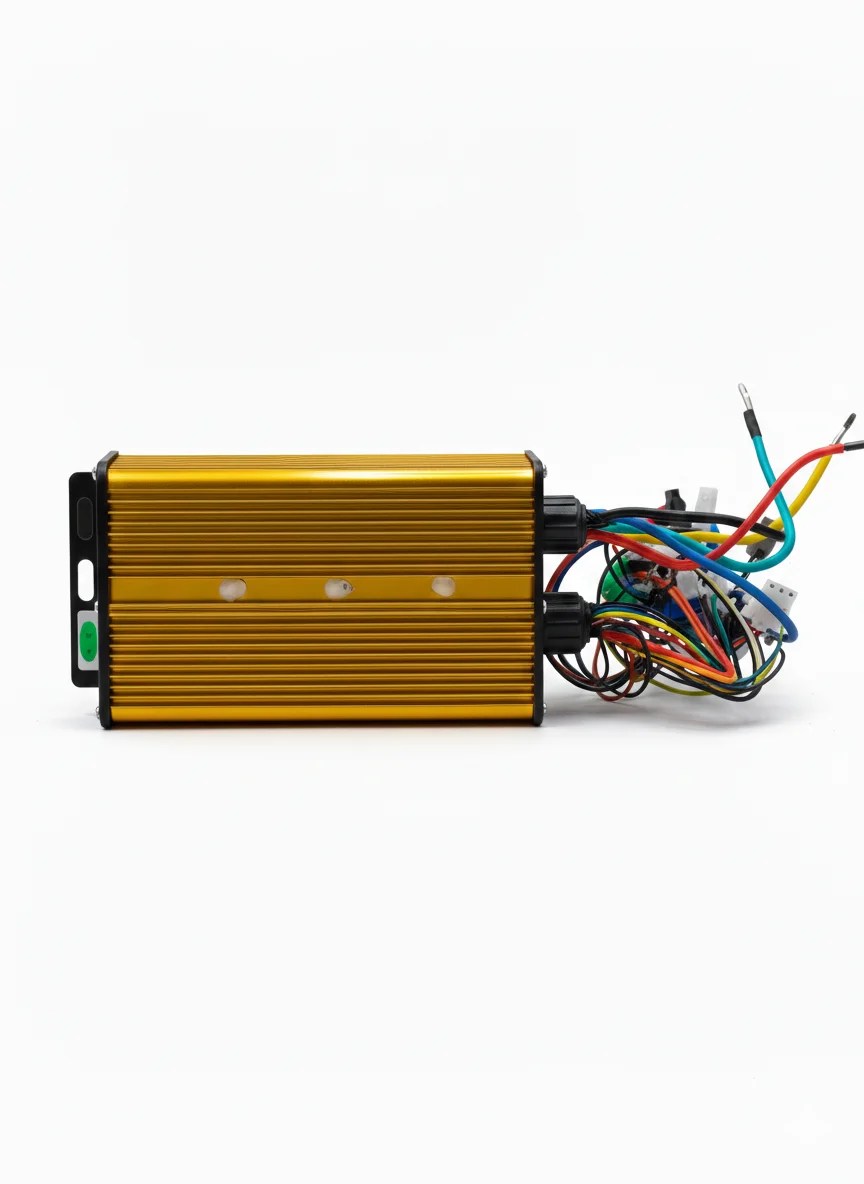

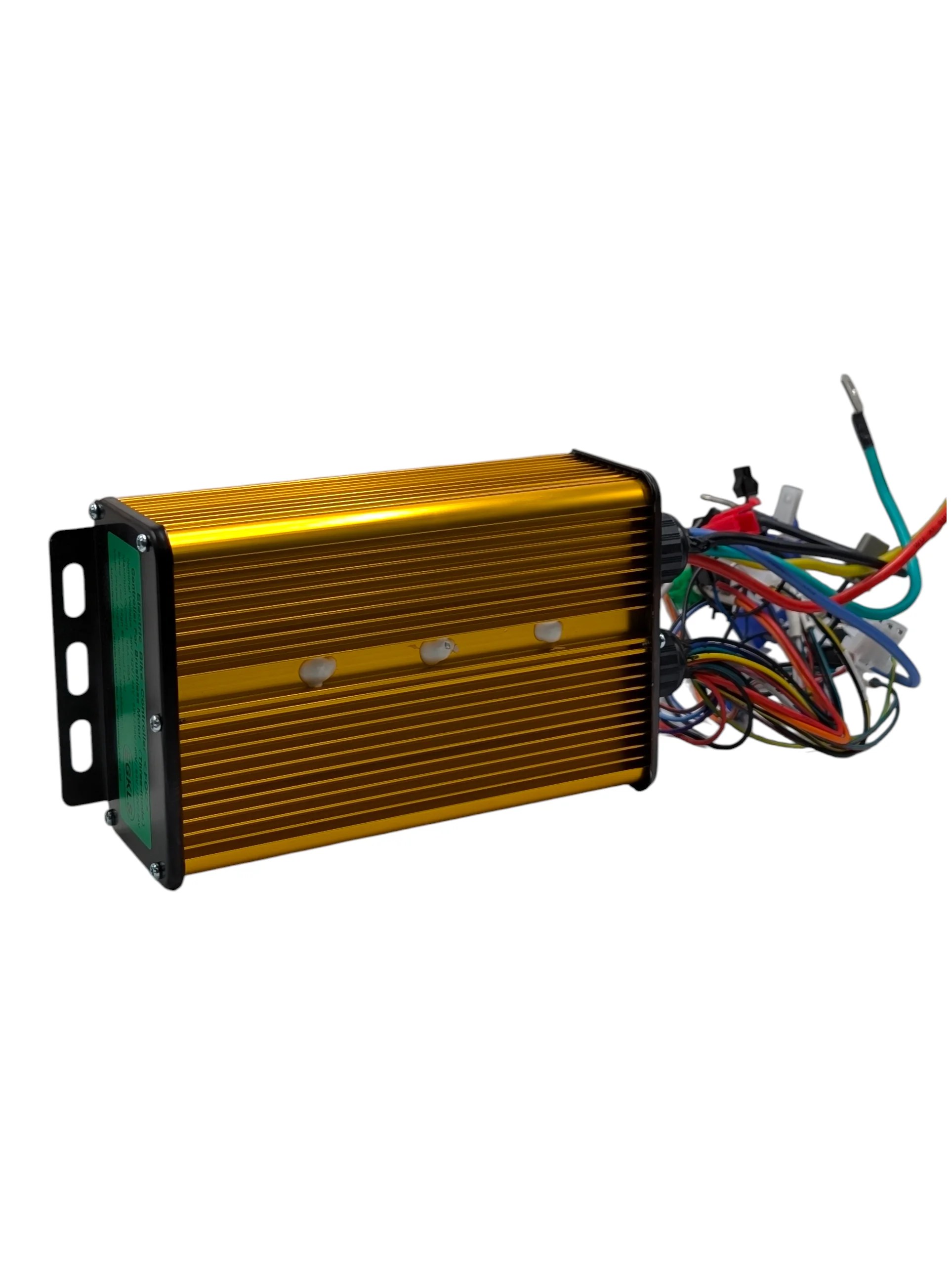

DC 36-72V 45A-60A Brushless Motor Intelligent Sine Wave Controller for E-bike Scooter Electric Bicycle
Description:
The DC 36–72V 45–60A Brushless Motor Controller is a high-power control unit designed for electric bicycles, e-scooters, and other light electric vehicles. Supporting a wide voltage range and high current output, it delivers strong acceleration, stable speed control, and efficient power management for brushless DC (BLDC) motors.
Built with high-quality MOSFETs and an aluminum alloy heat-dissipation housing, this controller ensures reliable performance even under heavy load and high-speed operation. It is ideal for high-torque and high-power motor systems, making it suitable for performance upgrades or replacements.
Specifications:
Brand new
Size: approx. 103*70*35mm
Rated Voltage: 36-84V
Rated Current: 45A-60A
Power Rating: 2000-3000W
Matching Motor: Brushless motor
Throttle Voltage: 1V to 4.2V
Phase Angle: 60/120 degrees
Brake Level: Low /High
Heat Dissipation: Natural cooling
Ambient Temperature: -20 degrees to 50 degrees
Protection Grade: IP55
Features:
Wide Voltage Compatibility (36–72V DC) – Supports multiple battery systems
High Current Output (45–60A) – Powerful acceleration and torque
Brushless DC Motor Support – Smooth and efficient motor control
Hall Sensor Compatible – Precise motor timing and improved efficiency
Smooth Throttle Response – Stable speed and riding comfort
Multiple Protection Systems – Over-current, over-voltage, low-voltage cutoff, short-circuit
Excellent Heat Dissipation – Aluminum alloy casing for thermal stability

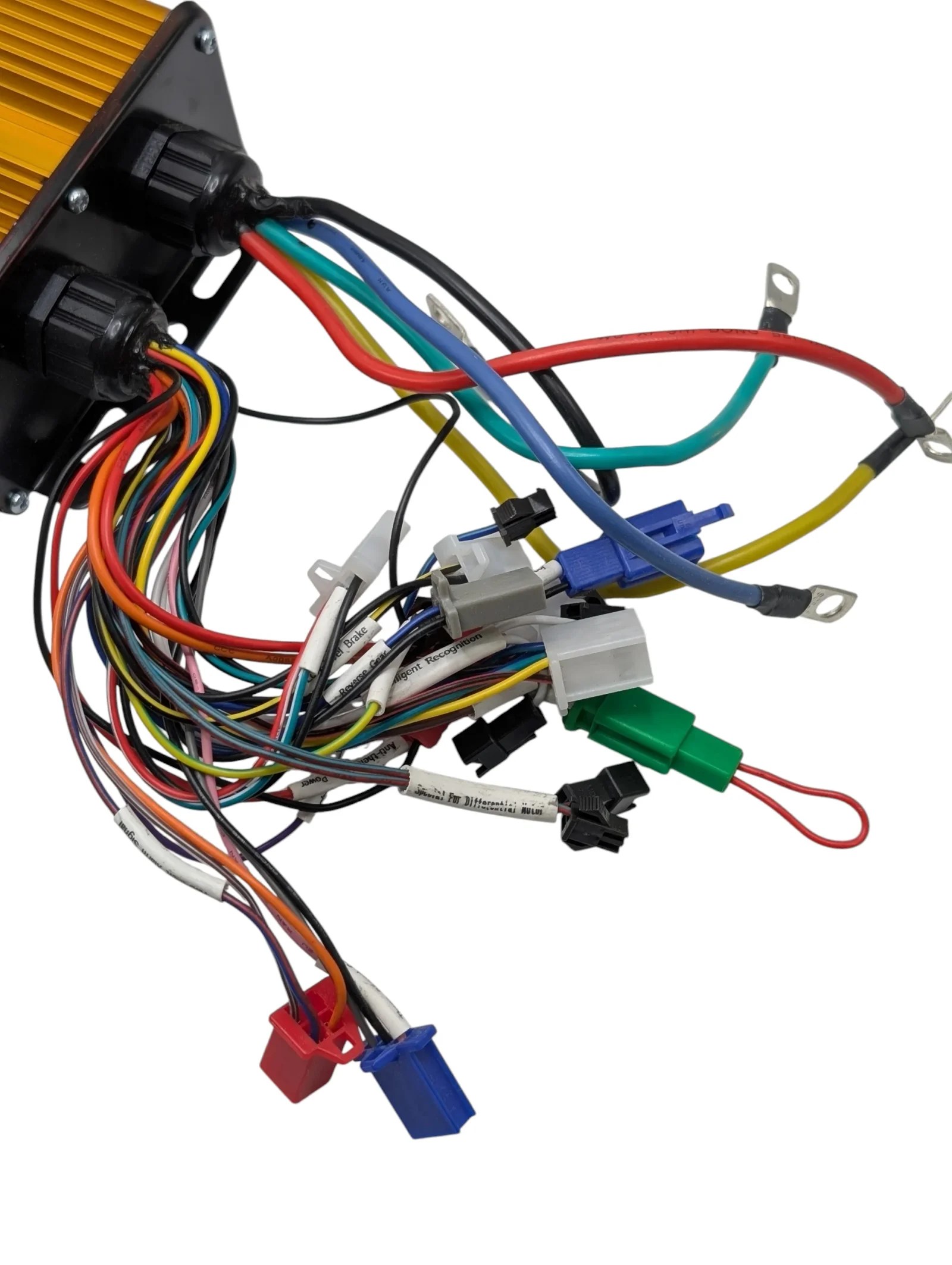

Standard Wiring Interface – Easy installation and maintenance
Low Noise Operation – Quiet and efficient performance
Operation Notice:
Connect power, motor, and throttle, and power lock, but not connect the Hall lines. Connect the adaptive learning wire.
Switch on the power lock, roll the throttle. If the motor works well, connect the Hall lines.
If the motor rolling reversely, disconnect the adaptive learning wire and check the motor again, before connecting the Hall wire.
Package Included:
1 x Intelligent Sinewave Motor Brushless Controller
Note:
Please allow 0-1cm size errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
