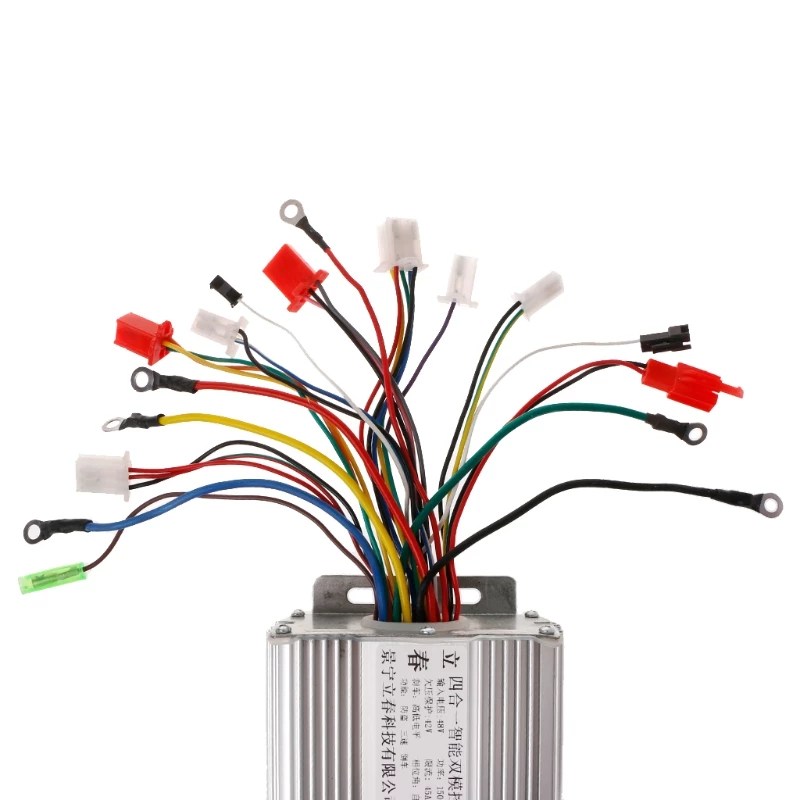

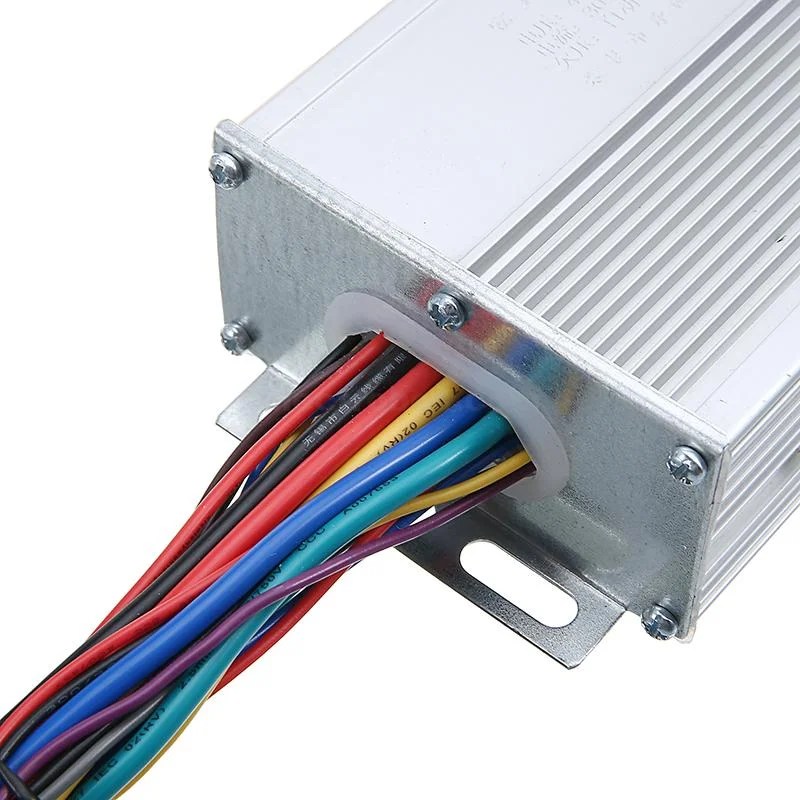

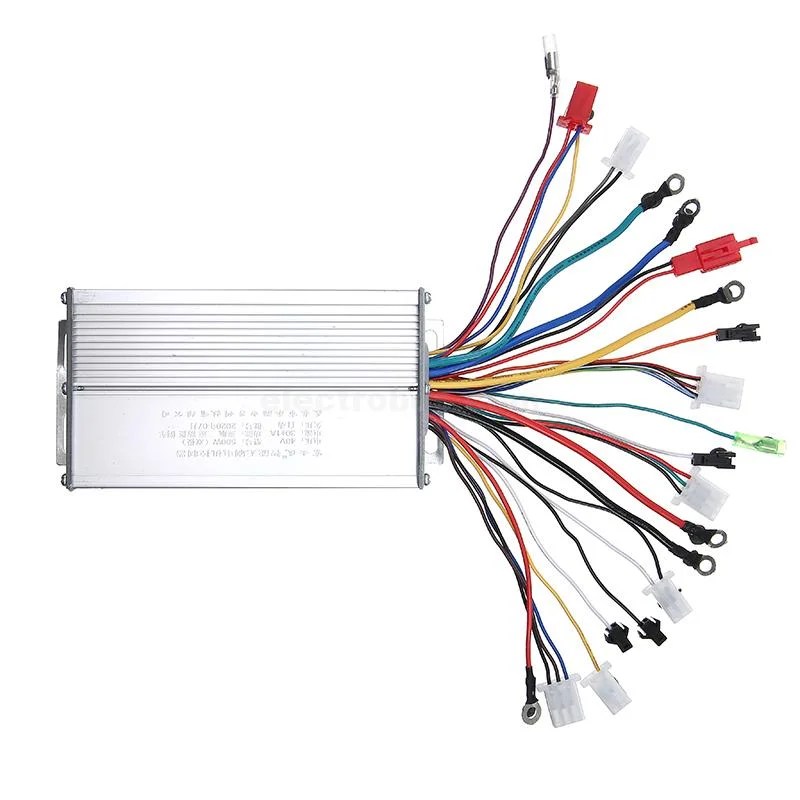

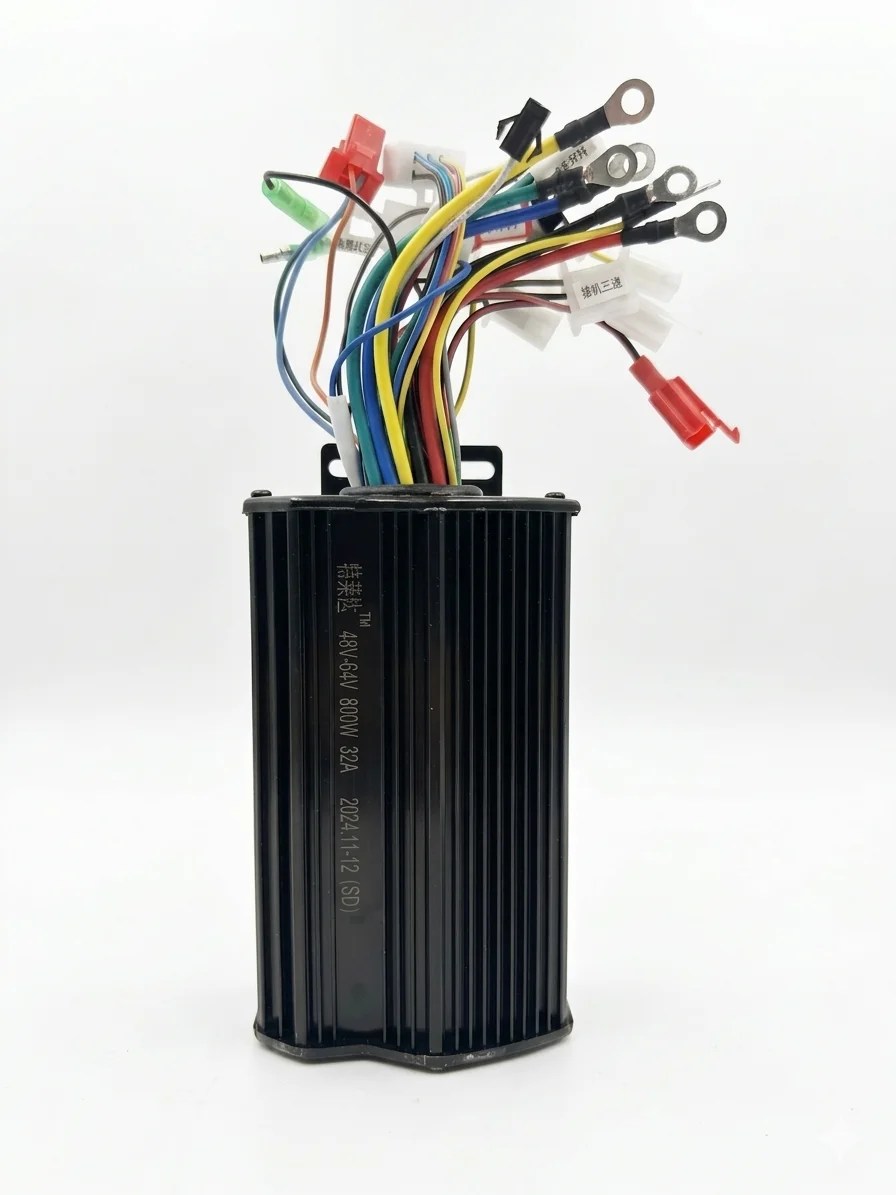

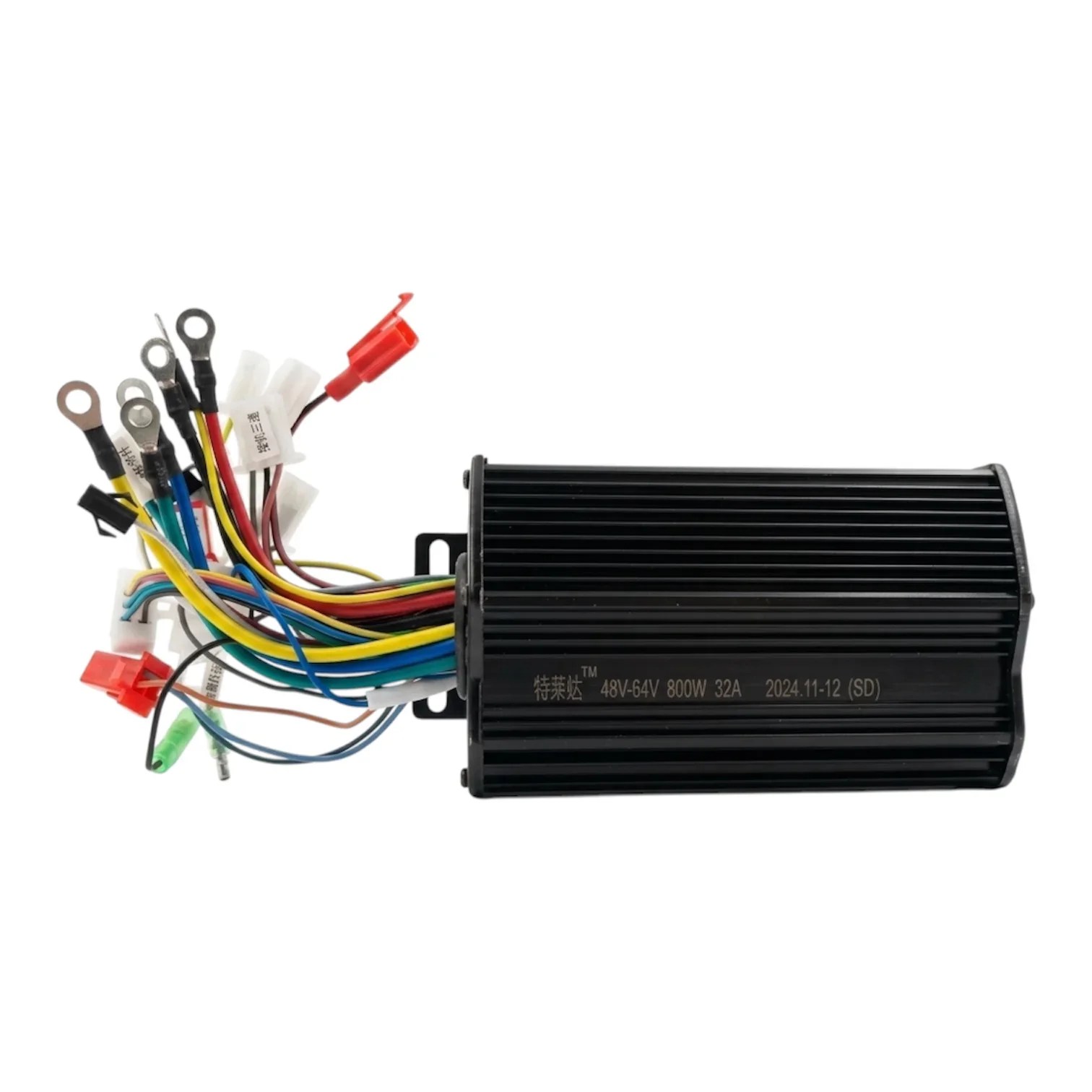

DC 48V 800W Brushless Motor Controller for E-bike Scooter Electric Bicycle
Description:
Waterproof designed brush-less motor controller for outdoor application
Only those 8 wires(3 phase-cables & 5 hall-cables) DC brushless motor that can work with this controller, other brushless motors are not compatible.
It has 4 groups necessary cables(power cables, E-lock cables, Throttle-cables & Motor-phase cables), when hook up these 4 groups cables, the E-bike can run normally. Besides, these controllers have other optional functions, users can hook them up according to your applications.
Three-speed Anti- theft; EBS, Cruise.
Specifications:
Brand new
Size: approx. 150*80*40mm
Rated Voltage: 48V-64V
Rated Current: 32A
Rated Power: 800W
Matching Motor: brushless motor
Under Voltage Protection: 41V
Throttle Voltage: 1V to 4.2V
Phase Angle: 60/120 degrees
Brake Level: Low /High
Heat Dissipation: Natural cooling
Ambient Temperature: -20 degrees to 50 degrees
Protection Grade: IP55
Features:
Motor brushless controller for electric bicycle & scooter.
12pcs MOS tubes.
Fine workmanship.
Easy to install.
Long service life.
Operation Notice:
Connect power, motor, and throttle, and power lock, but not connect the Hall lines. Connect the adaptive learning wire.
Switch on the power lock, roll the throttle. If the motor works well, connect the Hall lines.
If the motor rolling reversely, disconnect the adaptive learning wire and check the motor again, before connecting the Hall wire.
Package Included:
1 x Motor Brushless Controller
Note:
Please allow 0-1cm size errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
