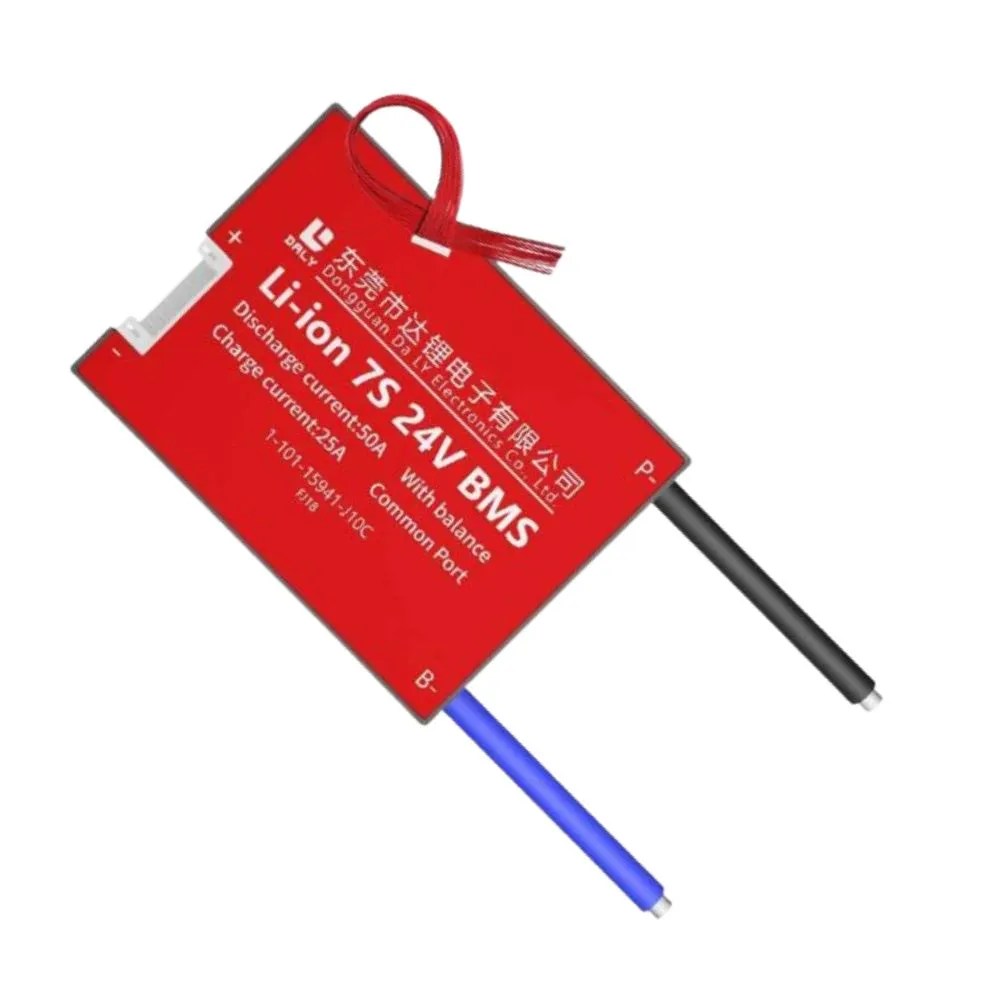

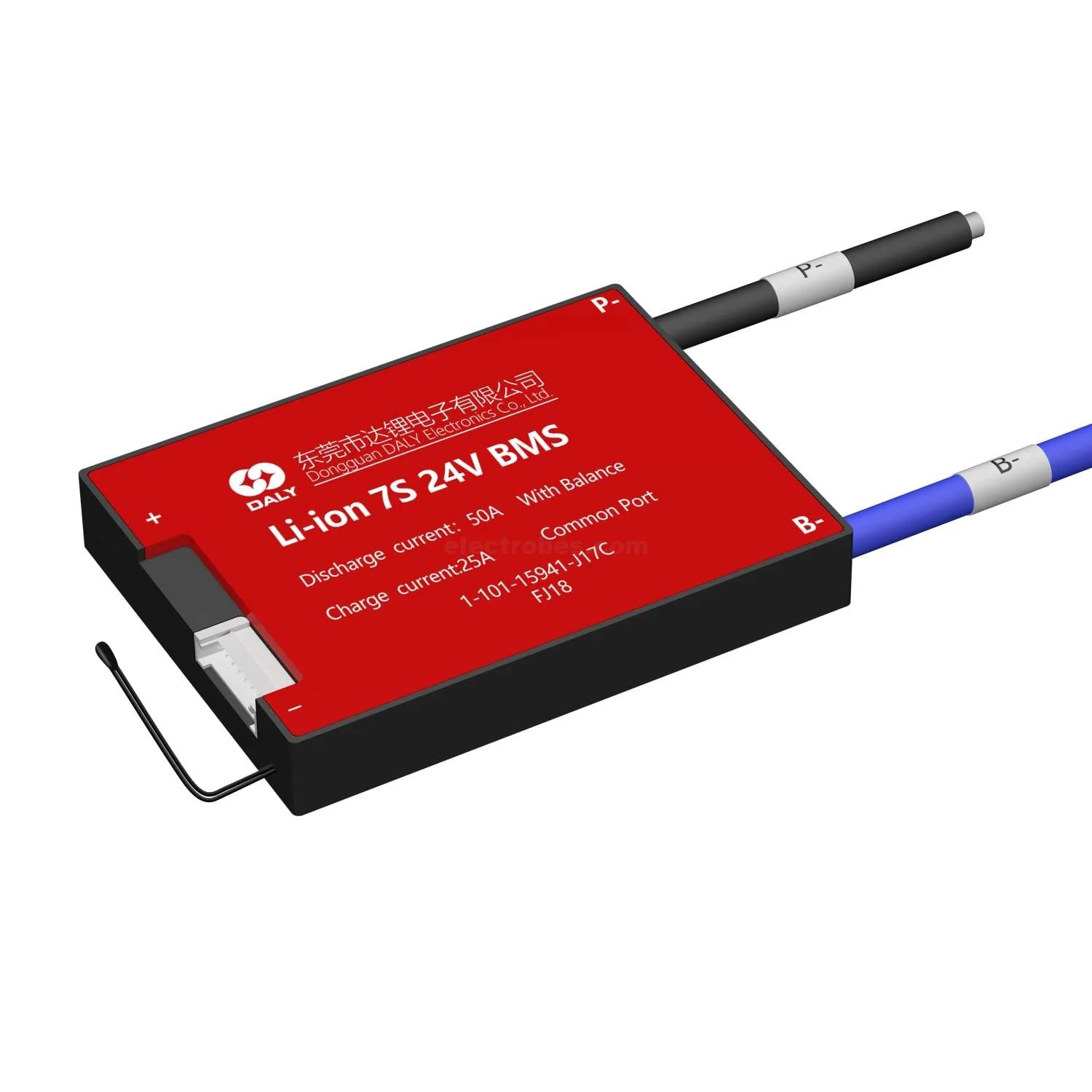

DALY BMS Li-ion 7S 24V 50A BMS Battery Management System for 18650 Lithium ion Battery Pack With Balance Protection
DL 7S 24V 50A PCB is used for 7 series Li-ion 24V battery pack. The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc. BMS manufactured by  high quality Mos and IC imported . Keep your battery long cycle service life time.
Introduction about this BMS:Â
This is a 7S fixed configuration basically it cannot be used for any other battery pack configurations. Because it is only a Lithium ion battery management system only. As a result that they cannot be used for LiFePo4 and Li-Metal or LTO batteries. It is strictly for Li-Ion battery packs only.
Over charge and over discharge protection:
The Li-ion battery pack will stop charge after the cell voltage reaches 4.25V and stop discharge when its voltage reaches 3V.
Temperature Protection:
In high temperatures the BMS ranges from 70℃ discharging battery protection.
Meanwhile in low temperatures the BMS ranges up to -20℃ battery protection.
Short circuit protection:
When there is a defect or damage to the circuit at same time the BMS will shut down the whole Battery.
Certifications Approved:
ISO/ FCC/ RoHS/ PSE and CE APPROVED
Applications:
Solar and RV, Electric bikes and Skateboard including camping boats and Power tools, Lawn moving and household energy storage systems etc.
What you will get:
7S Li-ion 50A rated voltage with 24V BMS
Balanced wire sense cable (8 Wire sense cable with connector)
Instruction Manual
Conclusion:
Most important that it is only a waterproof BMS available in lithium industry.
This BMS is also for all kinds of lithium-ion cells including 18650 ,21700,36500 cylindrical cells and prismatic cells.
Package Includes:
1 x 7S 24V 50A BMS
1 x Connecting Cable
